Column LED Billboard-Outdoor Advertising Street LED Screen Solutions
What is a Column LED Billboard?
A Column LED Billboard (also known as a Unipole LED Billboard or Single Pillar Digital Signage) is a large-format outdoor display mounted on a reinforced steel structure for maximum visibility. These freestanding digital landmarks are engineered for high-traffic areas like highways and major intersections, offering superior brightness and weather-resistant durability.
As a premier DOOH (Digital Out-of-Home) solution, these pylon-mounted LED screens provide unmatched long-distance visual impact, making them the ultimate choice for large-scale outdoor branding and roadside advertising.
Key Features
Up to 6500 nits, auto-dimming sensor for day/night adjustment.
Dustproof & waterproof cabinet for all outdoor environments.
4G/WiFi cloud platform, manage 100s of screens simultaneously.
Hoop-mount or weld-mount, front & rear maintenance access
Low power consumption, optional solar-powered variant
Integrates with CCTV, 5G, env. sensors & traffic systems
Which Column LED Billboard is Right for Your Project?
Different installation environments require different LED pole screen configurations. Factors like viewing distance, installation height, and power supply directly affect performance and ROI.
Installation Height: 3–5m
Brightness: 5000–6500 nits (auto-adjust)
Control: 4G / WiFi remote update
Why: Better detail for pedestrians, higher ad conversion
Installation Height: 5–8m
Wind Resistance: ≥ 30 m/s
Structure: Hoop / bracket mount
Why: Larger pitch improves readability at speed
Power: Solar + lithium battery
Design: Slim / curved aesthetic
Operation Time: 8–12 hrs/day
Why: No cabling, easier deployment in remote areas
Integration: 5G · CCTV · sensors
Management: Cloud CMS cluster control
Protection: IP65–IP67
Why: Centralized control across multiple city nodes
Outdoor Column LED Billboard
Best Pixel Pitchs for Outdoor Advertising
| Pixel Pitch | Best Viewing Distance | Recommended Advertising Use |
|---|---|---|
| P4 | 4m+ | High-end storefronts, mall entrances, close-view outdoor ads |
| P5 | 5m+ | Retail facades, city commercial advertising |
| P6 | 6m+ | Building advertising, urban roadside screens |
| P8 | 8m+ | Large outdoor billboards, roadside advertising |
| P10 | 10m+ | Highway billboards, long-distance outdoor ad display |
Small pixel pitch screens are ideal for close-range commercial advertising. Large pixel pitch screens are better suited for long-distance and large-scale billboards. When choosing a screen, consider viewing distance, budget, installation location, and content type.
Installation Methods & Process
Column LED Billboard Control Methods
Our pole-mounted LED billboards support top control systems like NovaStar, Colorlight, and Linsn for smooth and reliable performance. You can choose from a wired, wireless, or cloud-based remote control to manage your content from anywhere. Whether you need synchronous playback for live video or asynchronous scheduling for rotating ads, our displays ensure high refresh rates and stable 24/7 operation for any outdoor environment.
Stable and reliable for permanent installations. Usually uses Ethernet or fiber connections to control multiple screens centrally.
Convenient for temporary or hard-to-wire locations. Can use 4G/5G, Wi-Fi, or RF signal for real-time content updates.
Manage content from anywhere via a web platform or app. Supports scheduling, content rotation, and multi-screen management.
All screens display the same content at the same time. Ideal for large-scale campaigns, video walls, or multi-screen advertising along streets.
Screens display different content independently or with scheduled delays. Suitable for multi-location campaigns or rotating ads on a single screen network.
Maintenance, Warranty & After-sales Support
Modular LED modules: swap individual tiles in under 10 minutes.
All connectors are waterproofed with standard plugs for easy replacement.
Heat sink + intelligent fan keep internals below 75°C continuously.
Lifetime technical support via email, WhatsApp, and remote login.
Spare parts stocked and dispatched within 48 hours.
Remote diagnostics via CMS platform—most issues solved without site visit.
Cabinet & structure: designed for 10+ year outdoor service.
Power supply: typically 3–5 year replacement cycle.
Regular cleaning: once every 3 months is recommended in dusty environments.
Bright spots / dead pixels: single module replacement covers 90% of cases.
Content not updating: reconnect the CMS and check 4G signal strength on the pole.
Brightness too low in sun: recalibrate auto-brightness sensor in settings
Budget reference & pricing guide
Configuration: Single-sided · standard cabinet
Control: WiFi / 4G basic
Power: Low consumption
Best for: Highways, arterial roads
Configuration: Single / Double-sided
Control: 4G cloud cluster
Specs: 6000 nits · IP67 · auto-dimming
Best for: Urban roads, commercial streets
Configuration: Single / Double-sided
Control: 4G / WiFi · cloud CMS
Specs: 6500 nits · IP67 · high refresh
Best for: Shopping streets, pedestrian zones
Prices are based on EXW Shenzhen and vary depending on cabinet size, steel structure, control system, and order quantity. Bulk orders (20+ units) typically receive 15–25% discount. Double-sided displays add approx. 40–60% cost. Solar-powered systems add $150–$300 per unit. Contact us for a detailed quotation and project-based pricing.
Past LED display for street advertising Projects
Discover how we help brands command attention. Our global success stories highlight the power of cutting-edge LED technology to drive audience engagement and maximize ROI. From highway billboards to commercial advertising LED screens, see how our customized solutions turn high-traffic locations into premium advertising assets.
Outdoor Advertising Display in Zambia
Screen Size: 4.8×1.92m
Pixel Pitch: P8
Outdoor LED Billboard in the Philippines
Screen Size: 4.8 m* 3.84 m
Pixel Pitch: P6
Advertising LED Screen in the US
Screen Size: 7.68×4.8m
Pixel Pitch: P5
Contact Excel LED Now!
Get a customized outdoor advertising pole LED screen solution with layout design and quotation within 24 hours.
FAQs
The price of a pole mounted LED billboard typically ranges from $300 to $1,800 per screen depending on pixel pitch, size, structure type, and control system. Double-sided and smart control systems increase the total cost.
This depends on the viewing distance.
For screens near pedestrian areas, P3 or P4 provides high-definition clarity.
For roadside billboards or roof-mounted displays where viewers are 50+ meters away, P8 or P10 is more cost-effective and efficient. The rule of thumb is: Minimum viewing distance (meters) ≈ Pixel Pitch (mm).
Yes. Professional outdoor advertising LED screens are rated IP65 or IP66, meaning they are fully waterproof and dust-tight. Quality displays also feature high-efficiency cooling fans or air conditioning (for massive screens) and use high-brightness LEDs (over 5500-7500 nits) to remain visible even under direct sunlight.
In most regions, yes. Local zoning laws and building codes regulate the size, brightness, and placement of digital signage to ensure road safety and prevent light pollution. We recommend consulting with a local contractor or your city’s planning department before installation.
Installation includes site survey, steel structure preparation, screen mounting, electrical connection, and system configuration. Most installations can be completed within 2–4 hours per screen depending on project conditions.
Yes. Many installations support single-sided or double-sided configurations. Double-sided LED billboards are commonly used for highways and intersections to maximize visibility from multiple directions.
Still have questions? Contact Excel LED for a customized church LED screen solution.
How to Maximize ROI with Outdoor LED Billboards in Modern Advertising
Choosing the right outdoor advertising LED screen is not only about price or pixel pitch. A suitable solution should match your advertising location, viewing distance, installation conditions, content needs, and long-term operating goals. Below is a simple step-by-step guide to help you select the right LED screen for your outdoor advertising project.
Why Outdoor LED Billboards Are Revolutionizing Advertising
Investing in Outdoor LED Billboards—specifically pole-mounted designs—is one of the most effective ways to capture attention in a digital-first world. Unlike traditional static signs, digital billboards offer a dynamic way to communicate with audiences.
However, high ROI (Return on Investment) doesn’t happen by accident. It requires a blend of the right technology, strategic placement, and data-driven content.

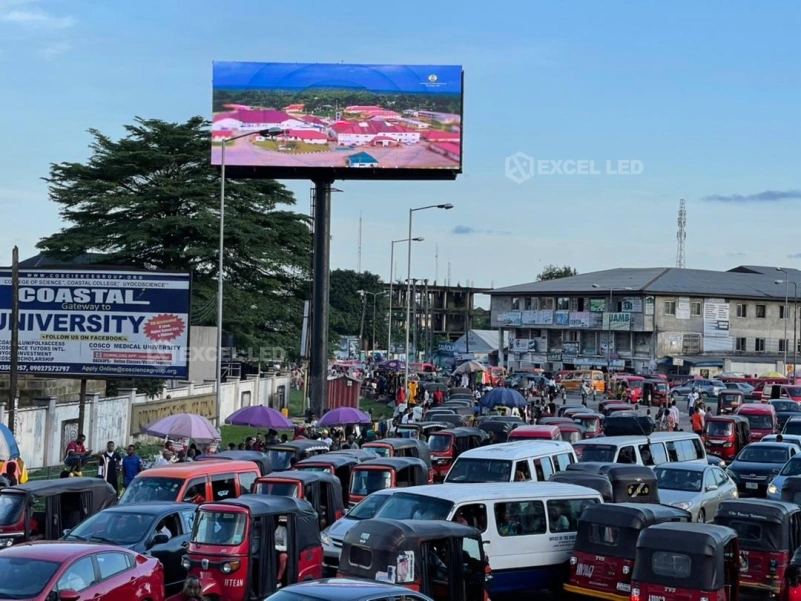

The Power of Location and Visibility
The most important factor for any outdoor advertisement is location. For pole-mounted LED displays, the advantage lies in height and clearance. To maximize ROI, you must consider the following:
Dwell Time:
High-traffic intersections are better than fast-moving highways because drivers have more time to look at the screen.
Angle of Incidence:
Ensure the screen is tilted or angled toward the primary line of sight. Research shows that digital billboards can increase brand awareness by up to 47% compared to static ads.
Obstruction-Free Zones:
Pole mounting allows you to lift the advertisement above trees, street lights, and other urban clutter, providing a 360-degree visibility advantage in busy commercial districts.
Choosing the Right Technical Specifications
Your hardware choice directly impacts your long-term costs and revenue potential.
Pixel Pitch (P3 to P10):
For roadside billboards, a P6 or P10 pixel pitch is usually sufficient, as the viewing distance is far. Choosing the right resolution prevents you from overspending on pixel density that the human eye cannot distinguish from 50 meters away.
Brightness and Auto-Dimming:
Outdoor screens must compete with direct sunlight. Look for displays with at least 5,500 to 7,500 nits. Using auto-dimming sensors ensures the screen stays bright during the day but softens at night, saving energy and satisfying local light pollution laws.
Energy Efficiency:
Modern LED panels now use “common cathode” technology. This can reduce power consumption by up to 30%, which significantly lowers your monthly utility bills and shortens your payback period.
Smart Content Strategy: Dayparting and Relevance
The beauty of digital advertising is flexibility. You can sell the same space to multiple clients or change your message based on the time of day. This is known as Dayparting.
Pro Tip: A restaurant can advertise breakfast specials from 7:00 AM to 10:00 AM and switch to dinner promotions in the evening. According to the Outdoor Advertising Association of America (OAAA), consumers are 48% more likely to click on a mobile ad after seeing the same ad on an OOH (Out-of-Home) billboard first.
Remote Management and Connectivity
To maximize ROI, you need to minimize the time spent physically visiting the site.
Cloud-Based Control:
Modern pole-mounted LED billboards allow you to update content via 4G/5G or Wi-Fi from your office. This reduces labor costs and allows for “real-time” advertising, such as displaying live weather updates or sports scores to keep the audience engaged.
System Health Monitoring:
Advanced systems can send you an email alert if a module fails or if the temperature gets too high, allowing for proactive maintenance before a total shutdown occurs.
Durability: Protecting Your Capital Investment
Outdoor equipment faces harsh elements. Every hour your screen is dark is lost revenue.
Ensure your hardware is rated IP65 or higher. This protects against heavy rain, dust, and coastal salt air.
Pole-mounted units are exposed to the sun on all sides. High-quality aluminum cabinets help dissipate heat better than steel, extending the lifespan of the LEDs to over 100,000 hours of continuous use.
Measuring Success with Data
Gone are the days of “guessing” how many people saw your sign. Modern ROI is measured through:
Traffic Analytics: Using local government transportation data to estimate daily impressions.
Mobile Retargeting: Using geofencing technology to track if a user who passed the billboard later visited the advertiser’s website or physical store.
Low CPM: Digital Out-of-Home (DOOH) advertising often has a lower Cost Per Thousand (CPM) impressions than television or high-end social media campaigns, making it a highly cost-effective medium for long-term branding.
Measuring Success with Data
Gone are the days of “guessing” how many people saw your sign. Modern ROI is measured through:
Traffic Analytics: Using local government transportation data to estimate daily impressions.
Mobile Retargeting: Using geofencing technology to track if a user who passed the billboard later visited the advertiser’s website or physical store.
Low CPM: Digital Out-of-Home (DOOH) advertising often has a lower Cost Per Thousand (CPM) impressions than television or high-end social media campaigns, making it a highly cost-effective medium for long-term branding.
Understanding Local Regulations
Before installation, always check local zoning laws. Some cities have strict rules regarding “refresh rates” (how often an image can change) and brightness levels.
Adhering to these regulations avoids costly fines and ensures your Outdoor LED Billboard remains a welcome part of the community.
Conclusion
Maximizing ROI with Outdoor Column LED Billboard is a balance of choosing the right location, investing in durable hardware, and utilizing the dynamic features of digital technology.
By reducing energy costs and increasing ad relevance through smart scheduling, your pole-mounted display can become a 24/7 revenue-generating asset.
Ready to upgrade your advertising game? Explore our range of high-durability pole-mounted LED billboards designed for maximum visibility and long-term performance.
