1000 mm × 250 mm Indoor Fixed LED Display - PS Series
Indoor Fixed LED Display With Front Maintenance
- Industry-first bottomless 250×250 mm LED Module
- Ultra-slim and Lightweight LED Cabinet
- Magnetic Pre-maintenance
- Custom-size Indoor LED Display Cabinets
- Superior Heat Dissipation Performance
- Ultra-stable, Long Lifespan
- Achieve 90° corners and Curved LED Displays
1000 mm × 250 mm Indoor Fixed LED Display Features
Frameless LED Module Design
The PS Series (PureSlim) indoor LED display uses an industry‑first frameless LED module design with a thick PCB. It does not need an extra back frame to keep the surface flat and stable.

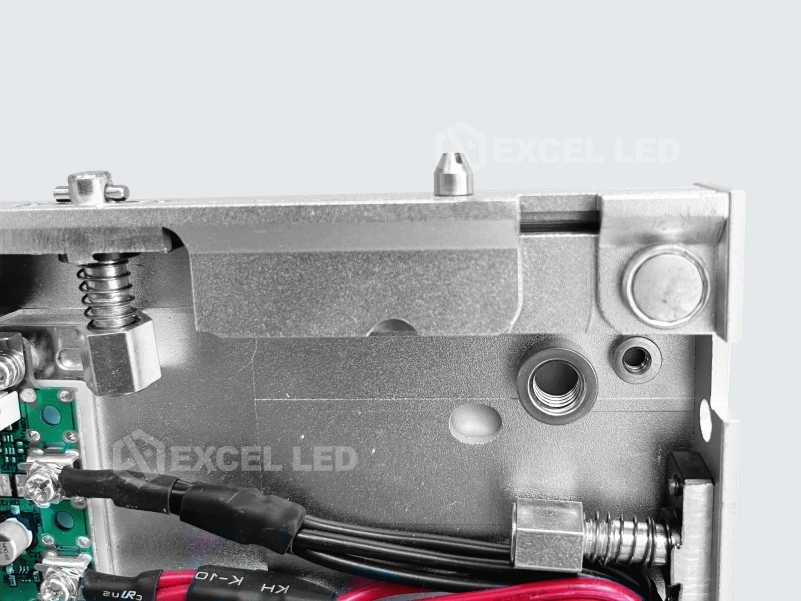

On the back of each module, the PCB integrates 11 evenly distributed magnets and two copper positioning pins. These parts help the module align perfectly with the 1000×250 mm indoor LED display cabinet and keep it flat for a long time.
A board‑to‑board locking connector is used between modules, which makes signal transmission stable and reduces signal problems caused by deformation in traditional LED modules.
250×250 mm LED Module

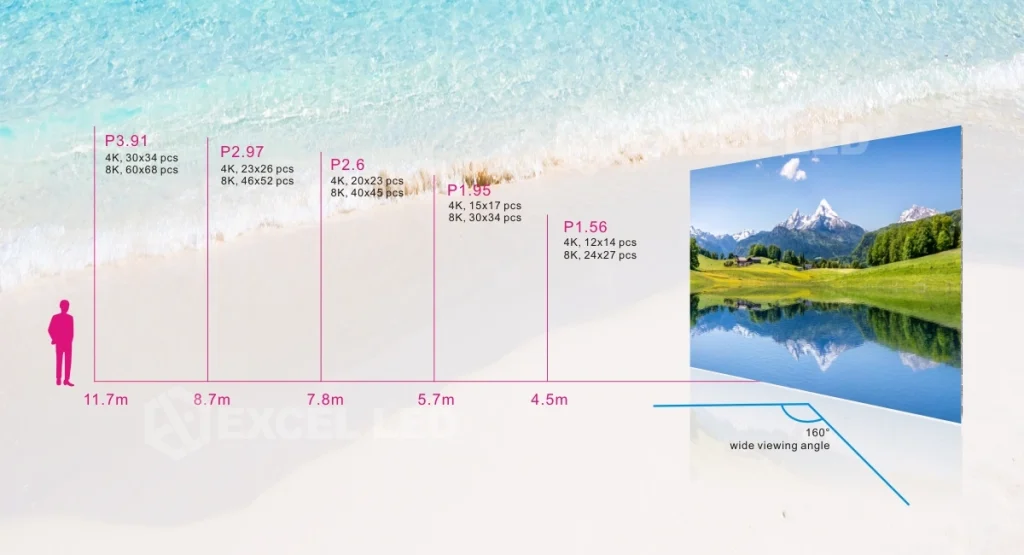

The 1000×250 mm PS Series indoor LED display is built with standard 250×250 mm LED modules. It offers several pixel pitches: P1.56, P1.95, P2.6, P2.97, and P3.91, so you can choose the best option for close, medium, or long viewing distances.
The modules can be flexibly spliced to create 2K, 4K or even 8K ultra‑HD LED video walls.
This makes the PS Series small pitch indoor LED display a good choice for meeting rooms, lecture halls, control centers, showrooms, retail spaces and stage applications.

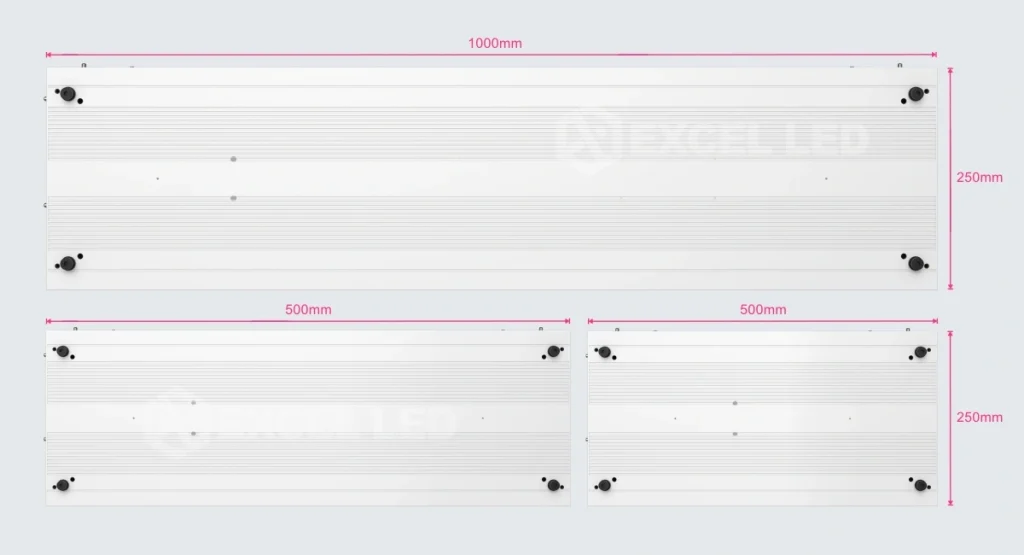

Custom-size Indoor Fixed LED Display Cabinets

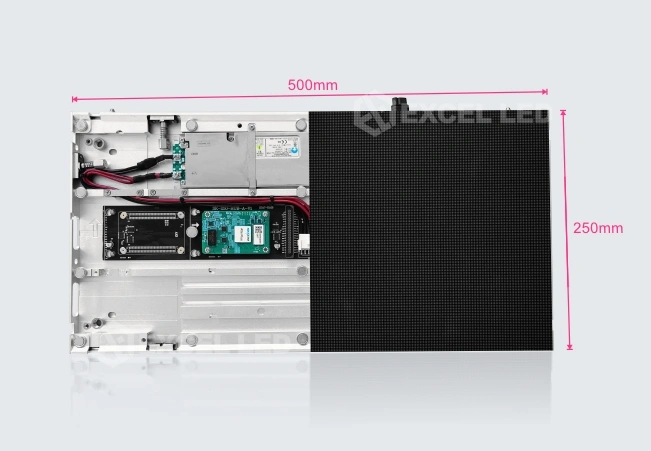

The PS series indoor LED displays support 250×500 mm, 250×750 mm, and 250×1000 mm cabinet sizes — the largest one being the classic 1000×250 mm indoor fixed LED display cabinet.
The cabinets can be freely combined to match different screen widths and heights, reducing cutting and material waste.

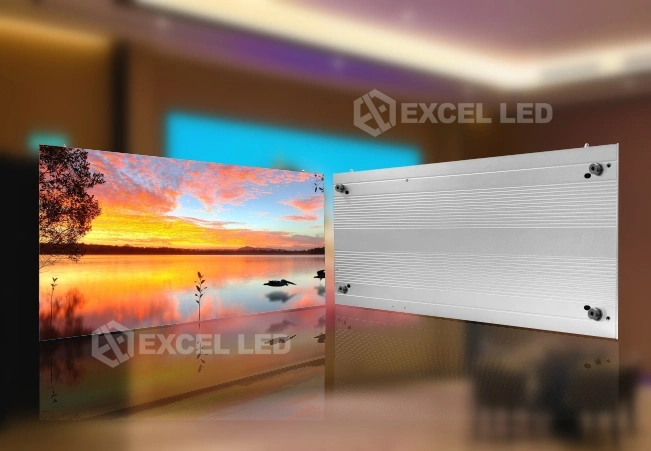

Ultra-slim and Lightweight LED Cabinet
The 1000×250 mm indoor LED display cabinet is very slim and light. It uses electroplated aluminum profiles with CNC machining, so the cabinet is strong, corrosion‑resistant, and high‑precision and has a premium look.

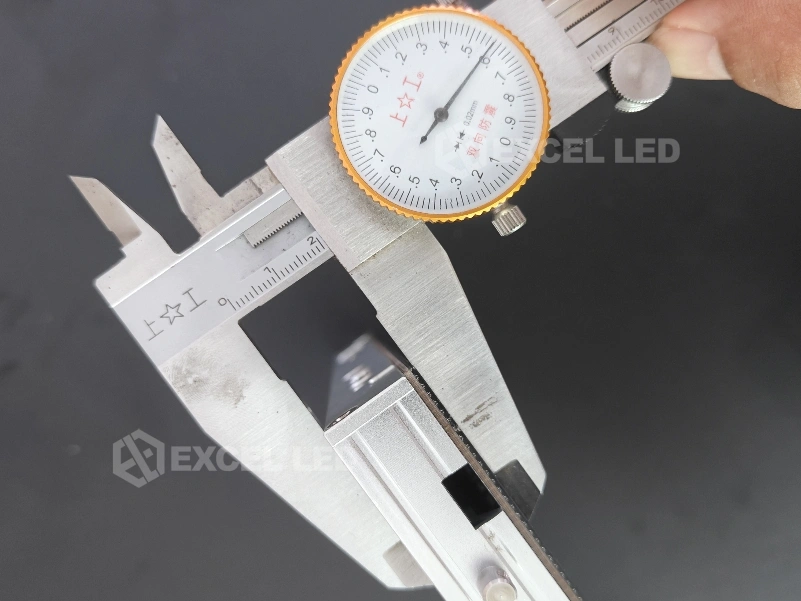

The total thickness is only about 20 mm, and the weight is only about 2.4 kg per cabinet. The cabinets are flat and compact, which makes packing and transport easier and helps reduce shipping costs.
Because of the 20 mm ultra‑slim depth, the PS Series can be wall‑mounted or recessed into the wall, making it an ideal fixed‑installation small pitch LED display that blends well with interior decoration.

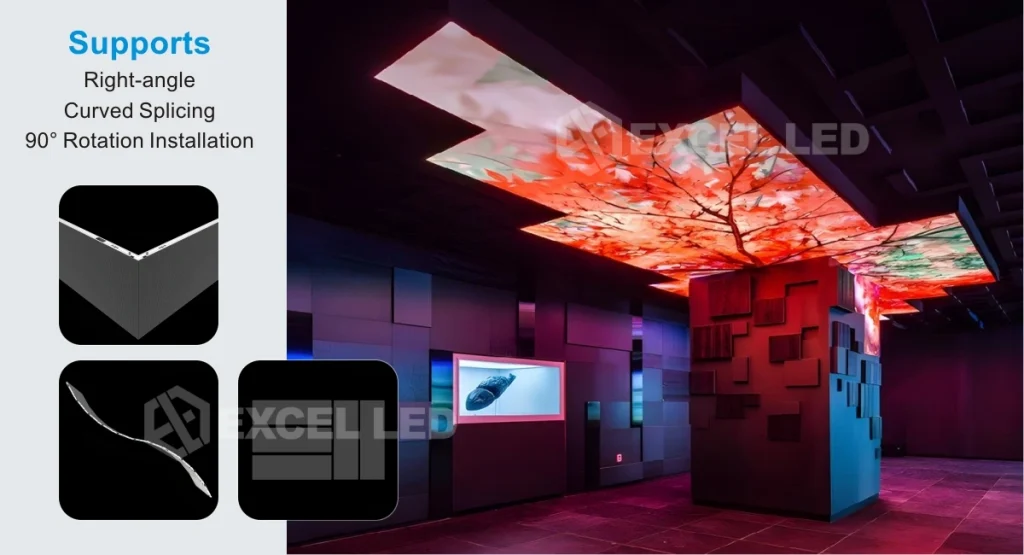

Custom Cabinets and Creative Shapes
Customizable angled cabinet designs are available to achieve 90° corners and curved LED displays, enabling creative aesthetics. The 1000×250 mm indoor fixed LED display supports wall-mounted, ceiling-mounted, and floor-standing installations.
A common-cathode energy-saving design can be added, suitable for projects requiring long-term screen operation.

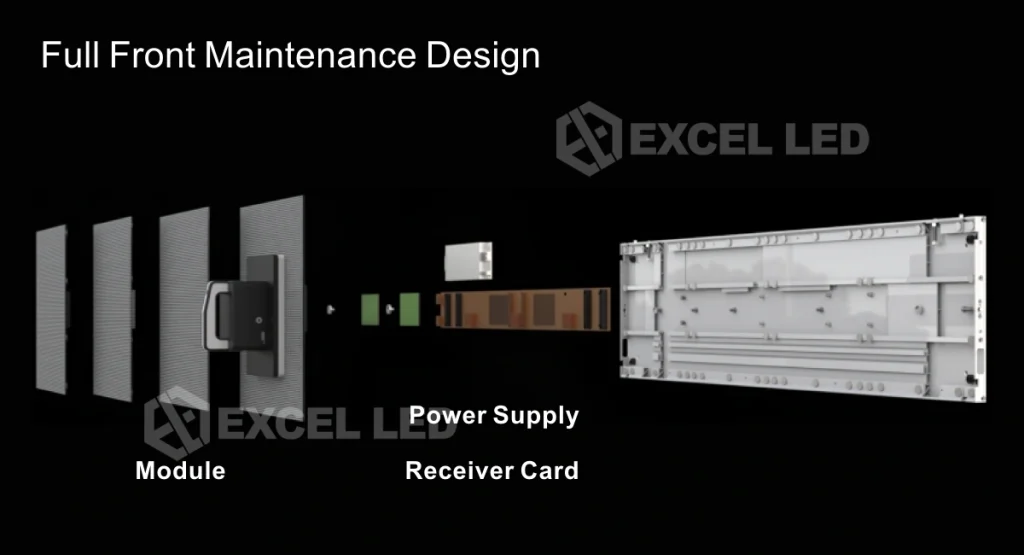

Magnetic Pre-maintenance
The 1000×250 mm indoor fixed LED display uses magnetic LED modules and supports full front maintenance.

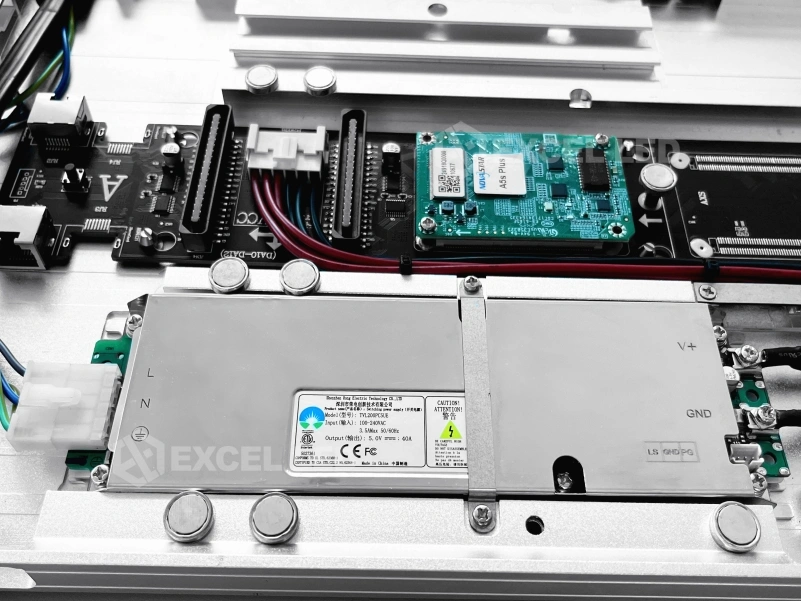

Modules, power supplies, and receiving cards can all be removed and replaced from the front side, so you do not need any rear maintenance space.
This front‑service structure saves maintenance time and labor cost, and it also supports wall‑mount or in‑wall installation, giving more flexibility and a cleaner look. It is an excellent solution for high‑end indoor LED displays and small-pitch LED displays.
Adapting to Global Project Needs
The PS Series 1000×250 mm indoor LED display uses an ultra‑slim wide‑voltage power supply and supports dual power redundancy backup.
Even when the AC voltage is unstable, the LED screen can keep running safely and continuously.

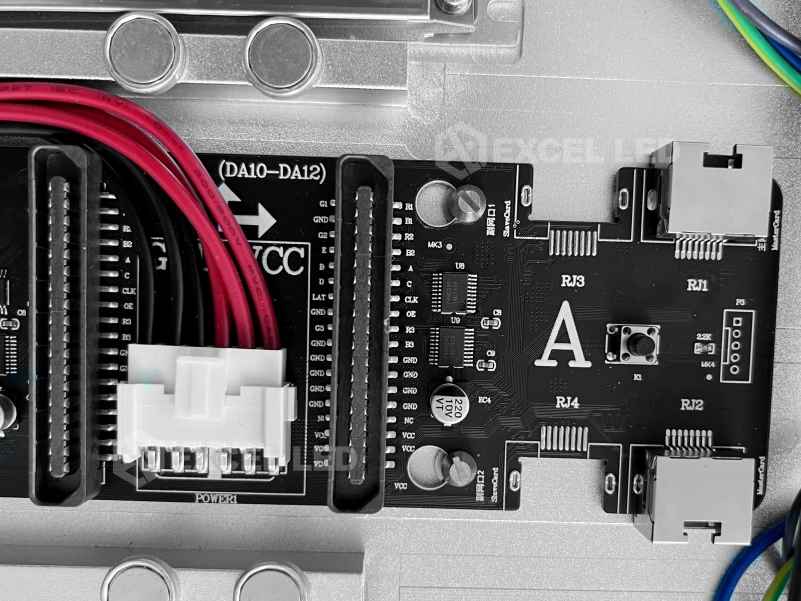

Dual receiving cards and four network ports provide signal redundancy, which helps avoid single‑point failures and improves overall system stability.
This design reduces maintenance risk and downtime, making the PS Series ideal for high‑end indoor applications that need long‑term, 24/7 operation.

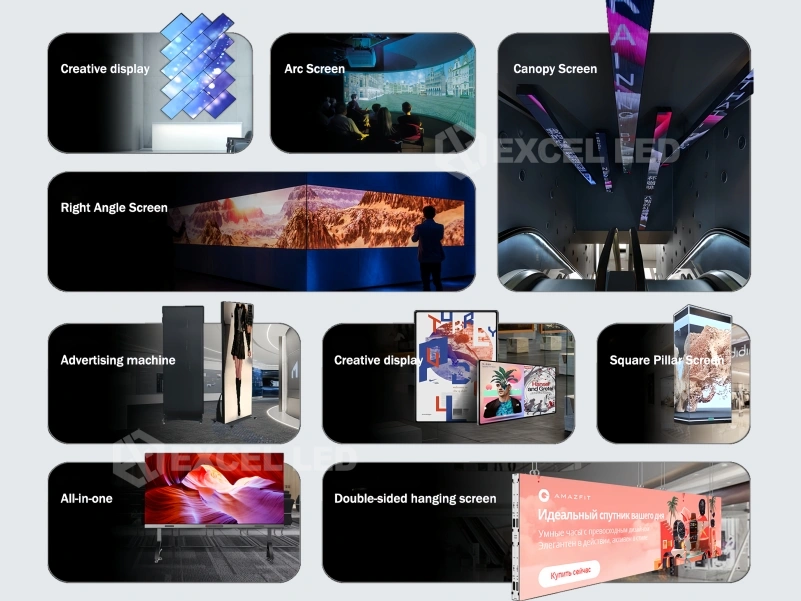

LED Screen Installation
Installation methods: this 1000×250 mm indoor fixed LED display has a wide range of installation applications.
It can be used as a conference all-in-one machine, ceiling-mounted display screen, wall-mounted display screen, poster display screen, column display screen, and double-sided display screen.

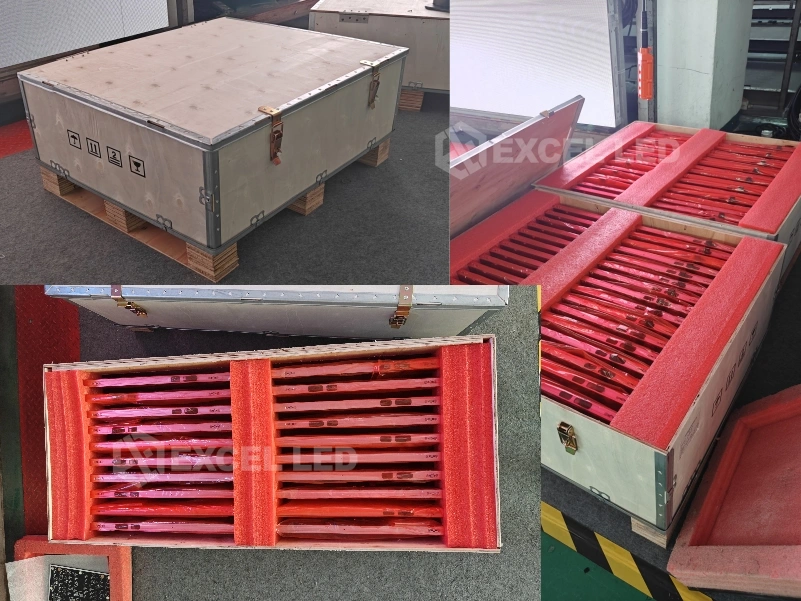

PS Series LED Screen Package
Each 1000×250 mm indoor fixed LED display is securely packed for export.
1. Packed in wooden crates;
2. 16-in-1 Optional, etc.

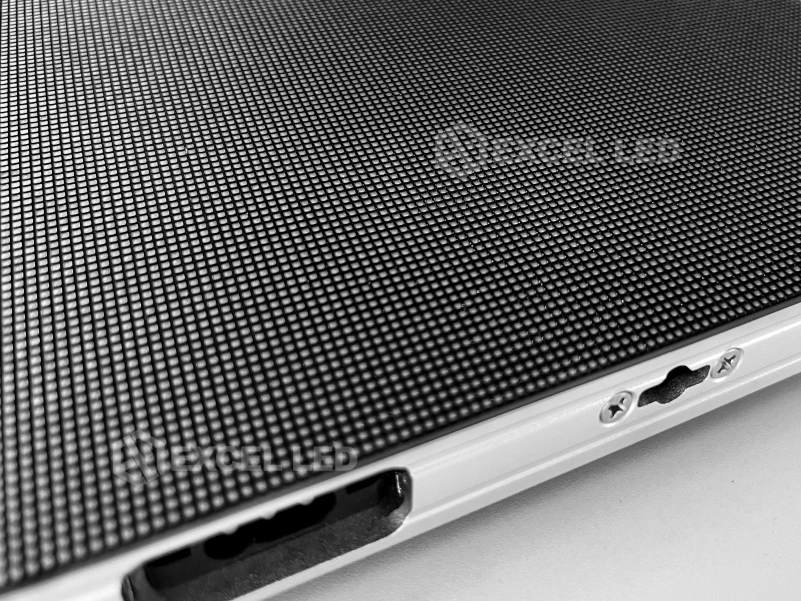

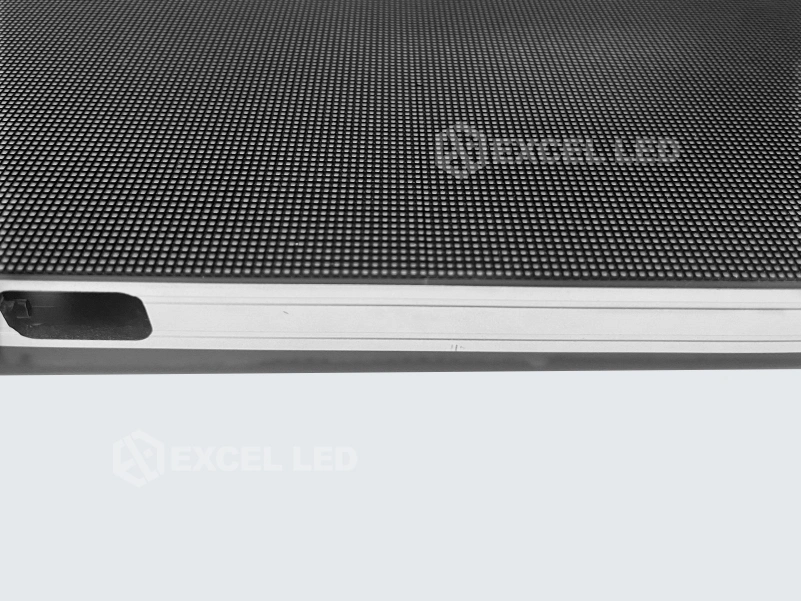

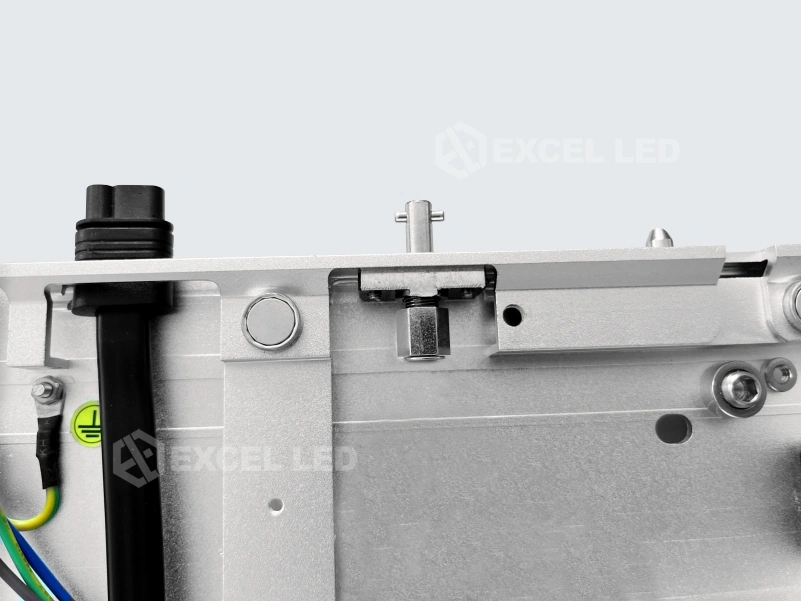

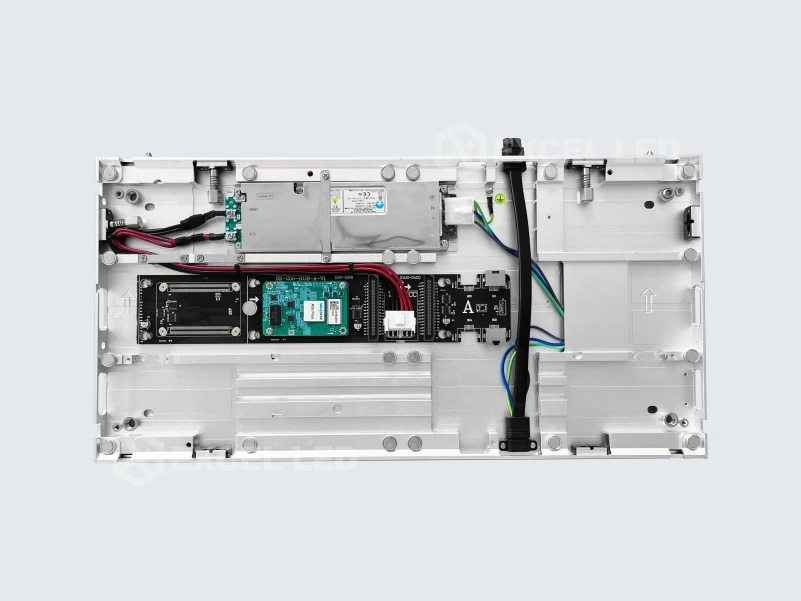

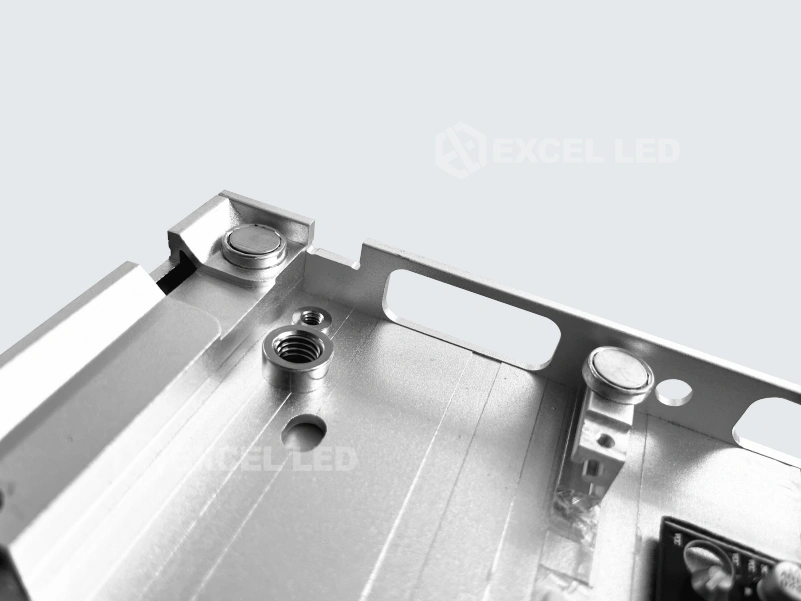

Details Image of PS Series 1000×250 mm Indoor LED Display

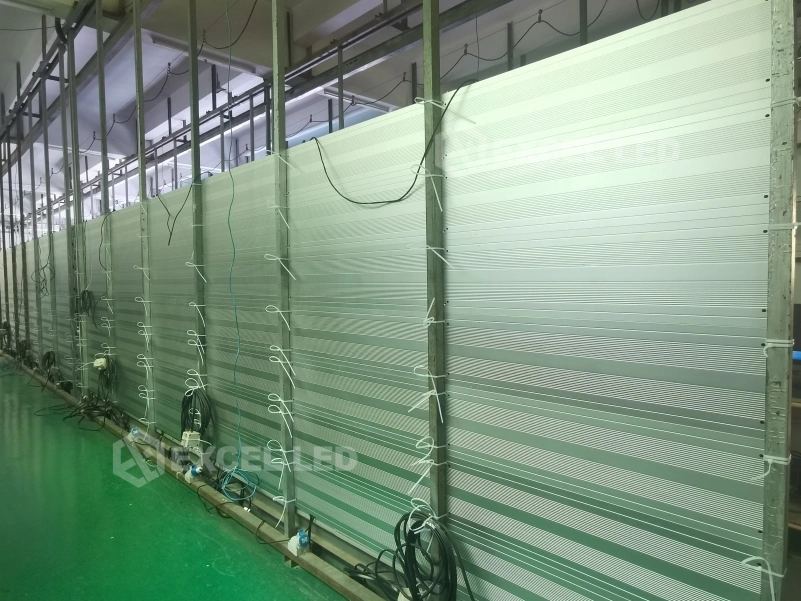

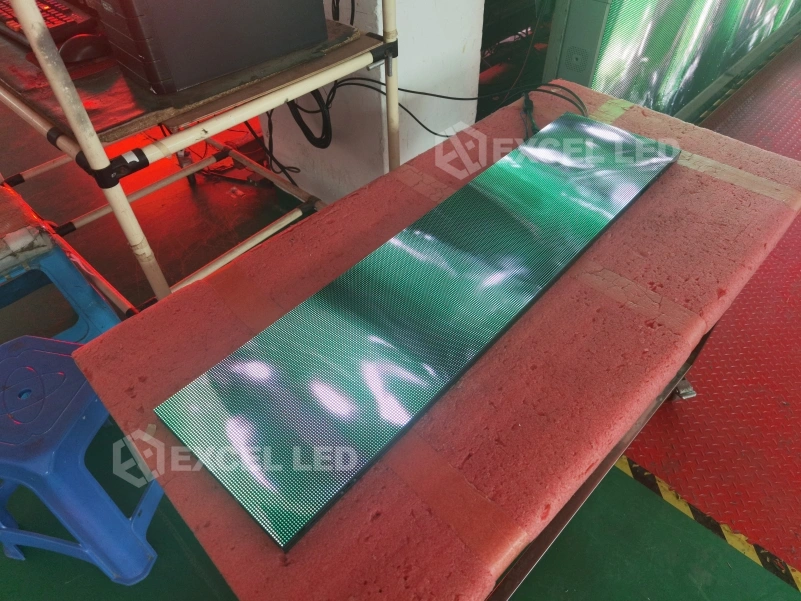

Factory Direct Output of 1000×250 mm Indoor Fixed LED Displays
Parameter Table
Parameters | PS1.56 | PS1.95 | PS2.6 | PS2.97 | PS3.91 |
LED type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
Pixel pitch (mm) | 1.56 | 1.95 | 2.6 | 2.7 | 3.91 |
Module size (WxH, mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
Cabinet size (WxHxD, mm) | 1000×250×20.6 (750×250×20.6 / 500×250×20.6) | ||||
Cabinet resolution | 640×160 | 512×128 | 384×96 | 336×84 | 256×64 |
Cabinet weight (kg) | 4.8/3.6/2.4 | 4.8/3.6/2.4 | 4.8/3.6/2.4 | 4.8/3.6/2.4 | 4.8/3.6/2.4 |
Cabinet material | Aluminium profiles | Aluminium profiles | Aluminium profiles | Aluminium profiles | Aluminium profiles |
Pixel Density (dot/m²) | 409600 | 262144 | 147456 | 112896 | 65536 |
Brightness (nit) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
Grayscale (bit) | 14 | 14 | 16 | 16 | 16 |
Contrast ratio | 5000：1 | 5000：1 | 5000：1 | 5000：1 | 5000：1 |
Color temperature (K) | 6500-9000 | 6500-9000 | 6500-9000 | 6500-9000 | 6500-9000 |
Viewing angle (H/V, °) | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
Drive mode | 1/40 | 1/32 | 1/32 | 1/28 | 1/16 |
AC operating voltage(V) | 110~240 | 110~240 | 110~240 | 110~240 | 110~240 |
Power consumption (max./avg., W/m²) | 500/165 | 550/185 | 500/165 | 500/165 | 500/165 |
IP rating | IP43 | IP43 | IP43 | IP43 | IP43 |
Maintenance method | Front | Front | Front | Front | Front |
What You Will Get
Excel LED is an LED display manufacturer with decades of experience in the industry. They understand that in international transactions, only quality and service win people’s hearts, therefore screen quality has always been their top priority. Choosing Excel LED as your 1000×250 mm indoor fixed LED display supplier will give you the following:
High-definition screen
Affordable Price
Attentive Service
Excel LED offers a 5-year warranty because of its confidence in the PS Series 1000×250 mm indoor fixed LED display. We are ready to assist you immediately should any issues arise, ensuring your project proceeds smoothly.
Excel LED is a manufacturer that provides complete LED display solutions, including indoor LED screens, accessories, control systems, and even steel structures.
Excel LED has a professional technology support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page. Or turn to Indoor LED screen page to know more!
Delivery to Port: We have a professional and stable transportation team. No matter which country you are in, Excel can ship your screen to the nearest port.
— Differences in brightness, waterproofing, and pixel pitch requirements. Indoor environments have lower brightness and higher resolution requirements.
— Pixel pitch, resolution, refresh rate, brightness adjustment, and maintenance methods are core parameters. For a 1000×250 mm indoor fixed LED display, also check cabinet flatness and front‑service convenience.
Smaller pixel pitch results in clearer images at close range; it’s recommended to match the pixel pitch to the viewing distance.
Generally, a distance ≥ pixel pitch × 3 provides a better visual experience.
— A high refresh rate (≥3840 Hz) can reduce flickering when taking photos with a mobile phone.
