480×320mm Indoor LED Screen - Ehonor Series
- Pixel Pitch P1.25/P1.5/P1/8/P2/P2.5/P3
- 320*160mm Module, with SMD/GOB/COB
- 480×320mm Cabinet Dimensions
- Strong magnetic front maintenance LED Cabinet
- Superior Heat Dissipation Performance
- Ultra-stable, Long Lifespan
- Wide Viewing Angle for Large Indoor Spaces
Front Service 480×320mm Indoor LED Screen
The Ehonor series is a 480×320mm indoor LED screen exclusively designed by EXCEL LED for fixed installation. With a compact cabinet and a lightweight design of only 3 kg, it features a slim profile and a magnetic front-service enclosure.
Compared with traditional rental LED screens used for fixed installation, it effectively overcomes common issues such as excessive weight, complex maintenance, and inefficient servicing.
Multiple Pixel Pitches on One 480×320mm Screen
Ehonor indoor LED displays offer many pixel pitches: P1.25, P1.5, P1.8, P2, P2.5, and P3 — every option shares the same 480×320mm indoor LED display cabinet. These options fit common indoor uses like meeting rooms, showrooms, and control centers.
The Ehonor front-service fixed LED display has a 3840 Hz high refresh rate and 4K ultra-HD resolution. Even at close viewing distance, images stay smooth and clear. It is a reliable choice for indoor small-pitch LED displays.
Strong Magnetic Front Maintenance LED Panel
Each 480×320mm indoor LED panel is equipped with 16 high-strength magnets that are evenly distributed. It can ensure structural stability and prevent displacement after installation.
Furthermore, the entire enclosure can be removed directly from the front of the screen using vacuum tools, making the operation very simple and saving maintenance time.
Three 320×160mm Modules per 480×320mm Cabinet, with SMD/GOB/COB
The 320×160 mm indoor fixed-installation LED module is an industry-standard size. Each 480×320mm screen cabinet holds three of them, offering strong compatibility, a reasonable splicing ratio, and better overall screen flatness.
It is compatible with mainstream small pixel pitches, such as P1.5/P1.8/P2/P2.5, and supports COB, SMD, and GOB process customization.

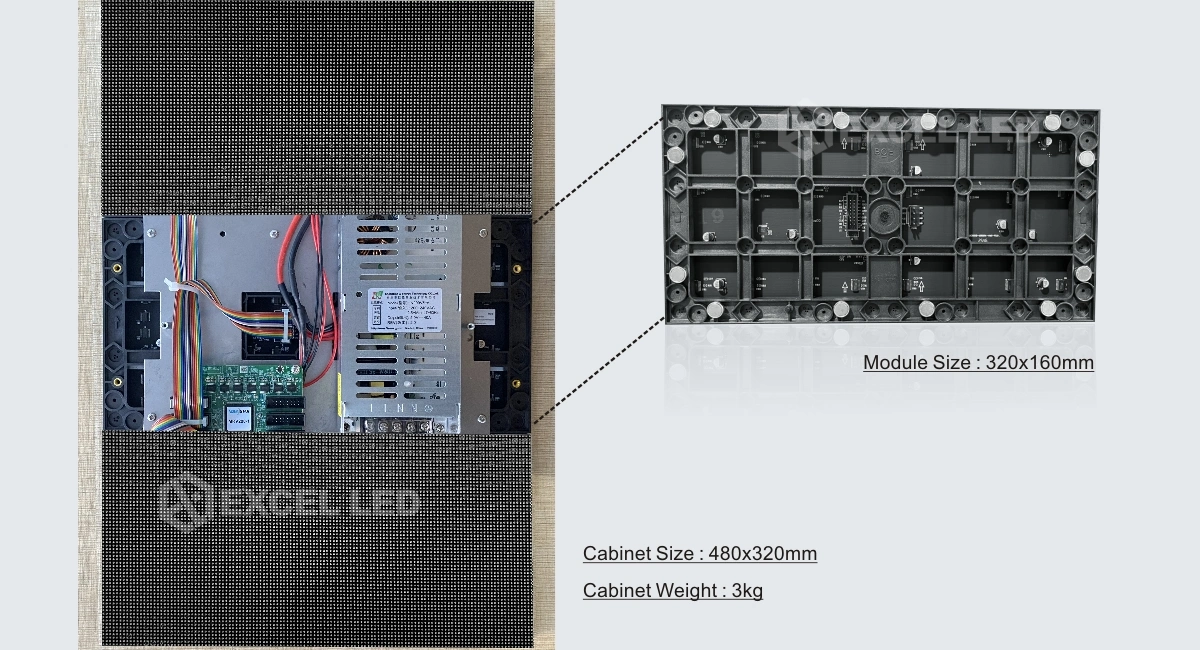

480×320mm Indoor LED Screen Cabinet Dimensions
The Ehonor 480×320mm cabinet uses only three modules. This makes the design compact and flexible, better for irregular spaces than big screens.
An engineering-grade flame-retardant plastic base keeps it safe, light, and easy to install with less weight and time.

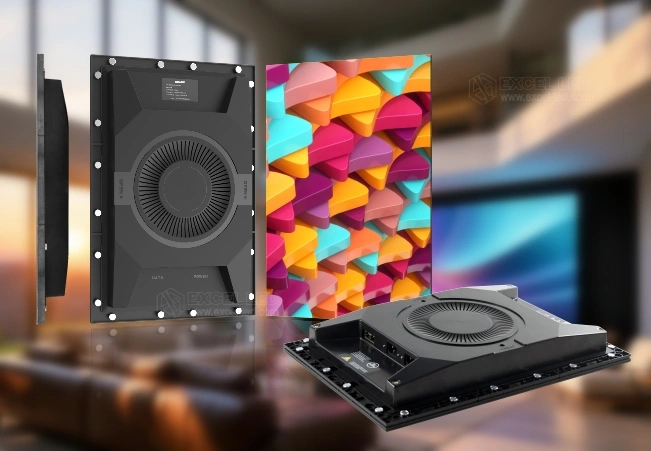

Excellent Cooling Performance of the 480×320mm Indoor LED Display
In closed indoor spaces, poor materials can cause safety risks with LED displays after long use.
The Ehonor 480×320mm LED panel uses engineering-grade flame-retardant materials and vortex cooling holes. This helps with heat dissipation, improves screen performance, and extends lifetime.
Super Stable, Long Lifetime
The Ehonor front-service 480×320mm LED panel uses engineering-grade flame-retardant materials and vortex cooling holes. This helps with heat dissipation, improves screen performance, and extends lifetime.
Wide Viewing Angle for Large Spaces
It meets display needs for large indoor spaces like meeting rooms, churches, malls, and control centers.
Factory pre-assembled
What Can Excel LED Support?
Extended Warranty
Excel offers a 5-year warranty because of its confidence in Ehonor. We are ready to assist you immediately should any issues arise, ensuring your project proceeds smoothly.
Complete Solution
Excel LED is a manufacturer that provides complete LED display solutions, including 480×320mm screens, accessories, control systems, and even steel structures.
Delivery to Port
Delivery to Port: We have a professional and stable transportation team. No matter which country you are in, Excel can ship your 480×320mm LED screen to the nearest port.
More Details of the Ehonor 480×320mm Indoor LED Display
Specification of Ehonor Series
| Value | P1.25 | P1.53 | P1.667 | P1.86 | P2 | P2.5 | P3.076 |
| Pixel Pitch (mm) | 1.25 | 1.53 | 1.667 | 1.86 | 2 | 2.5 | 3.076 |
| Brightness | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Colors | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion |
| Refresh Rate (Hz) | >3840 | > 3840 | >3840 | >3840 | >3840 | >3840 | >3840 |
| Panel Pixel | 256×128 | 208×104 | 192×96 | 172×86 | 160×80 | 128×64 | 104×52 |
| Pixel Matrix Per Panel | 32,768 | 21,632 | 18,432 | 14,792 | 12,800 | 8,192 | 5,408 |
| Viewing Angle (H/V) | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| Power Consumption (Max/Avg) | 800/300 | 800/300 | 800/300 | 800/300 | 800/300 | 800/300 | 800/300 |
| IP Rate | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Input Voltage (AC) | 100 ~ 240 | 100 ~ 240 | 100 ~ 240 | 100 ~ 240 | 100 ~ 240 | 1 00 ~ 240 | 100 ~ 240 |
| Panel Size (mm) | 480x320x70 | 480x320x70 | 480x320x70 | 480x320x70 | 480x320x70 | 480x320x70 | 480x320x70 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Panel Weight (Kgs) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
Tech Support
Excel LED has a professional technology support team to solve any tech problem for you; tech support covers installation, configuration, and anything about your 480×320mm LED screen. Please check our contact us page. Or turn to the indoor LED Screen page to know more!
FAQs
Indoor LED displays are mainly used for close‑viewing environments such as shopping malls, retail stores, conference rooms, churches, control rooms and studios.
They are ideal when you need a bezel‑free video wall to show branding, advertising, live video or data clearly to audiences inside a building.
Pixel pitch should match the viewing distance: the closer people stand, the smaller pixel pitch you need.
As a simple rule, the minimum viewing distance in meters is roughly equal to the pixel pitch in millimeters, so a 2.6 mm screen suits about 2.5–3 m viewing, while 3.9 mm fits 4–5 m and beyond.
Most indoor projects work well between 600 and 1,200 nits, depending on how bright the room and spot lighting are.
Bright retail spaces or atriums may need higher brightness, while meeting rooms and studios often look better with moderate levels to protect eyes and cameras.
With quality components and proper ventilation, a quality 480×320mm LED screen usually offers 80,000–100,000 hours of service before brightness drops by about half.
Running the screen at reasonable brightness, keeping the environment dry and dust‑free, and doing basic maintenance will significantly extend real‑world lifetime.
