500×500mm Curved Rental LED Display - Flex Series for Stage & Event

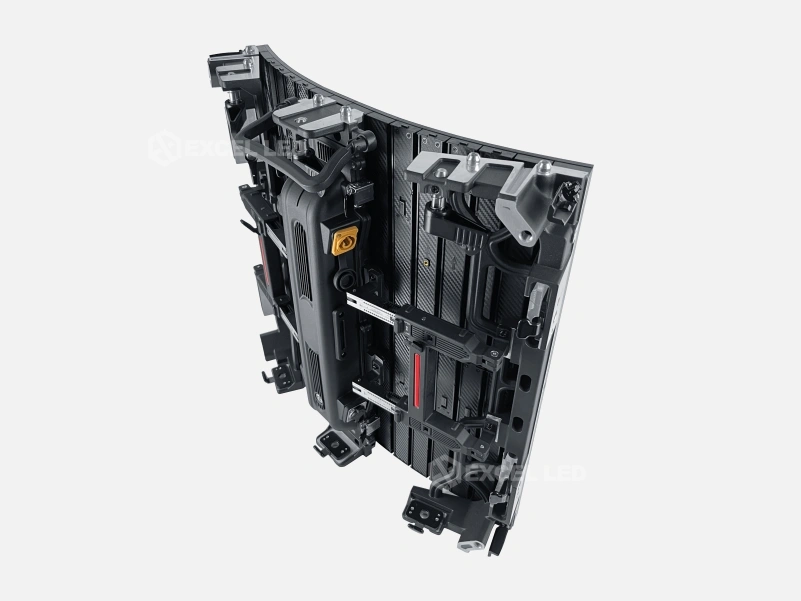

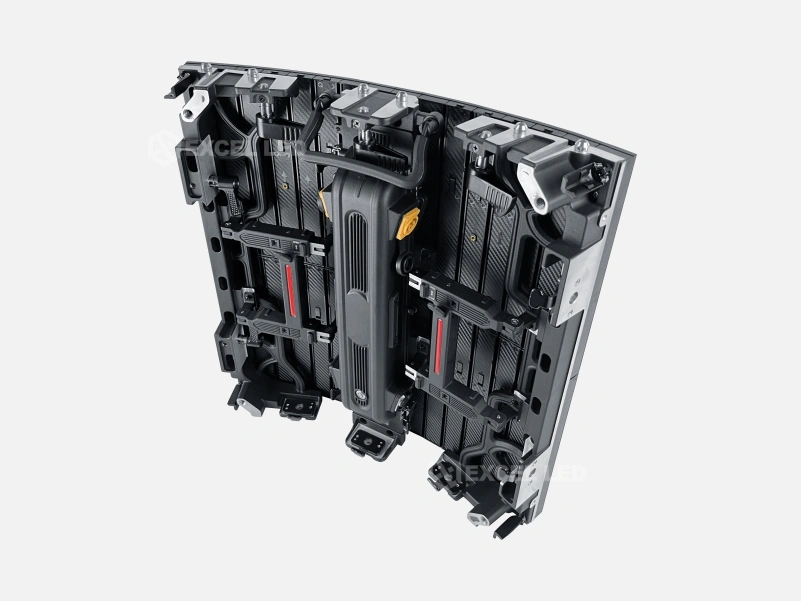

500×500mm Curved Rental LED Display Cabinet
High-Precision ±15° Angle Locks for Creative Shapes
250×250mm Standard Seamless Splicing Modules
IP65 Weatherproof Rating (Outdoor Models)
Quick-Lock Mechanism for One-Person Setup
Rear Dual Maintenance Design
≥3840Hz High Refresh Rate for Cameras

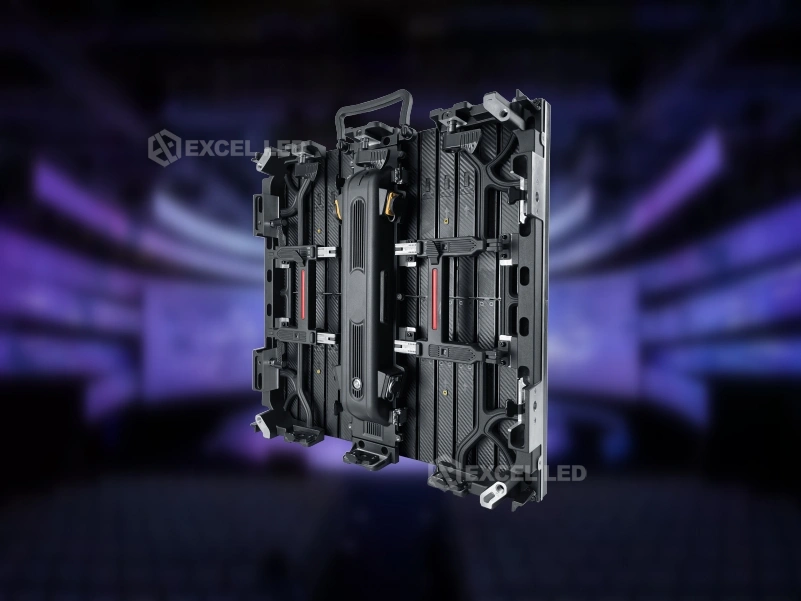

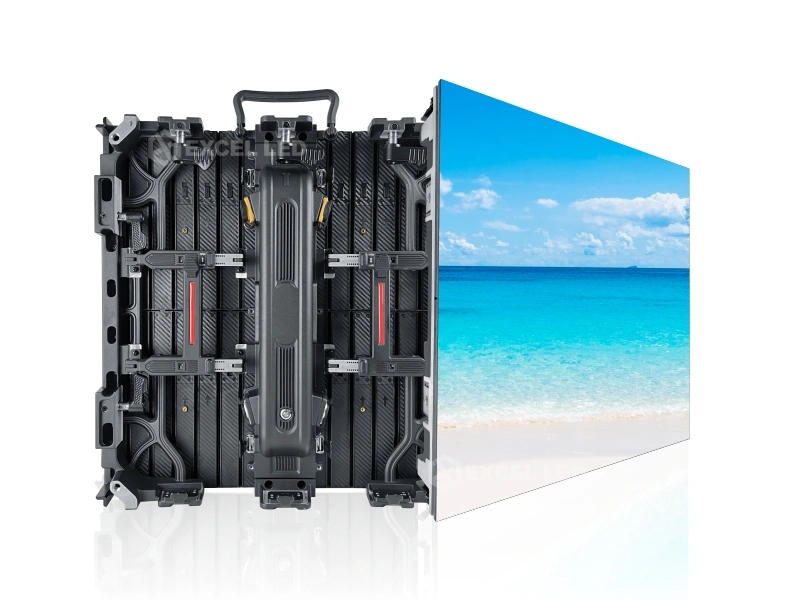

The 500×500mm Curved Rental LED Display—the Flex series—is a versatile solution for stages, concerts, exhibitions, and live events.
Beyond conventional rectangular screens, its flexible cabinet design allows for seamless curved and cylindrical screen configurations, enabling creative layouts not possible with traditional rental LED panels.

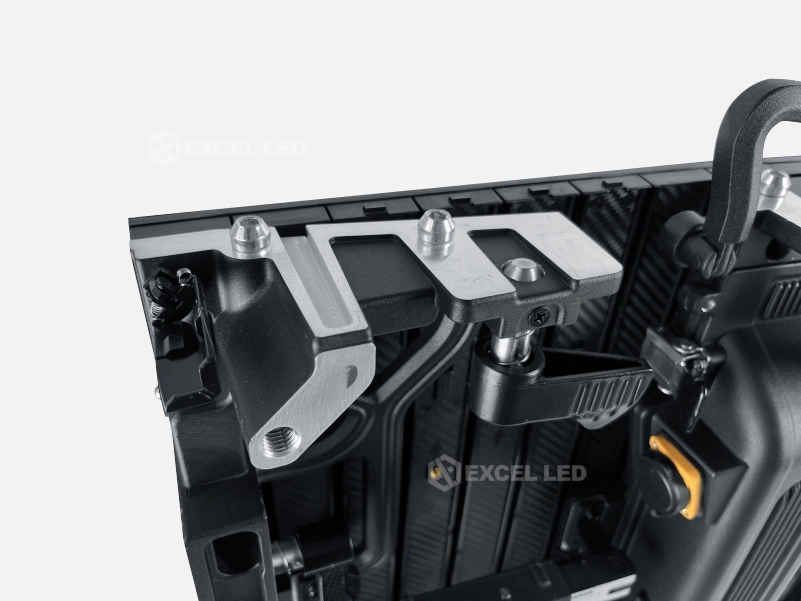

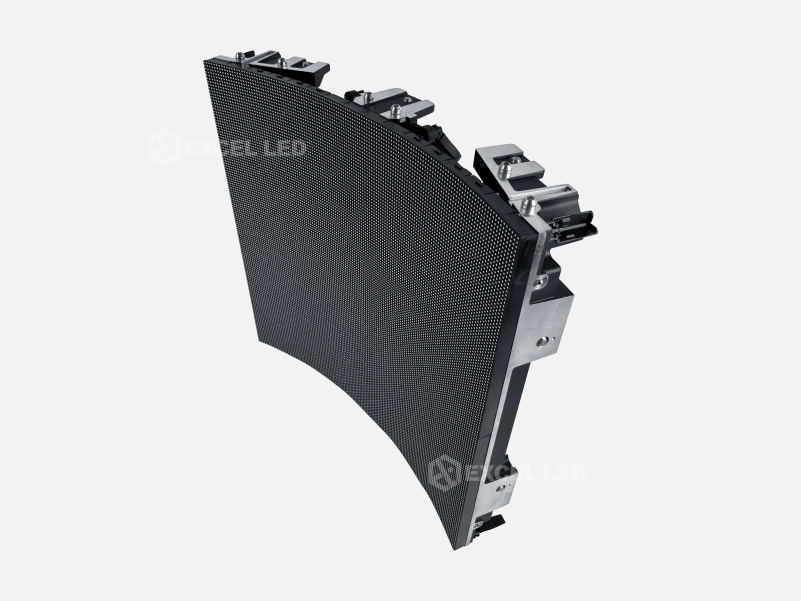

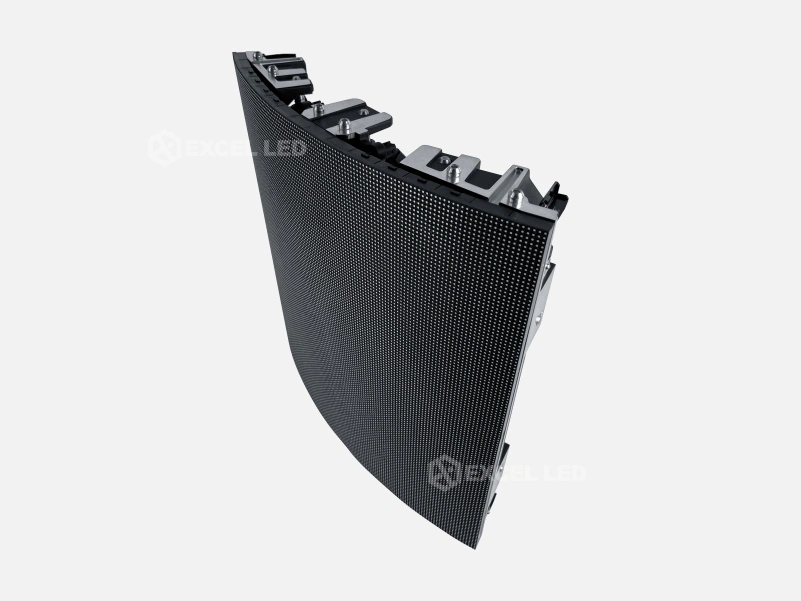

High-Precision Curve Adjustability of the 500×500mm Curved Rental LED Screen

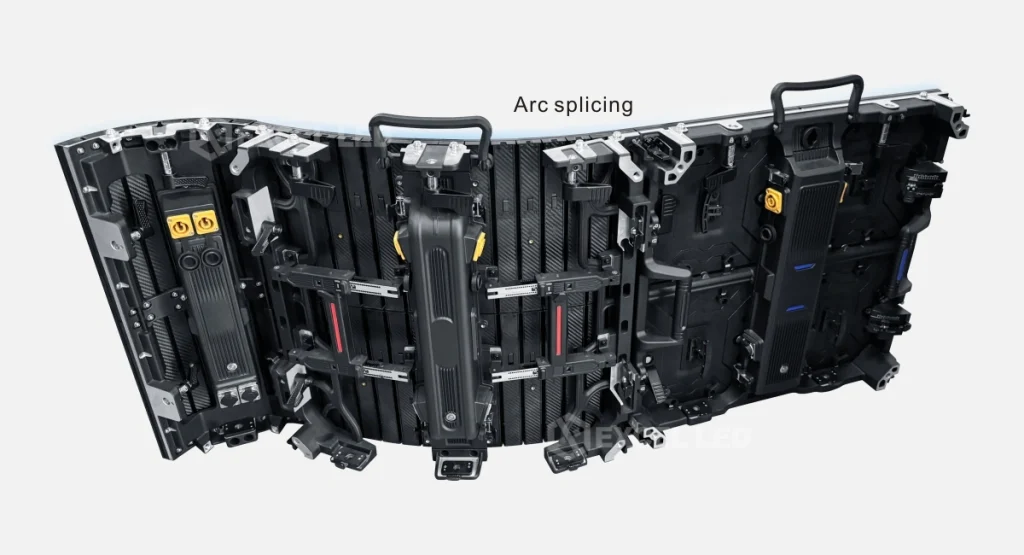

The Feature: The 500×500mm curved rental LED screen cabinet features a specialized high-precision angle lock system, by utilizing our custom-designed E-structure mounting frame, supporting -15° to +15° adjustments.
The Benefit: Enables effortless creation of concave, convex, and S-shaped wave screens, allowing stage designers to build dynamic 3D visual effects that standard flat screens cannot achieve.

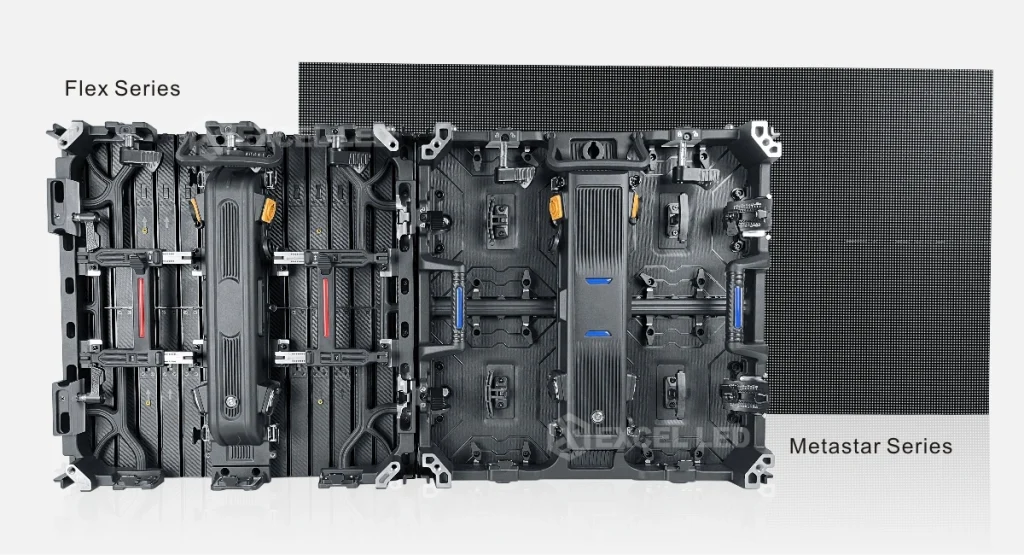

Seamless Mixed Splicing with the Metastar 500×500mm Rental LED Screen
The Feature: The locking mechanism of the Flex series is engineered for universal compatibility, allowing direct vertical and horizontal mixed splicing with our standard 500×500mm Metastar LED panels.
The Benefit: Maximizes your rental inventory ROI by combining flat cabinets with curved elements, allowing you to build cost-effective creative stage designs without purchasing an entirely new ecosystem.

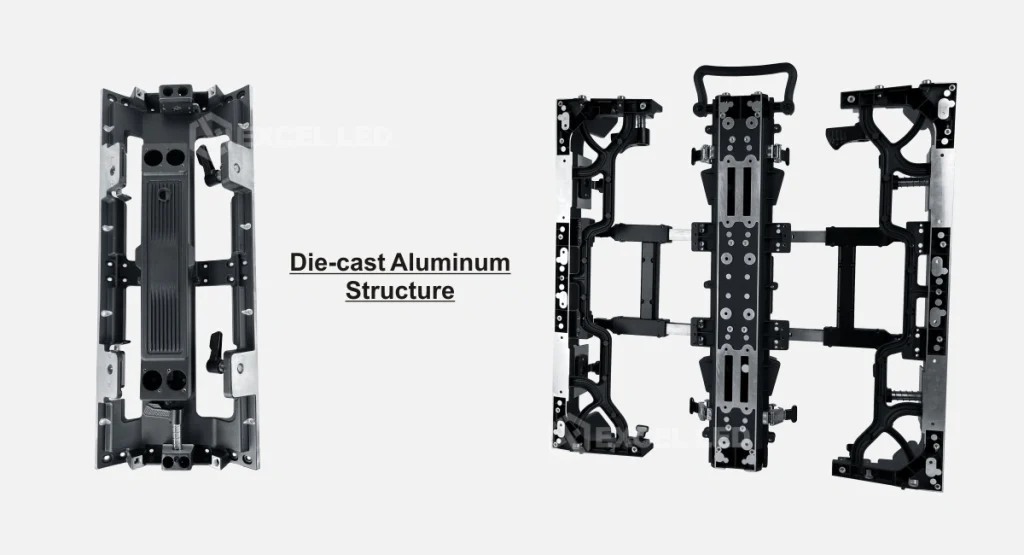

Robust Die-Cast Aluminum Framework of the 500×500mm Curved Rental LED Screen
The Feature: Constructed from high-strength die-cast aluminum, the 500×500mm creative stage screen housing is both lightweight and deformation-resistant.
The Benefit: Provides the structural integrity needed for hanging tall curved arrays while remaining light enough (7.5kg) for one-person handling.

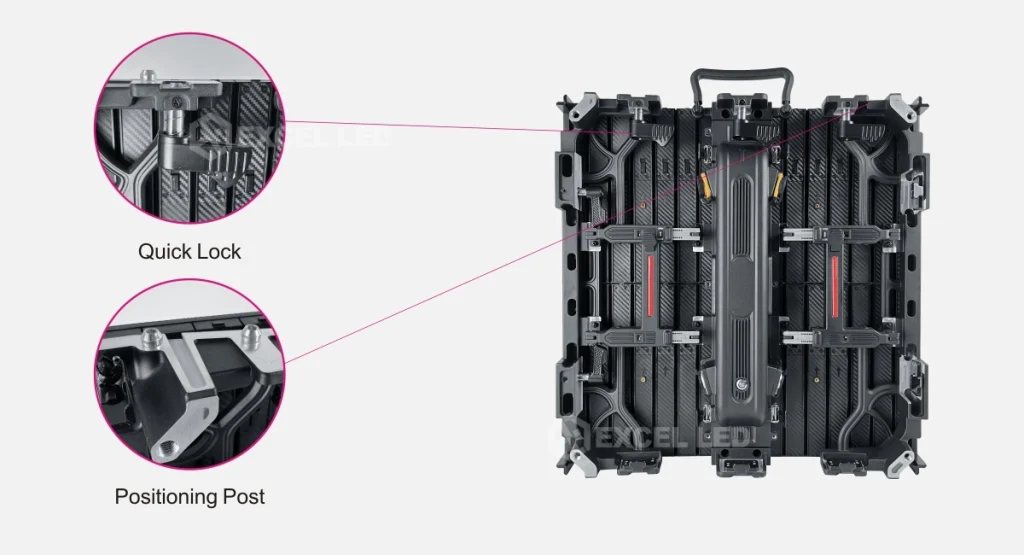

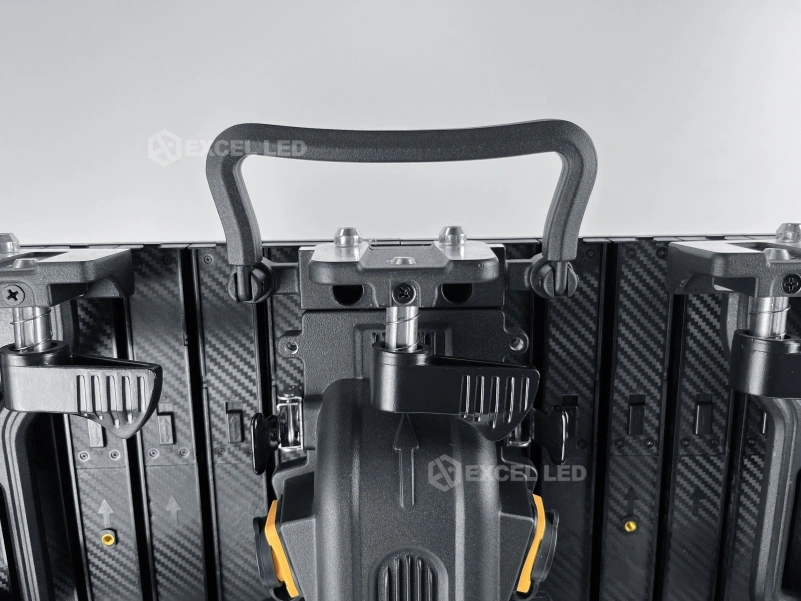

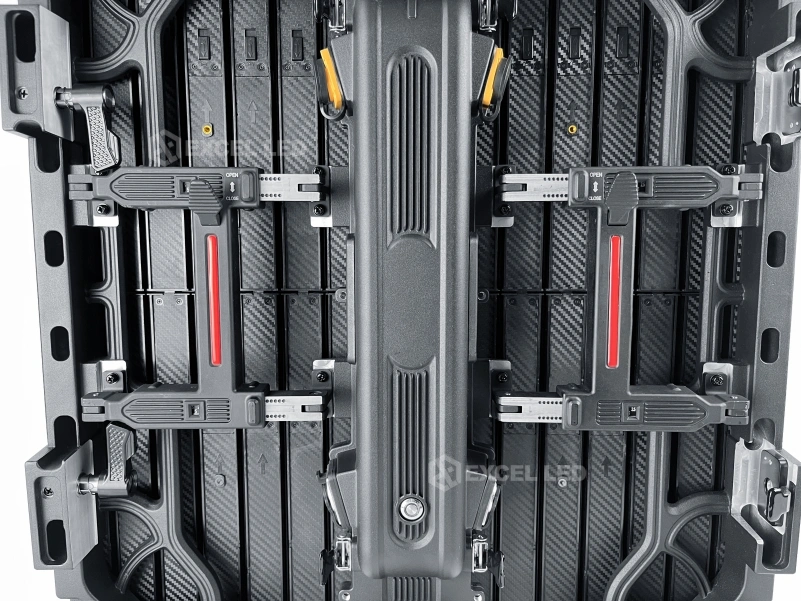

Fast-Lock Rapid Rigging System of the 500×500mm Curved Rental LED Screen
The Feature: Integrated ergonomic quick locks connect the 500×500mm adjustable angle LED panels vertically and horizontally in seconds.
The Benefit: Significantly reduces setup and teardown time by 50%, a critical advantage for touring concerts with tight schedules.

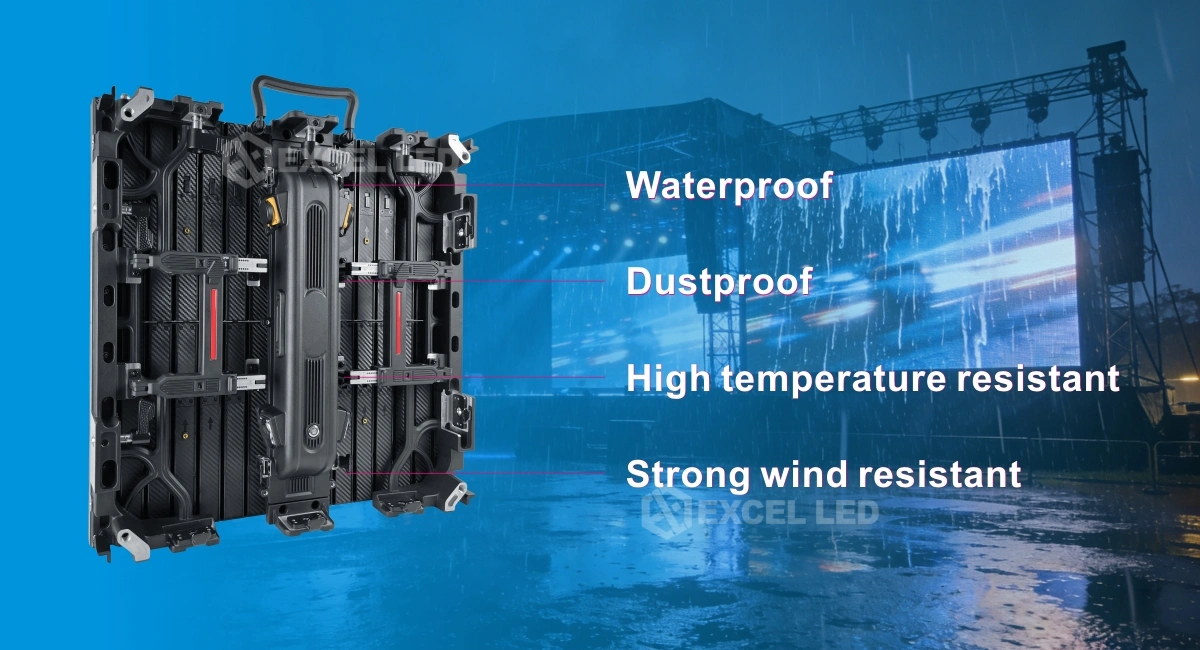

All-Weather IP65 Protection of the 500×500mm Curved Outdoor Rental LED Display

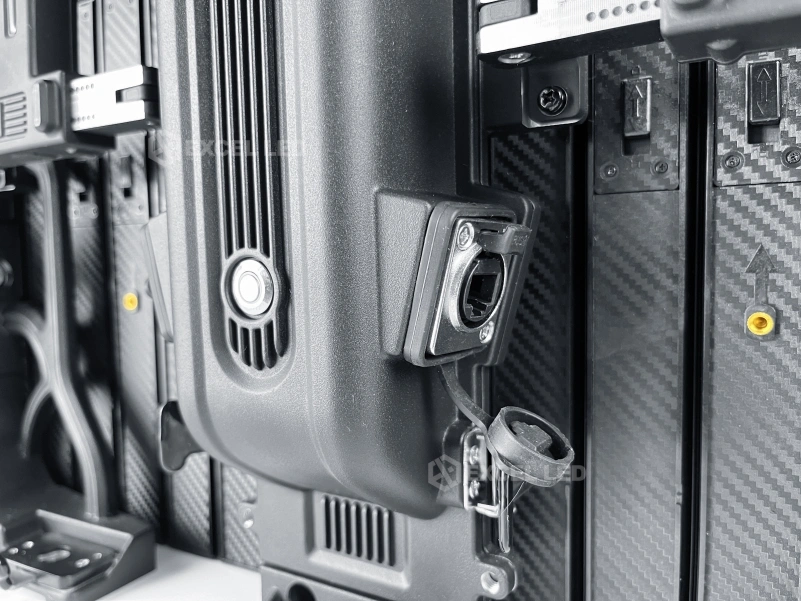

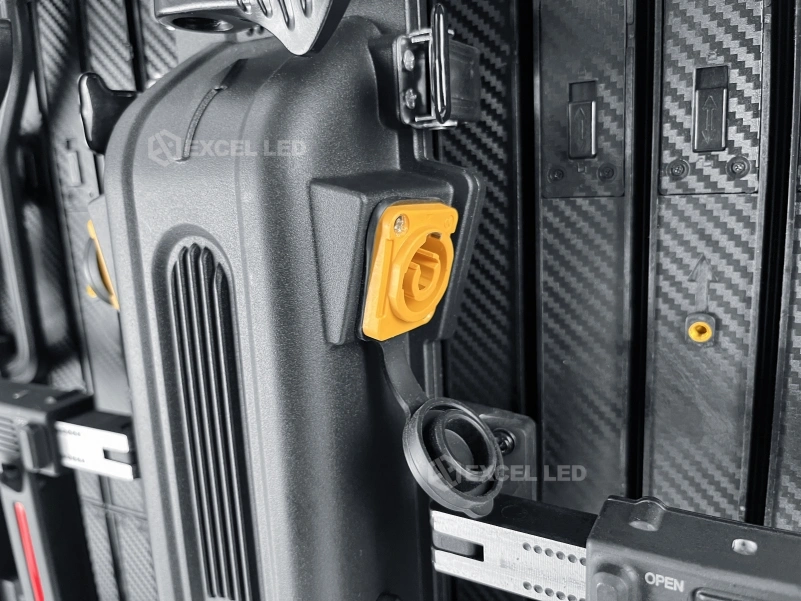

The Feature: Outdoor variants (P2.9/P3.9) feature fully sealed modules and waterproof connectors, making it a reliable 500×500mm outdoor curved LED wall.
The Benefit: Guarantees stable operation in rain or dust, allowing creative stage designs to be deployed in open-air festivals without weather concerns.

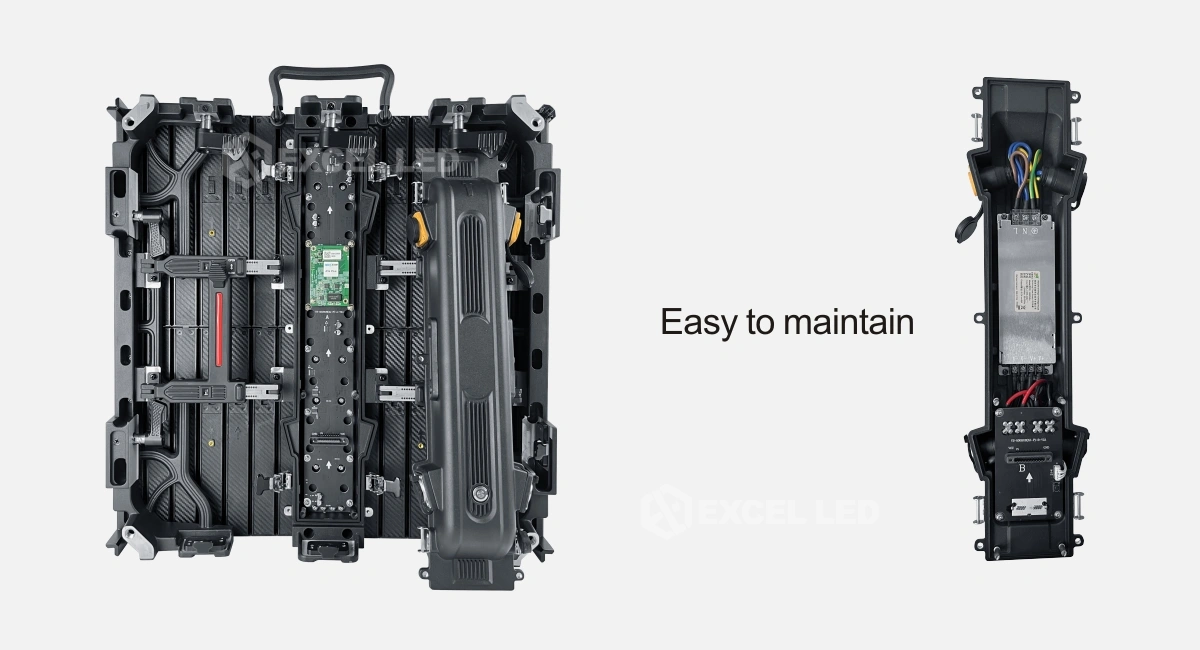

Dual Maintenance Accessibility of the 500×500mm Curved Rental LED Screen
The Feature: The Flex series 500×500mm curved rental LED screen supports both front (via magnetic tools) and rear service access.
The Benefit: It offers maximum flexibility for complex stage setups where rear access might be obstructed by trussing or walls.
Ideal Use Cases for Curved Rental Displays
The Scene: DJ booths, wave screens, or circular headers.
Product Support: ±15° curving allows the 500×500mm curved rental LED screen to create smooth geometric shapes that define the stage atmosphere.
The Scene: 360-degree cylindrical screens or artistic installations.
Product Support: Seamless splicing ensures the content flows naturally around curves without visible gaps.
The Scene: Dynamic backdrops requiring high camera performance.
Product Support: High refresh rate ensures no scan lines appear during live recording.
Flex Series Specifications
Feature | Flex P1.95 | Flex P2.6 | Flex P2.9 | Flex P3.9 | Flex P4.8 |
Pixel Pitch | 1.95mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
Application | Indoor | Indoor | In/Outdoor | In/Outdoor | In/Outdoor |
Brightness | 800 nits | 1000 nits | 1000/4500 nits | 1000/4500 nits | 4500 nits |
Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
Cabinet Size | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm |
Curving Angle | ±15° | ±15° | ±15° | ±15° | ±15° |
IP Rating | IP40 | IP40 | IP65/IP40 | IP65/IP40 | IP65 |
Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
Tech Support
Excel LED has a professional technology support team to solve any tech problem for you; tech support covers installation, configuration, and anything about your 500×500mm curved rental LED screen. Please check our contact us page. Or turn to the Rental LED Screen page to know more!
FAQs
A: With ±15° locks, a standard circle requires 24 cabinets, resulting in a minimum radius of approximately 1.9 meters.
A: Yes, the adjustable angle locks allow you to alternate between inner (concave) and outer (convex) curves on the same screen wall.
A: Divide 360° by the angle of each cabinet (e.g., 360 / 15° = 24 cabinets). Our flexible LED screen locks make this calculation precise.
A: The Flex Series (Die-cast cabinet) is better for rental because it is structural, self-supporting, and faster to rig than magnetic soft modules which require a custom steel frame.
A: Yes, the 500×500mm rental cabinet design is compatible with our standard Metastar series for mixed creative layouts.
A: Prices vary by volume and specs. [Contact Us] for a personalized quote based on your square footage needs.
