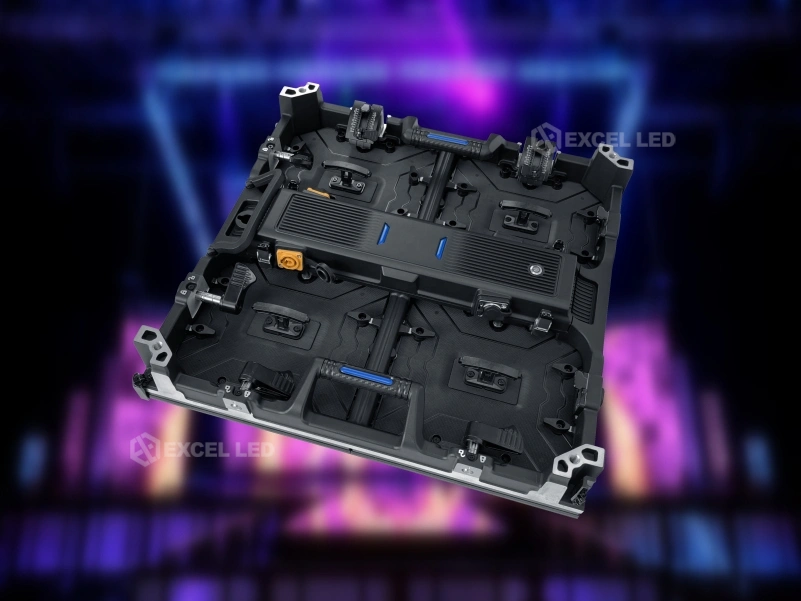

500×500mm Front Service Rental LED Screen - Metastar Series
- Pixel Pitch P1.95/2.6/P2.9/P3.91/P4.81
- 250×250 mm Seamless Splicing LED Module
- Easy Maintenance 500×500mm Front Service Rental LED Screen
- High-Resolution Front Service Indoor Rental LED Screen
- High weatherproof Front Service Outdoor Rental LED Screen
- Quick Installation
- Portable and Mobile Design
- One-stop Complete Solution

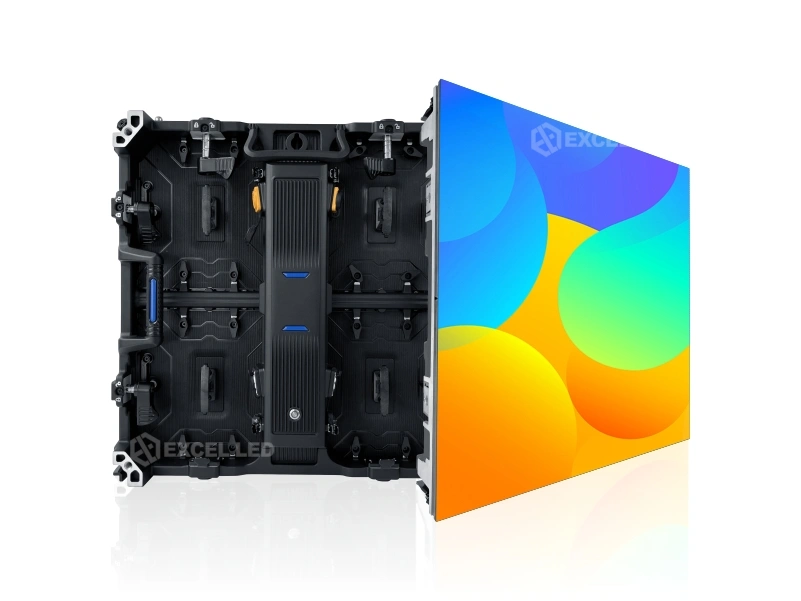

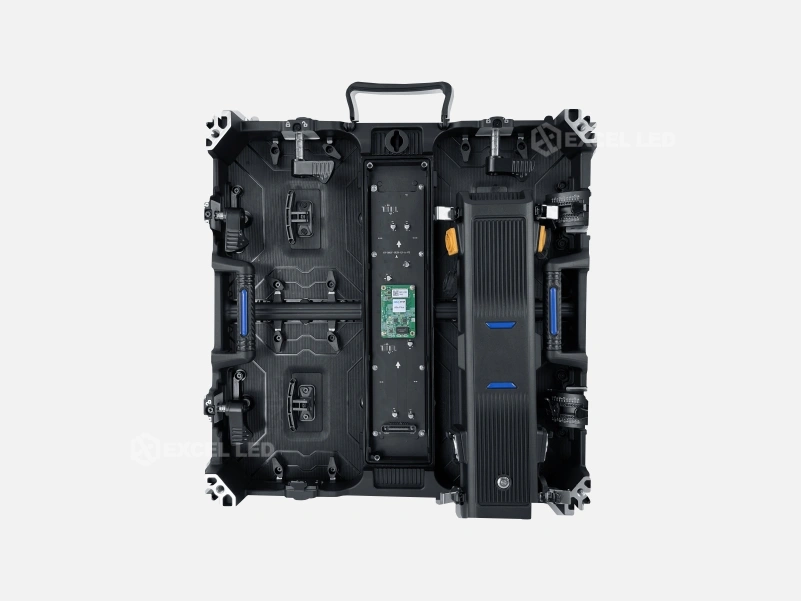

The Metastar series 500×500mm Front Service Rental LED Screen is a cabinet that can be magnetically attached for both front and rear maintenance, and its biggest feature is that the modules are truly seamless, making it a unique rental screen.
500×500mm Front Service Rental LED Screen

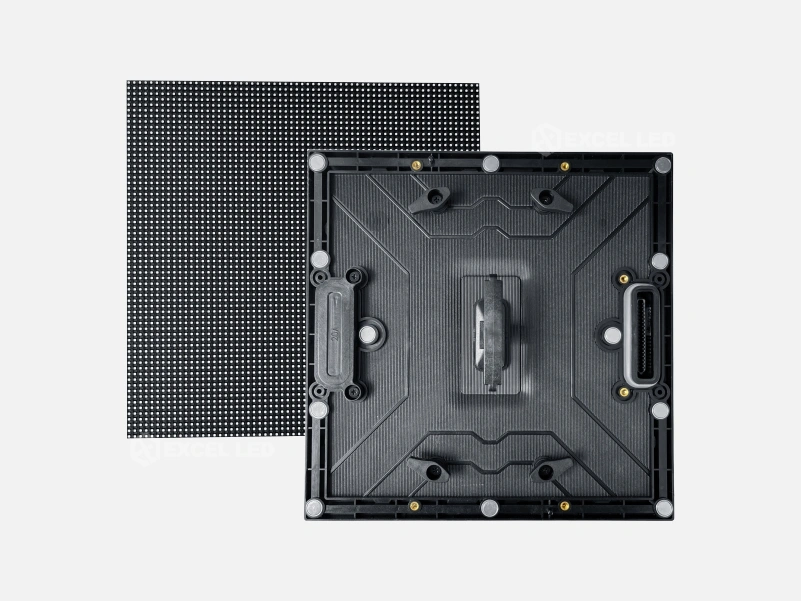

Seamless Splicing LED Module of the 500×500mm Rental LED Screen
The Metastar Series 250×250 mm LED modules utilize unique technology to achieve a deeper ink color and smaller seams, making the entire cabinet appear as a single module, virtually indistinguishable to the naked eye.
This enables better seamless splicing, enhancing the image clarity and texture of the 500×500mm rental LED screen.

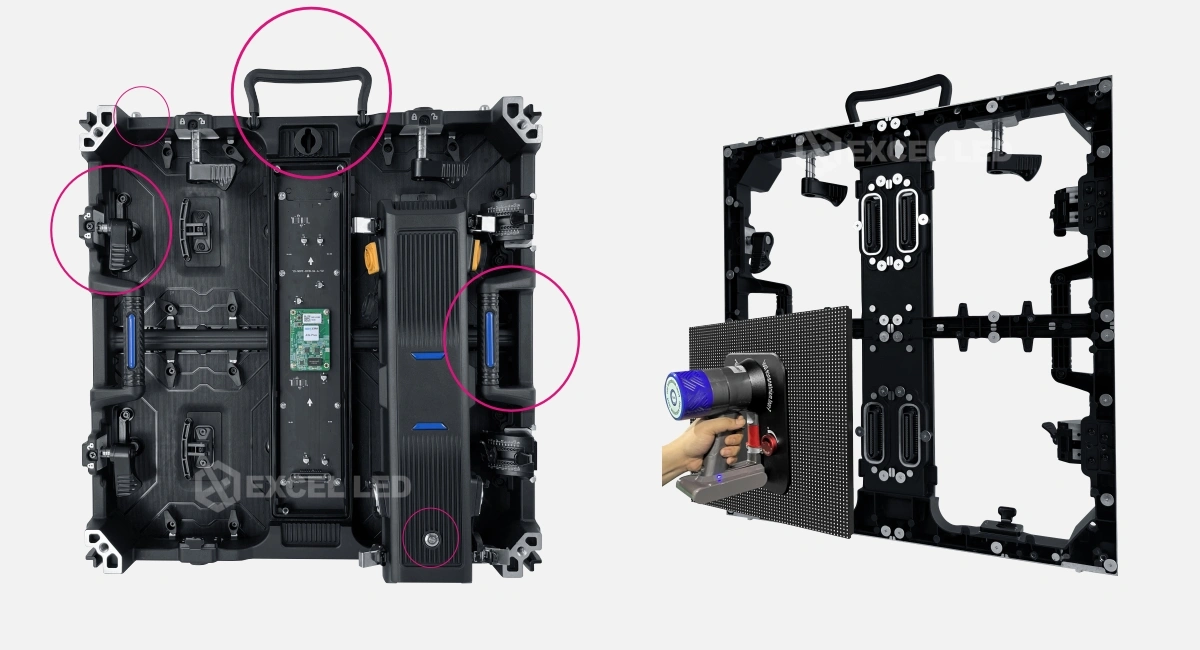

Easy Maintenance of the 500×500mm Front-Service Rental LED Screen
The Metastar Series 500×500mm front service rental screens are magnetic modules that support front maintenance and feature an integrated back cover for quick replacement and maintenance.

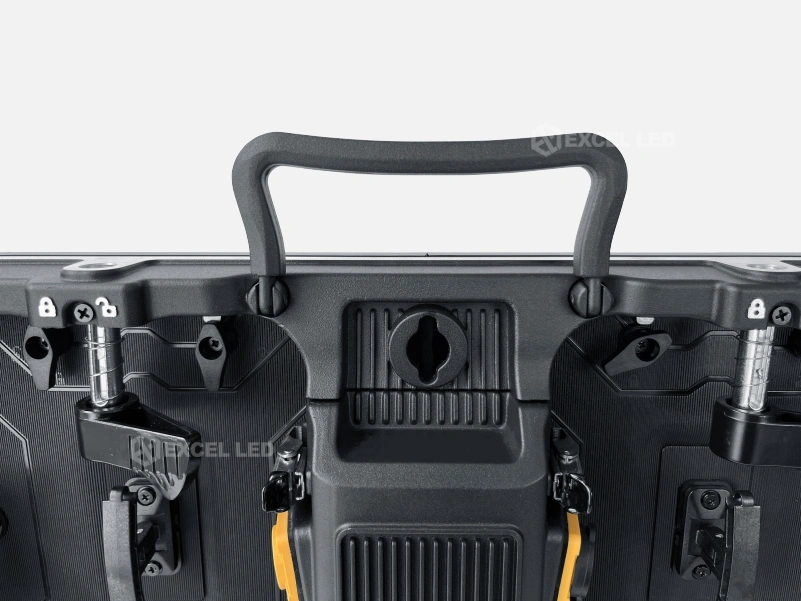

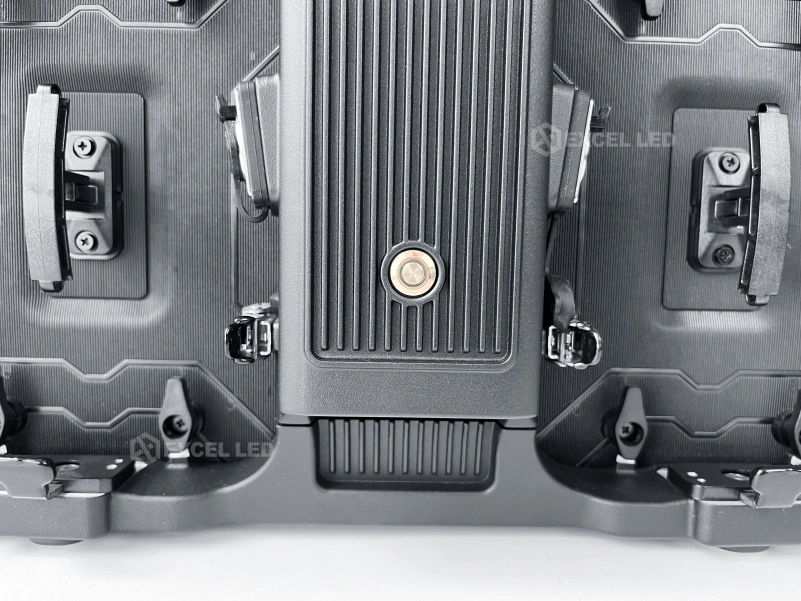

A cabinet aging test button promptly detects problems, while the module includes safety locks and handles for enhanced maintenance safety.

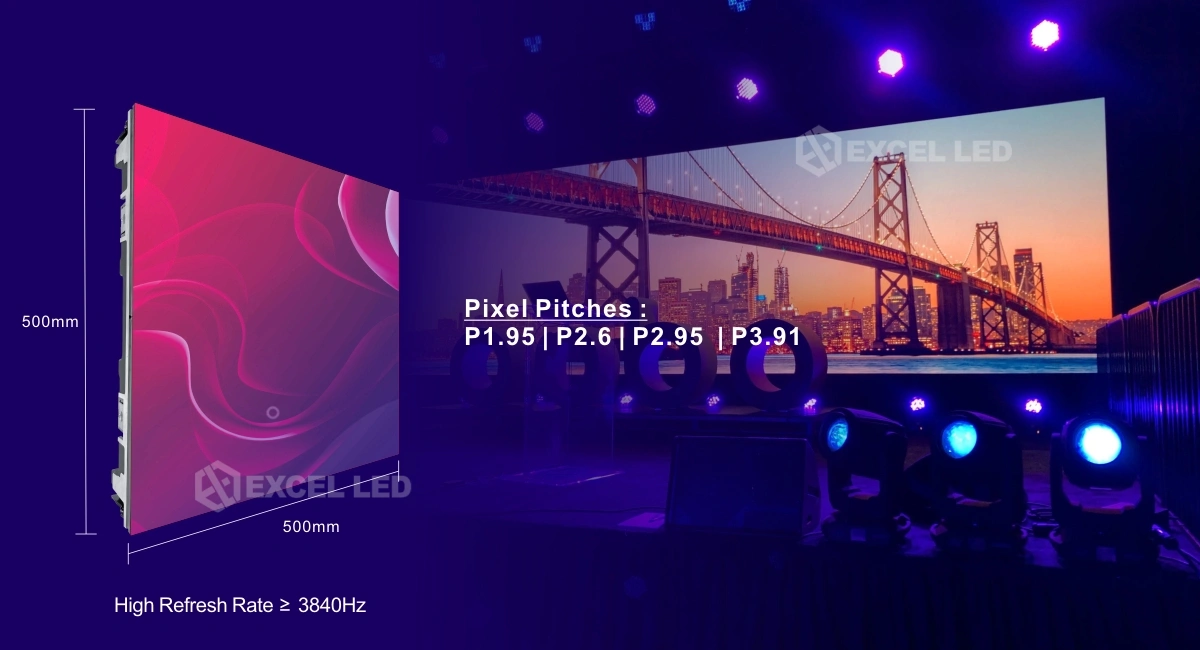

Front Service Indoor 500×500mm Rental LED Screen
The brightness of an indoor 500×500mm front service rental LED display should not be too high (to adapt to the indoor environment), and a high refresh rate (≥3840 Hz) is required. Excellent grayscale performance provides a smooth visual experience for live indoor performances.
Pixel pitches are available in P1.95/2.6/P2.9/P3.91, offering high resolution, good contrast, and detailed images, making them suitable for indoor applications such as stages, conference rooms, and exhibition halls for close-range viewing.

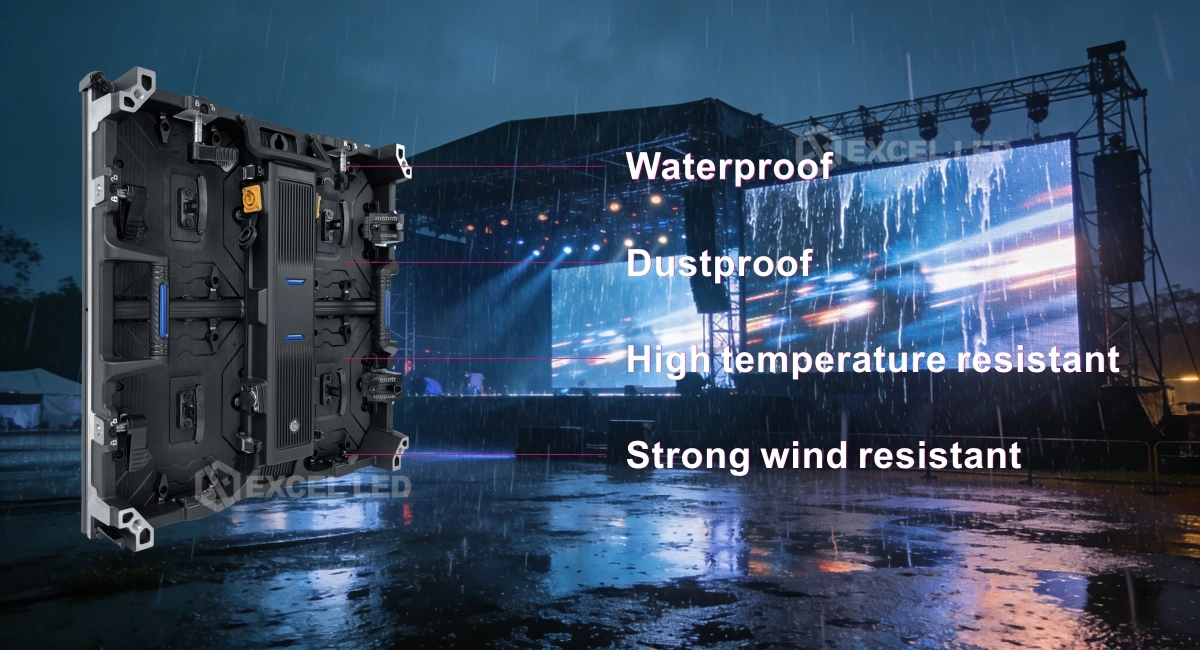

Front Service Outdoor 500×500mm Rental LED Screen
Front-maintenance outdoor 500×500mm rental LED screens have pixel pitches of P2.6/P2.9/P3.91, with brightness typically ranging from 4,500 to 6,500 nits (cd/m²). They support automatic dimming and remain clearly visible even in direct sunlight.
They possess an IP65 or higher waterproof and dustproof rating, resisting rain, dust, high temperatures, and strong winds, adapting to various harsh weather conditions.

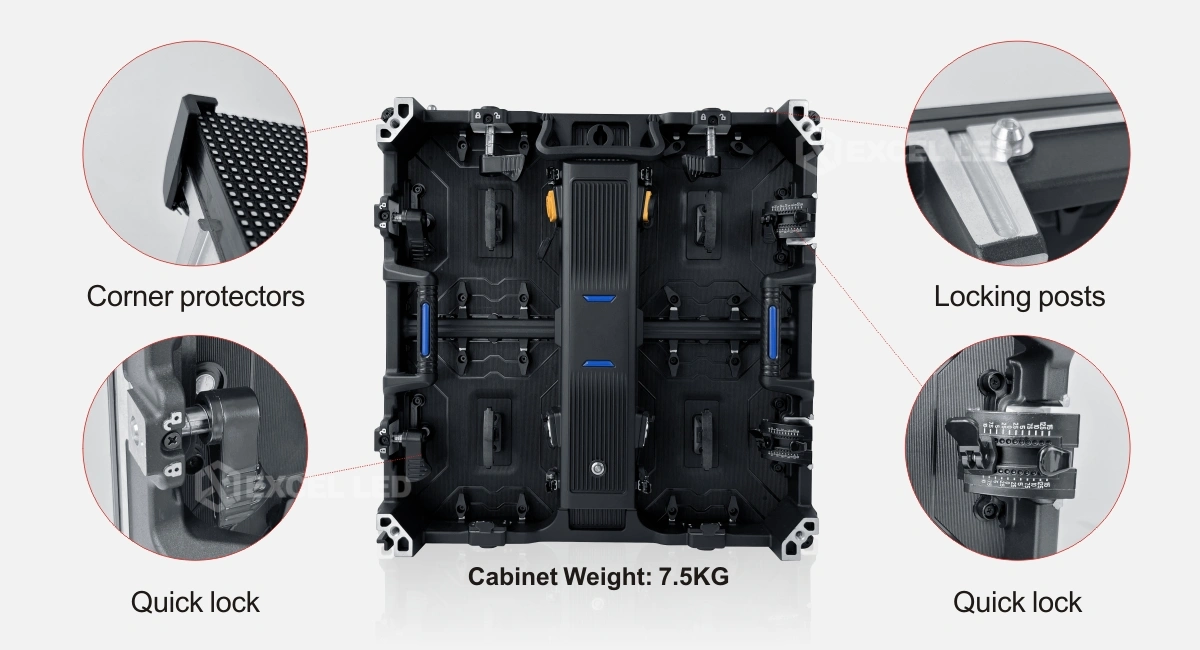

Quick Installation of the 500×500mm Rental LED Screen
The front-maintenance 500×500mm rental LED display utilizes lightweight materials such as die-cast aluminum cabinets, with each cabinet typically weighing only 7.5 kilograms and having a thickness of just 8-10 centimeters, reducing installation difficulty.
Equipped with corner protection devices, quick-locking clamps, and positioning pins, it allows for fast and precise installation, improving efficiency.

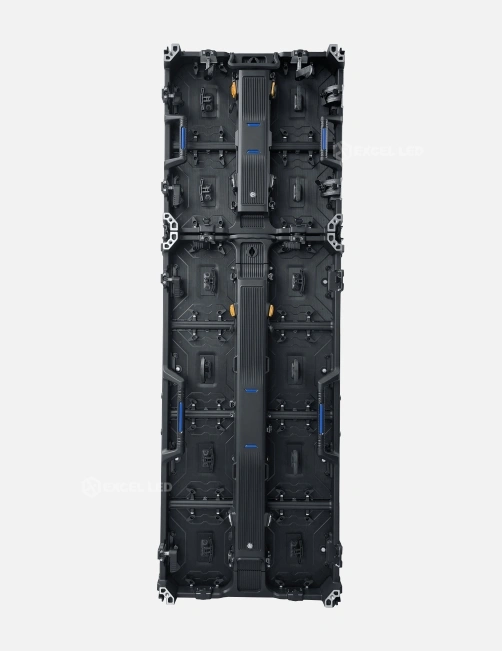

Portable and Mobile 500×500mm Rental LED Screen
The Metastar Series, as a modular 500×500mm rental LED screen, features lightweight and thin cabinets, reducing transportation and handling difficulties.
The internally reinforced, shock-resistant structure and flight cases with built-in wheels also facilitate the transportation and movement of rental LED walls.
Innovative E-Corner Design for the 500×500mm Front Service Rental LED Display
While the 500×1000mm panels quickly build up the main massive wall, the agile 500×500mm cabinets perfectly pair with our exclusive E-Corner structure for a flawless arc transition.
This customized curved module locks directly into the 500mm cabinet, allowing you to easily integrate stunning rounded corners into your mixed-size Front Service Rental LED Display without bulky custom steel brackets.
One-stop Complete Solution for the 500×500mm Rental LED Screen
The Metastar series 500×500mm rental LED wall offers a complete, one-stop solution. It comes equipped with a reliable control system, spare parts, optional rigging, flight cases, and professional transportation services.
Furthermore, we provide a three-year after-sales warranty, ensuring worry-free use and long-term support for every rental project.
Real-world cases and applications
The Metastar series 500×500mm front-maintenance rental display features a high refresh rate and wide viewing angle, providing smooth, flicker-free visuals and ensuring clear and vibrant images from all angles.
It is suitable for indoor and outdoor stage performances (such as concerts and weddings), commercial exhibitions (such as product launches and car shows), and outdoor events (such as sporting events and roadshows), and can be used to build temporary indoor and outdoor creative video walls.
Specification of Metastar Series
| Indoor | Outdoor | ||||||
| Item | 1.95 | 2.604 | 2.97 | 2.604 | 2.97 | 3.91(16S) | 3.91(8S) |
| Pixel Composition(SMD) | 1515 | 1515 | 2121 | 1415 | 1415 | 1921 | 1921 |
| Pixel Pitch(mm) | 1.95 | 2.604 | 2.97 | 2.604 | 2.97 | 3.91 | 3.91 |
| Module Resolution(W×H) | 128×128 | 96×96 | 84×84 | 96×96 | 84×84 | 64×64 | 64×64 |
| Module Size(mm) | 250×250×15 | ||||||
| Module Weight(kg) | 0.58 | ||||||
| Module Qty/Cabinet(W×H) | 2×2 | ||||||
| Cabinet Resolution(W×H) | 256×256 | 192×192 | 168×168 | 192×192 | 168×168 | 128×128 | 128×128 |
| Cabinet Size(mm) | 500×500×87 | ||||||
| Cabinet Area(㎡) | 0.25 | ||||||
| Cabinet Weight(kg/cabinet) | 7.5 | ||||||
| Cabinet Material | Die-cast Aluminium | ||||||
| Cabinet Density（dot/m²） | 262144 | 147456 | 112896 | 147456 | 112896 | 65536 | 65536 |
| IP Rating | IP20 | IP65 | |||||
| White Balance Brightness(nits) | ≥700 | ≥700 | ≥800 | ≥700 | ≥700 | ≥700 | ≥800 |
| Color Processor(bit) | 14 | 16 | 16 | .16 | |||
| Color Temperature(K) | 6500-9000 | 6500-9000 | |||||
| Visual Angle(H/V) | 140°/ 120° | 140°/ 120° | |||||
| Luminous point centre deviation | ＜3% | ＜3% | |||||
| Luminance uniformity | ≥97% | ≥97% | |||||
| Chromaticity uniformity | Within ±0.003Cx, Cy | Within ±0.003Cx, Cy | |||||
| Contrast Ratio | ≥5000:1 | ≥5000:1 | |||||
| The Max Power Consumption(W/㎡) | 500 | 500 | 500 | 700 | 700 | 700 | 800 |
| Average Power Consumption(W/㎡) | 168 | 168 | 168 | 235 | 235 | 235 | 268 |
| Input Voltage | AC100~240V | AC100~240V | |||||
| Frequency(Hz) | 50&60 | 50&60 | |||||
| IC Driving(s) | 1/32 | 1/32 | 1/28 | 1/24 | 1/28 | 1/16 | 1/8 |
| Refreshing Ratio(Hz) | 3840 | 3840 | |||||
| Maintenance Method | Front and Rear | Front and Rear | |||||
| Lifespan(hrs) | 100,000 | 100,000 | |||||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH (Non Condensing) | -20℃-60℃/10%RH-98%RH (Non Condensing) | |||||
Tech Support
Excel LED has a professional technology support team to solve any tech problem for you; tech support covers installation, configuration, and anything about your 500×500mm rental LED screen. Please check our contact us page. Or turn to the Rental LED Screen page to know more!
FAQs
A compact, modular LED cabinet (500×500 mm) optimized for rental events, allowing front-side access for all maintenance. Its lightweight aluminum build supports seamless indoor close-up viewing or outdoor high-brightness displays, perfect for dynamic setups like stages or exhibitions.
Access everything from the front: modules, power units, and cards pull out with simple tools in minutes, no rear disassembly required. This minimizes downtime during live events, with hot-swap options keeping displays running uninterrupted.
Typical setup includes P2.5-P5 pixel pitches, 1920-3840Hz refresh (flicker-free for cameras), 140° viewing angles, and >100,000-hour lifespan. Cabinets weigh ~15-20kg, consume low power (100-240V), and support curved or stacked configurations.
Assembly is rental-ready: the quick-lock system lets 2-3 people build a full screen in 30-60 minutes using trusses or stands. Plug-and-play with HDMI/SDI inputs for instant live feeds, enabling arcs, walls, or custom shapes on-site.

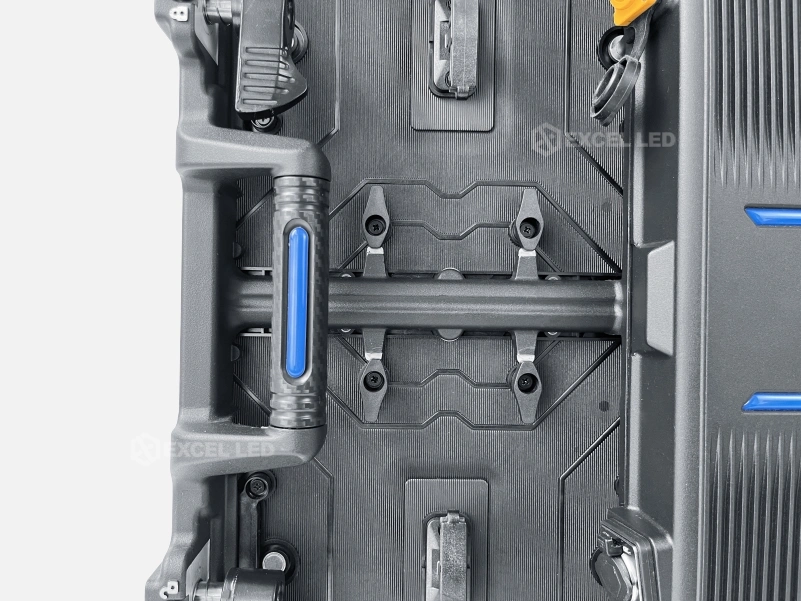

The 500×500mm rental LED display features ergonomic handles, quick locks, and positioning pins for quick and accurate installation.
Front- or rear-maintenance access, module handles, and smart power design help technicians quickly replace modules, power supplies, and receiving cards during events.
Tailored for high-mobility scenarios—concerts, trade shows, weddings, conferences—where portability and creativity matter. Its lightweight transport and rapid reconfiguration shine in temporary installs versus permanent fixed screens.
