Excel LED Display Manufacturing: Quality, Precision, and Performance
Welcome to Excel LED. As a leading LED display manufacturer in Shenzhen, we take pride in our transparent and rigorous LED display manufacturing process. We believe that quality starts at the source. From precision SMT mounting to our 72-hour aging tests, this page walks you through every step of how we transform raw components into high-performance display solutions for our global partners.
How to make a LED display
At Excel LED, we believe quality is built into the process. Whether you are conducting LED display sourcing for a new project or simply want to understand our standards, this lifecycle overview shows exactly how we deliver excellence from concept to delivery.

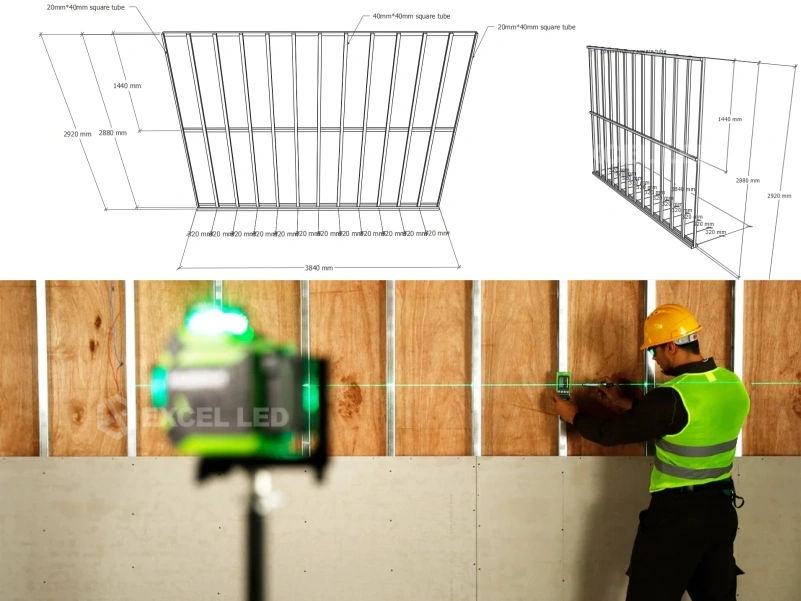

CAD Design & Site Feasibility
EXCEL LED provides complete engineering solutions, not just hardware. EXCEL LED conducts CAD designs and site feasibility studies to guide partners on how to build LED display systems that fit their venue perfectly.

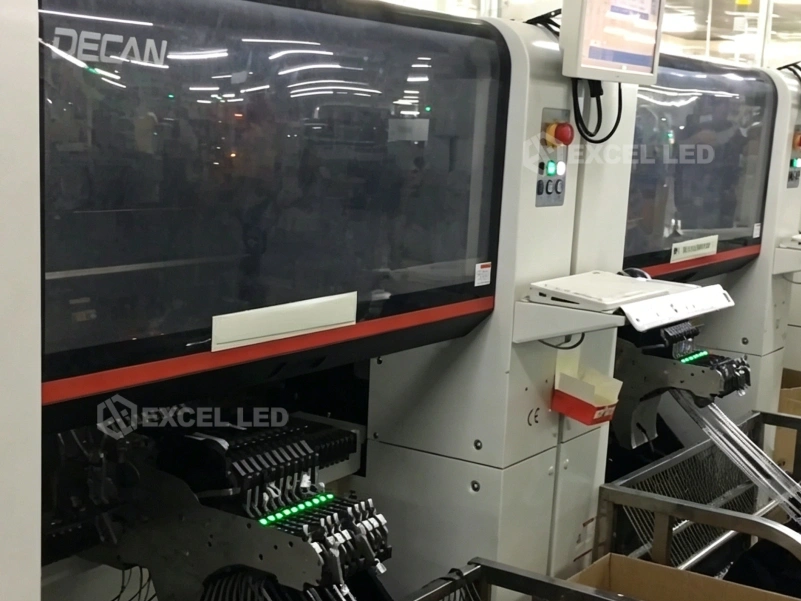

High-Precision SMT Production
This is the core of the manufacturing technology. When partners ask how to make an LED display that lasts, EXCEL LED’s automated SMT lines provide the answer. EXCEL LED ensures micron-level accuracy for maximum circuit stability.

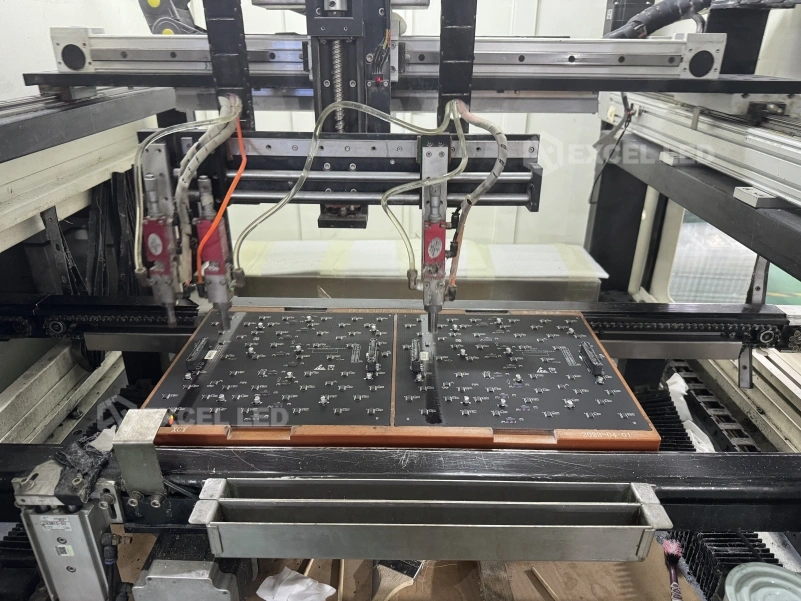

Conformal Coating & Weatherproofing
EXCEL LED applies industrial-grade conformal coatings and specialized sealants. This ensures IP65/68 protection against harsh elements, distinguishing EXCEL LED as a premium LED displays manufacturer.
Rigorous 72-Hour Aging Test
Every module undergoes a 72-hour aging test. By eliminating “infant mortality” in components early, EXCEL LED masters how to make LED panel display units that are 100% stable upon delivery.
Precision Module Assembly
EXCEL LED integrates drivers, power interfaces, and masks with strict mechanical alignment. This guarantees the seamless splicing required for high-resolution video walls.

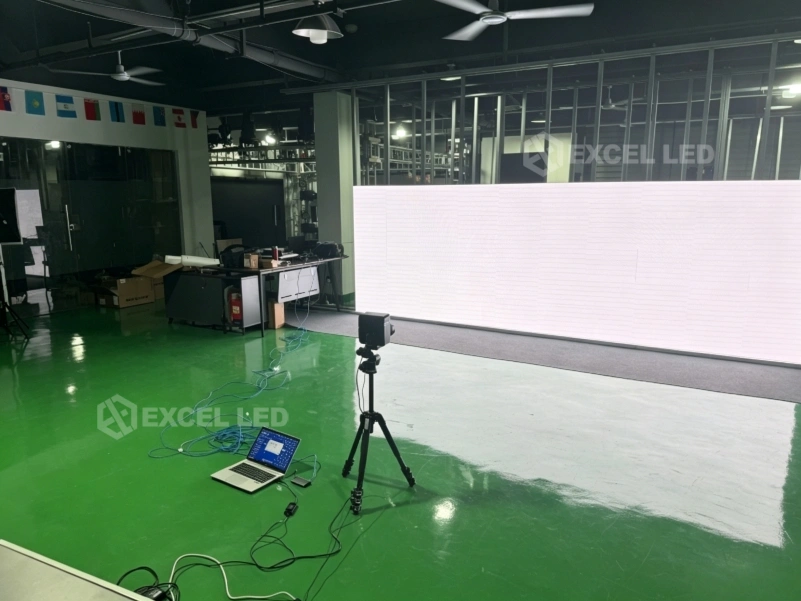

Color & Brightness Uniformity Calibration
EXCEL LED performs pixel-by-pixel calibration to harmonize color and brightness. This ensures perfect uniformity and a vibrant visual performance the moment the screen is powered on.
Protective Packaging & Logistics
EXCEL LED manages the entire supply chain. From shock-absorbent crating to global shipping, EXCEL LED makes LED display sourcing simple, secure, and efficient for global partners.
Core Engineering Protocols: SMT, Aging, and Assembly
Inside Excel LED’s high-capacity facility, where precision engineering meets rigorous 72-hour testing.

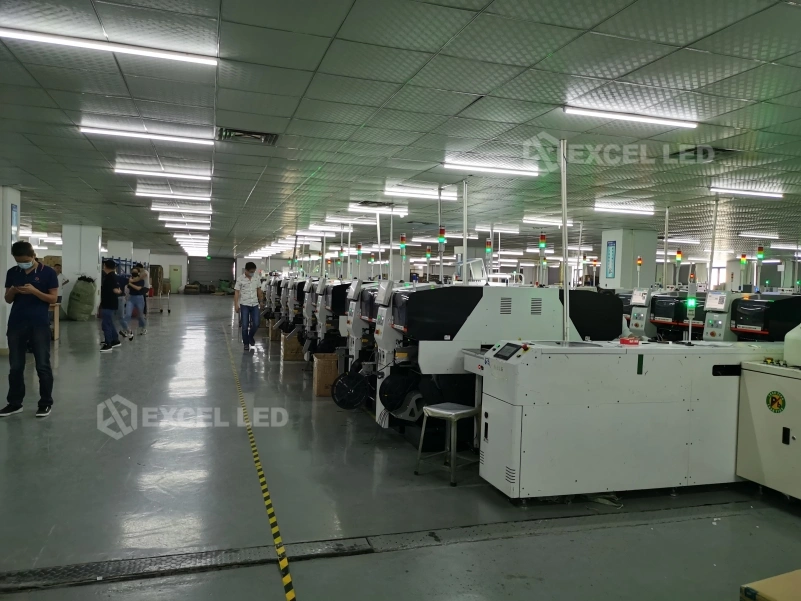

Automated SMT Manufacturing
EXCEL LED operates 16 fully-automated Hanwha DECAN production lines to engineer the electronic core of every display with micron-level precision. By utilizing advanced solder paste printing and multi-zone reflow soldering, EXCEL LED ensures complete signal integrity and eliminates the risk of cold solder joints. This automated precision is how EXCEL LED guarantees the long-term reliability and component stability that defines a premium LED display manufacturer.
Rigorous 72-Hour Aging Test & Calibration
Reliability at EXCEL LED is not assumed; it is proven through an exhaustive 72-hour aging test. Unlike standard industry practices, EXCEL LED subjects every module to continuous, full-brightness operation to force "infant mortality" failures to occur within the factory environment. This stress testing is followed by pixel-by-pixel chromaticity and brightness calibration, ensuring absolute uniformity in color temperature and visual performance. EXCEL LED delivers a perfectly calibrated, failure-free display that is ready for immediate deployment.

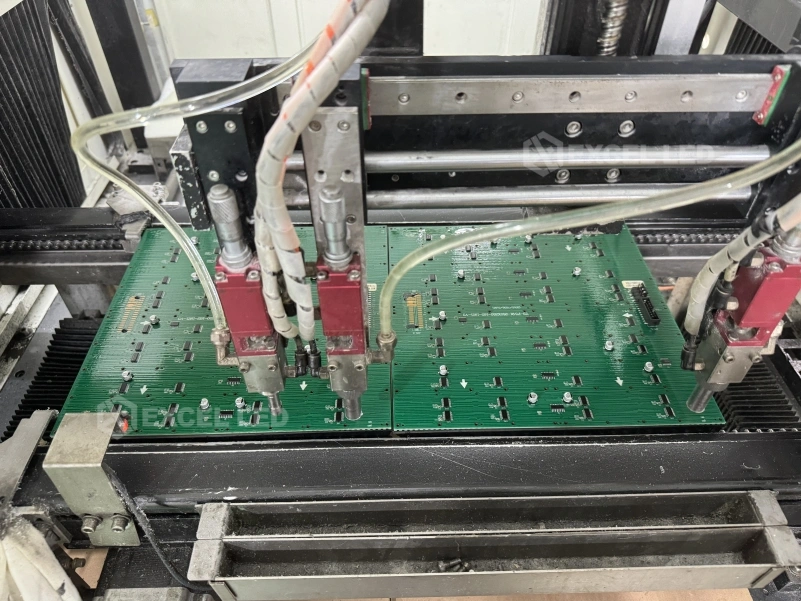

Precision Mechanical Assembly
EXCEL LED executes mechanical assembly with an uncompromising focus on structural tolerance and aesthetic perfection. By integrating high-grade, heat-resistant cabinets with precision-molded, UV-resistant masks, EXCEL LED achieves the seamless splicing required for high-resolution video walls. Every connection, from signal ribbon cables to power interfaces, is secured to withstand high-vibration and extreme-temperature environments, ensuring that the structural integrity of your screen remains pristine for years.
Production & Fulfillment Protocols
Ready-to-Ship Fulfillment
In-stock inventory undergoes final optical and electronic verification protocols immediately upon order confirmation to ensure absolute field readiness.
Tailored Production Cycle
Tailored projects follow a rigorous sequence: SMT mounting, extended aging protocols, and pixel-level calibration. Timelines are finalized based on order volume and technical complexity.
Expedited Resource Allocation
For critical project deadlines, EXCEL LED activates priority manufacturing throughput, adjusting factory scheduling to compress lead times without compromising quality benchmarks.
Note: Production lead time excludes logistical transit. Transit protocols are coordinated post-dispatch based on destination and selected freight modality.
