OK Series

Outdoor LED Billboard 960x960 — Cost-Effective OK Series for DOOH Advertising Networks

    • Standard 960x960mm die-cast aluminium cabinet for universal fitting

    • Universal 480*320mm modules simplifying long-term spare parts inventory

    • Lightweight design (approx. 28kg) reducing heavy structural requirements

    • All-weather IP65 waterproof rating for stable 24/7 outdoor operation

    • High brightness (6500 cd/m²) cutting through direct sunlight

    • Front and rear dual maintenance wherever front or rear access is available

Introduction

Finding the right balance between upfront investment and long-term durability is the biggest challenge in the Digital Out-Of-Home (DOOH) advertising industry. The OK Series 960×960 outdoor LED billboard is engineered specifically to solve this problem. Utilizing the standard 960x960mm cabinet and 480x320mm modules, this series delivers premium high-brightness visuals without the premium price tag.

Its lightweight design significantly reduces the cost of steel structures for building facades and roadside pillars. Furthermore, your technicians keep their existing workflow, because the receiving cards operate with industry-standard controllers and compatibility is confirmed at the card model and firmware level, including  Novastar, Linsn, and Colorlight. For operators looking to rapidly scale their advertising networks, this is a practical entry point into our Outdoor LED Display Solutions.

Outdoor LED Billboard 960×960: Quick Answers Before You Specify

What is a 960×960 outdoor LED billboard?
A modular video wall built from 960 x 960 mm cabinets, sealed for permanent outdoor use and tiled to whatever width and height the site allows. Because 960 x 960 mm is a widely used cabinet format across the LED industry, crews already know the handling, and second-source cabinets keep the same footprint.

How much does it cost?
Screen-only pricing for this class of cabinet sits between roughly USD 400 and USD 1,500 per square meter depending on pixel pitch. The full project — steel structure, power distribution, freight, installation — is usually a separate line item. Excel LED publishes the 2026 pitch-by-pitch ranges on our outdoor LED screen price guide.

Which pixel pitch should I start with?
Match the pitch to the closest normal viewing distance: P10 from about 10 m, P8 from 8 m, P6 from 6 m and P5 from 5 m. For highway and rooftop boards viewed at 15 m or more, P8 and P10 normally deliver the same perceived sharpness at a lower cost per square meter.

Will it work with the control system I already use?
The OK Series ships with receiving cards that operate with Novastar, Linsn and Colorlight systems. Compatibility is verified at the receiving-card model level, not just the brand level — send us the card model and firmware version and we will confirm before the order is placed.

Can it be serviced without scaffolding?
Yes. Modules, receiving cards and power supplies are reachable from the front with a service tool, and from the rear where the structure allows rear access. That matters on wall-mounted and pole-mounted sites where a lift is expensive.

What is it best used for?
Roadside and highway billboards, building facades, petrol-station and plaza signage, and multi-site DOOH networks where capital efficiency per square meter decides the business case.

Why Choose the OK Series 960x960mm Screen?

When deploying dozens of screens across a city, capital efficiency is everything. The 960x960mm format is widely used across the LED industry, so installation crews are usually already familiar with its dimensions, which shortens deployment.

By focusing on essential, high-quality components and stripping away unnecessary gimmicks, the OK Series provides a
cost-effective outdoor LED display designed for steady, vibrant ad playback. It significantly lowers your total cost of ownership (TCO) by reducing power consumption and cutting down installation time.

How Much Does a 960×960 Outdoor LED Billboard Cost in 2026?

The screen is priced per square meter, not per cabinet. One 960 x 960 mm cabinet covers 0.92 m², so a board measuring 6.72 m x 2.88 m is seven cabinets wide by three high: 21 cabinets, about 19.4 m². The table below uses the pitch ranges Excel LED publishes in its 2026 outdoor LED display price guide. They are screen-only figures for planning, not a quotation.

Pixel pitchClosest usable viewing distanceTypical applicationScreen price per m² (USD)
P1010 m / 33 ftHighway and rooftop mega-boards400 – 800
P88 m / 26 ftRoadside billboards, large facades400 – 800
P66 m / 20 ftStandard roadside boards, plaza signage600 – 1,100
P55 m / 16 ftRetail facades, street-level advertising800 – 1,500

The OK Series itself is manufactured in P5.7, P6.667, P8 and P10. The pitch classes above are the standard brackets used across the industry, so they map to the nearest OK Series model.

What the screen price does not include

Buyers are often surprised by the gap between the screen quotation and the final project cost. In our experience the following items are budgeted separately, and on a permanent billboard the structure is frequently the second largest line:

  • Steel structure and foundation — sized by wind load and by total screen weight. The 960 x 960 cabinet at 28 kg per unit keeps this line lower than heavy iron-cabinet alternatives.
  • Power distribution and cabling — sizing depends on maximum load, not average load. See how LED billboard power consumption is calculated.
  • Control and media — sending card, player or cloud platform, plus the content-management licence if one is used.
  • Freight, duties and on-site installation — volume and destination drive most of the variance.
  • Permits and grid connection — a local cost that varies by municipality.

For a faster number, send the planned width, height, viewing distance and destination country through the form on this page. We quote the screen, the control package and the recommended structure loads in one document.

7 Core Technologies of This 960x960 Outdoor LED Screen

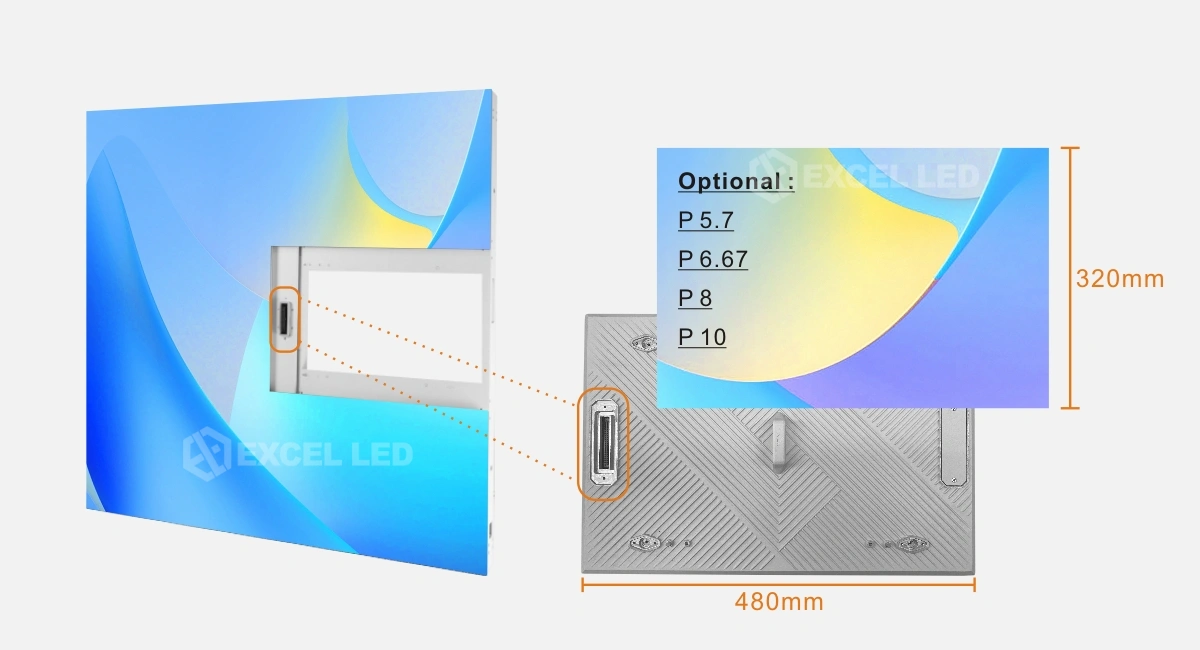

Universal 480*320mm Ecosystem

  • The Feature: The entire OK series utilizes the global standard 480*320mm LED module size across various pixel pitches.

  • The Benefit: Significantly simplifies your spare parts inventory and allows for future resolution upgrades without changing the main cabinet structure.

Ultra-Lightweight Cabinet Profile

  • The Feature: Engineered with advanced aluminum, driving the cabinet weight down to approximately 28kg.

  • The Benefit: Minimizes the load-bearing requirements on buildings, reducing the steel framework you need and heavy lifting equipment rentals.

Technician handling lightweight commercial LED billboard cabinet

All-Weather IP65 Protection

  • The Feature: Modules and cabinets are fully sealed with premium weather-resistant gaskets and anti-corrosion coatings.

  • The Benefit: Designed for sealed operation in torrential rain, snow and dust, keeping your advertising uptime consistent through the seasons

IP65 fixed installation screen operating in heavy rain

High-Efficiency Power Architecture

  • The Feature: Integrates high-conversion-rate power supplies that minimize heat generation and energy loss.

  • The Benefit: Delivers lower monthly electricity bills and extends the overall lifespan of your LED billboard investment by preventing internal overheating.

High-efficiency power supply inside energy-saving DOOH display

Universal Control System Integration

  • The Feature: Built with smart receiving cards that operate with Novastar, Linsn and Colorlight.
  • The Benefit: Your team keeps using its preferred software; the receiving-card model and firmware are confirmed before the order is placed.
960x960mm outdoor LED screen compatible with Novastar controllers

Fast Front & Rear Serviceability

  • The Feature: The mechanical design allows technicians to remove modules, receiving cards, and power supplies from either side.

  • The Benefit: Cuts maintenance time to minutes, ideal for wall-mounted installations with no rear access.

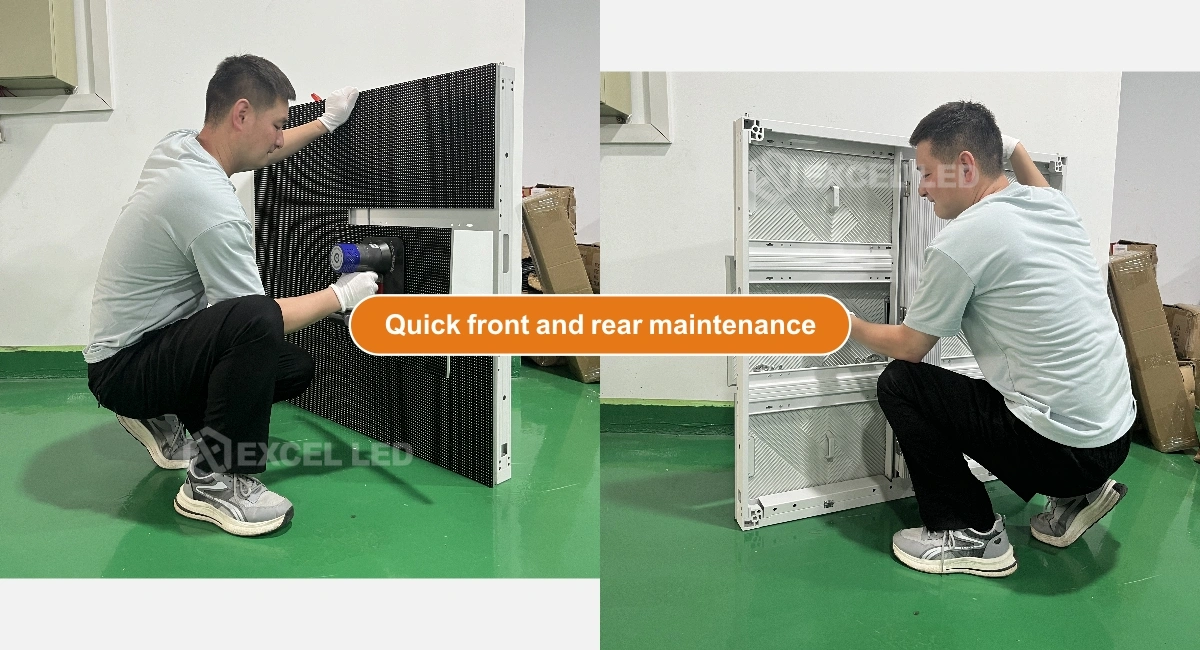

Technician performing maintenance on front service fixed LED wall

Direct-Sunlight High Brightness

  • The Feature: Equipped with premium outdoor SMD lamps delivering 6500 cd/m² of brightness.

  • The Benefit: Ensures your advertising content remains vibrant, sharp, and highly visible even under direct noon sunlight.

6000 nits high brightness outdoor LED video wall in sunlight

Control System and Spare-Parts Compatibility

The OK Series is an open-platform cabinet: the receiving card determines which control system the screen runs on, and it can be matched to the system the integrator already supports. Compatibility is confirmed per card model, because two cards sold under the same brand can differ in firmware, scan support and port layout.

SystemStatusWhat to confirm before ordering
Novastar (NovaLCT)SupportedReceiving-card model and firmware; verify it matches the sending card
Linsn (LEDStudio)SupportedReceiving-card model; confirm scan mode support for the chosen pitch
Colorlight (LEDVISION / cloud)SupportedCard model, plus cloud plan if remote publishing is required
Third-party cloud playersConditionalProtocol and API support must be checked case by case
Existing screens on siteConditionalMixing brands on one sending card needs a cabinet-mapping review first

Spare parts worth stocking

For a multi-site advertising network, stocking spares at the operating base is cheaper than express-shipping modules later. A common planning pattern for a first site is 2 to 4 spare modules, one spare receiving card and one spare power supply per screen, scaled up with the number of sites. Final quantities should be set against your service-level target and the distance to the nearest technician.

Because the cabinet uses a standard module format, spare modules ordered later keep the same mechanical fit. That is the main practical advantage of a standardised 960 x 960 platform over a proprietary cabinet.

Ideal Use Cases for the 960x960 LED Billboard

  • Roadside & Highway Billboards:

    • The Scene: Large-scale advertising structures requiring high visibility and low structural weight.

    • Product Support: The lightweight 960x960mm cabinet reduces the required steel column thickness, significantly lowering initial construction costs.

  • Commercial Plaza & Mall Facades:

    • The Scene: Wall-mounted screens for retail branding and promotions.

    • Product Support: The front service capability allows the screen to be mounted flush against the building, saving space and improving aesthetics.

  • Digital Street Furniture & Smart Poles:

    • The Scene: Pedestrian walkways needing crisp, reliable digital signage.

    • Product Support: The 480x320mm modules can be easily configured into smaller, custom sizes for street-level advertising.

Roadside & Highway Billboards

Commercial Plaza & Mall Facades

Digital Street Furniture & Smart Poles

Installation and Service Workflow

The cabinet is designed so that the physical build and the service routine use the same access points. For the structural side — wind load, base design, lifting and electrical protection — see our outdoor LED display installation guide.

  1. Structure survey. Confirm the mounting plane, wind-load requirement and the total screen weight including cabinets and steel.
  2. Cabinet mapping. Fix the screen width and height in whole cabinets so the resolution divides cleanly across the sending-card outputs.
  3. Power and data routing. Size cable and breakers against maximum load, not average load, and separate data runs from mains where the layout allows.
  4. Commissioning. Run a full-white and grey-scale test, check for dead pixels, and record the receiving-card and cabinet mapping files as a baseline for future service.
  5. Service routine. Modules and power supplies are replaced from the front with a service tool; rear access is used where the structure permits. See our outdoor LED display maintenance schedule for interval guidance.

Two field details decide how quickly a screen comes back after a fault: whether the cabinet mapping file was archived at commissioning, and whether spare modules are already on site. Both cost almost nothing to arrange upfront.

More Details

Video Center of OK Series

Playlist

3 Videos

Specifications for the OK Series 960x960 Outdoor LED Screen

VALUEP5.7P6.667P8P10
PIXEL PITCHP5.7MMP6.667MMP8MMP10MM
BRIGHTNESS6500 cd/m²6500 cd/m²6500 cd/m²6500 cd/m²
GRAY SCALE65536655366553665536
REFRESH RATE3840 Hz3840 Hz3840 Hz3840 Hz
PIXEL PER CABINET168×168144X144120X12096X96
PIXEL PER SQM30625224981562510000
VIEWING ANGLE140/140 degrees140/140 degrees140/140 degrees140/140 degrees
POWER CONSUMPTION250W/650W250W/650W250W/650W250W/650W
IP RATEIP65IP65IP65IP65
VOLTAGE100/240V100/240V100/240V100/240V
CABINET SIZE960X960X77MM960X960X77MM960X960X77MM960X960X77MM
CABINET MATERIALALUMINUMALUMINUMALUMINUMALUMINUM
CABINET WEIGHT28 kg28 kg28 kg28 kg

OK Series vs B Series: Which 960×960 Outdoor LED Billboard Fits Your Project?

Two of the 960 x 960 mm platforms Excel LED builds are directly comparable for billboard work. They share the cabinet format but are engineered for different purchase decisions, and choosing the wrong one usually shows up as either unnecessary cost or unnecessary limitation. Every row below is taken from the specification table published on each series page.

SpecificationOK SeriesB Series
Cabinet materialAluminiumMagnesium alloy
Cabinet size960 x 960 x 77 mm960 x 960 x 120 mm
Cabinet weight28 kg28 kg
Pixel pitch optionsP5.7, P6.667, P8, P10P3, P4, P5, P6, P8, P10
Brightness6,500 nits6,000 nits
Refresh rate3,840 HzNot stated on the published B Series spec table
Viewing angle140 / 140 degreesNot stated on the published B Series spec table
IP ratingIP65IP65
Service accessFront and rearFront and rear
Typical buying motiveLower cost per m² for large networksFine pitch, curved and 3D builds, mounting flexibility

Choose the OK Series when

  • The site is a conventional flat billboard, facade or pole sign viewed from 5 m or more.
  • You are rolling out several screens and the decision is driven by cost per square meter and running cost.
  • P5.7 to P10 covers the required viewing distance, so fine pitch would add cost without adding perceived sharpness.

Choose the B Series magnesium alloy display when

  • You need P3 or P4 because the closest viewers are 3 to 4 m from the screen.
  • The structure is a curved corner or a naked-eye 3D landmark build — the B Series cabinet framework supports customised radians for corner splicing.

Before you choose the B Series, check the available depth: its cabinet is 120 mm deep against 77 mm for the OK Series. Where the wall is recessed, or the steel frame and pylon wrap are depth-limited, those 43 mm decide whether the cabinet fits at all, and the OK Series is the one that fits.

When neither is the right answer: if the screen must be dismantled and re-rigged repeatedly for touring events, a rental platform is the correct category rather than a fixed-installation billboard cabinet. Our outdoor LED display range lists the rental and stadium lines alongside these two, including further 960 x 960 mm series that differ in weight, protection and mounting behaviour.

Common Outdoor LED Billboard Faults and How to Diagnose Them

Most first-line faults on a fixed outdoor billboard fall into a small number of categories. The table below is the sequence our service team works through before anything is dispatched, because it resolves a large share of reports without a site visit.

SymptomMost likely causeFirst checkTypical fix
Whole screen black, power presentNo signal from player or sending cardPlayer output, then sending-card indicatorRestore source or reseat the data link
One cabinet or module darkLoose ribbon, failed receiving card or power supplySwap the module with a known-good oneReplace module, card or supply
Flicker or horizontal bandingRefresh or scan setting mismatch, or a marginal data cableCompare cabinet parameters against the commissioning fileReload correct parameters, replace cable
Colour cast on part of the screenModule batch difference or a failing driver channelIsolate the cabinet and compare against a neighbourReplace module, then recalibrate
Water ingress after heavy rainDamaged gasket, cable gland or cabinet sealInspect the cabinet edge and cable entry pointsReplace seal or gland; see the waterproofing guide
Overheating or brightness rollbackBlocked airflow or failed fan on ventilated buildsCabinet temperature and airflow pathClear the airflow path; see the heat dissipation guide

If the fault is not resolved by these checks, send the screen size, cabinet position and a photograph of the affected area. Faults on a mapped screen can usually be narrowed down from the mapping file before a technician is sent.

Call to Action (CTA):

Ready to Maximize Your Advertising ROI?
Don’t let overpriced screens and heavy steel structures drain your budget. Upgrade to the OK Series—a cost-effective, 960×960 outdoor LED screen. Compare our features and explore our Outdoor LED Display Solutions to scale your digital billboard network with confidence. Contact Excel LED today for a factory-direct quote!

Contact Excel LED Now!

Send your demand and get your detailed solution of project.

12 FAQs About the 960x960 Outdoor LED Billboard

  • A: The footprint is shared across many cabinet suppliers, so a second-source cabinet, a spare module bought two years later and the steel frame all fit the same grid. It also houses the 480x320mm module in a clean two-by-three arrangement with no cutting, which lowers manufacturing cost and keeps a cost-effective outdoor LED display.

  • A: Using a specialized T-wrench, technicians can easily unlock and remove individual LED modules from the front, exposing the power supply for rapid replacement.

  • A: Yes, provided the receiving-card model matches. Our screens use receiving cards that operate with industry-standard controllers including Novastar, Linsn and Colorlight, and we confirm the card model and firmware against your sending card before the order is placed.

    • A: For viewing distances of 5 to 15 meters, P5 offers excellent clarity. If the screen is viewed from 15+ meters away, P6 or P8 provides the exact same visual impact at a lower cost.

  • A: Not at all. The OK Series uses a die-cast aluminium cabinet. Casting gives the frame its torsional rigidity without welded seams, and weather resistance comes from the coating system and the IP65 sealing rather than from cabinet mass.

  • A: Light output falls gradually with junction temperature and drive current, which is why we do not publish a single brightness-retention figure. The cabinet uses sealed LED encapsulation and a heatsink path designed for continuous outdoor duty. Before the order, ask for the lamp manufacturer’s LM-80 and TM-21 data for the exact lamp fitted, and we will confirm the drive current the screen is configured at.

  • A: Thanks to our energy-saving architecture, average power consumption is kept around 250-300 W/m², making it a highly cost-effective outdoor LED display to run daily.

  • A: In most environments, the efficient internal cooling design eliminates the need for bulky external AC units, saving you additional power and installation costs.

A: Yes, the modules feature double waterproof barriers and specialized rubber sealing rings, achieving a rigorous IP65 waterproof rating

  • A: With proper maintenance and our high-quality SMD lamps, service life depends on brightness setting and duty cycle rather than on a single rating. Ask for the LED manufacturer’s LM-80 data for the lamp actually fitted, and archive the cabinet mapping and calibration file from commissioning so a later module swap does not become a recalibration project.

Screen-only pricing for a 960×960 outdoor LED billboard typically falls between USD 400 and USD 1,500 per square meter depending on pixel pitch, with P8 and P10 at the lower end and P5 at the upper end. Steel structure, power distribution, freight and installation are quoted separately. Send your width, height and destination country for a single combined quotation.

Both use a 960x960mm cabinet. The OK Series is an aluminium cabinet offered in P5.7, P6.667, P8 and P10, and is positioned for large networks where cost per square meter decides the business case. The B Series uses a magnesium alloy cabinet, adds P3 and P4 fine pitch options, and its cabinet framework supports curved and 3D corner splicing. Choose B when the closest viewers are 3 to 4 meters away or the structure is curved.

Explore Related DOOH Solutions

To build a truly resilient advertising network, Excel LED provides a complete ecosystem of outdoor display solutions. Explore our related product lines to find the right architectural match for your next project:

  •  B Series Magnesium Alloy Display: The 960x960mm cabinet for curved, 3D and fine-pitch builds, from P3 to P10, with customised radians for corner splicing.

  • ST960 Series Stadium LED Display: The heavy-duty die-cast aluminum solution engineered for sports venues and high-impact collision resistance.

  • A960 Series Commercial LED Screen: High-brightness panels designed specifically for premium roadside and highway advertising.

  •  Metastar Outdoor Rental Series: The ultimate fast-rigging screen if your project requires frequent dismantling for touring events.

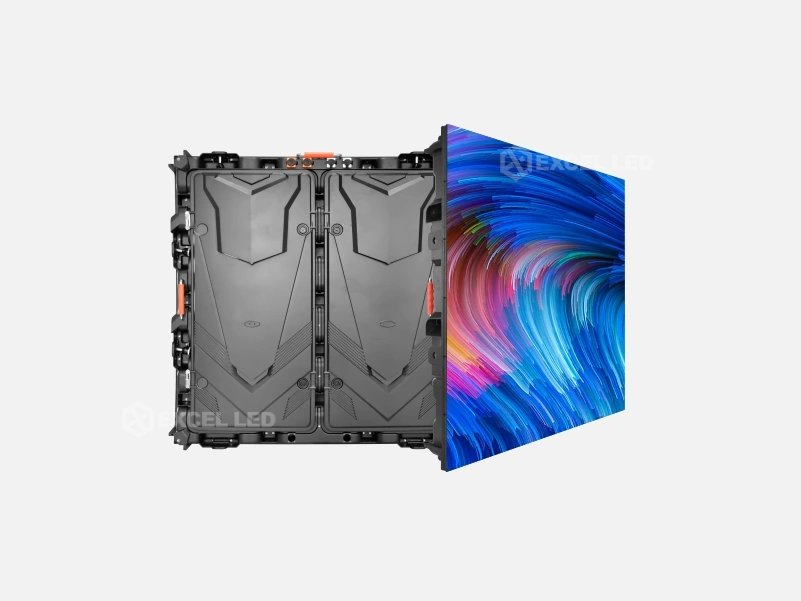

B Series Magnesium Alloy Display
