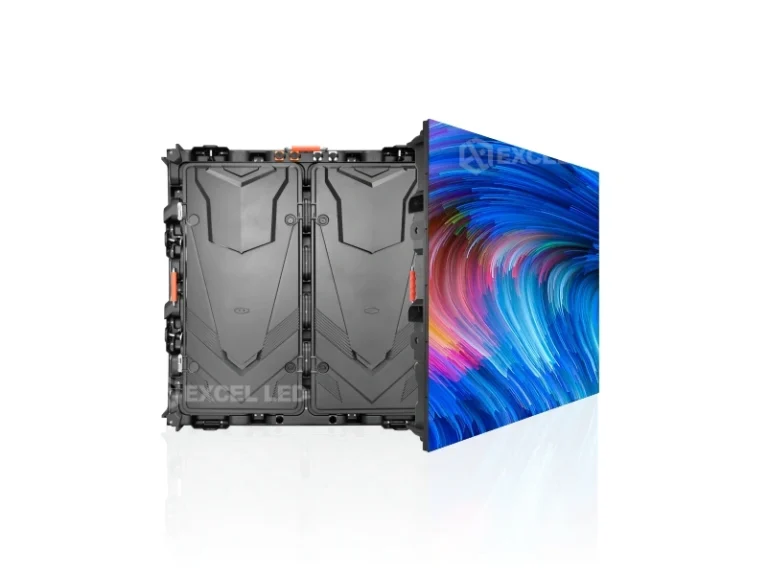

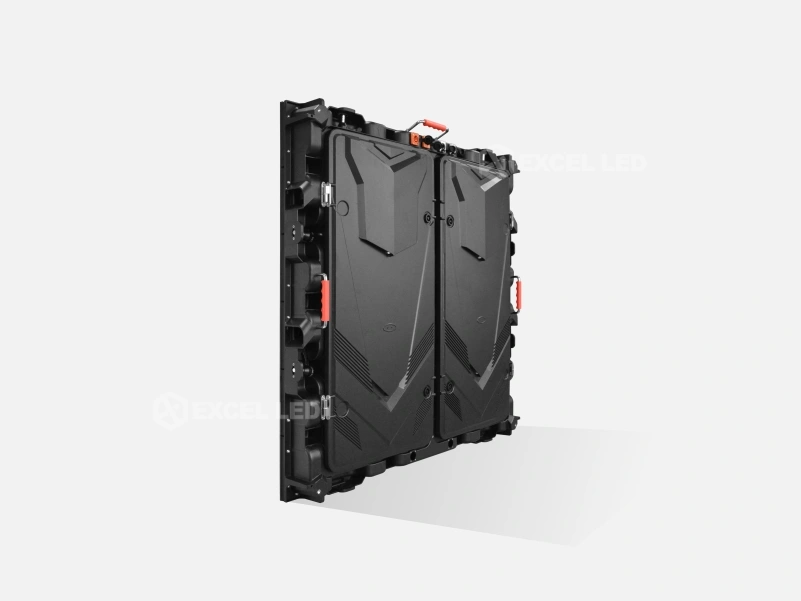

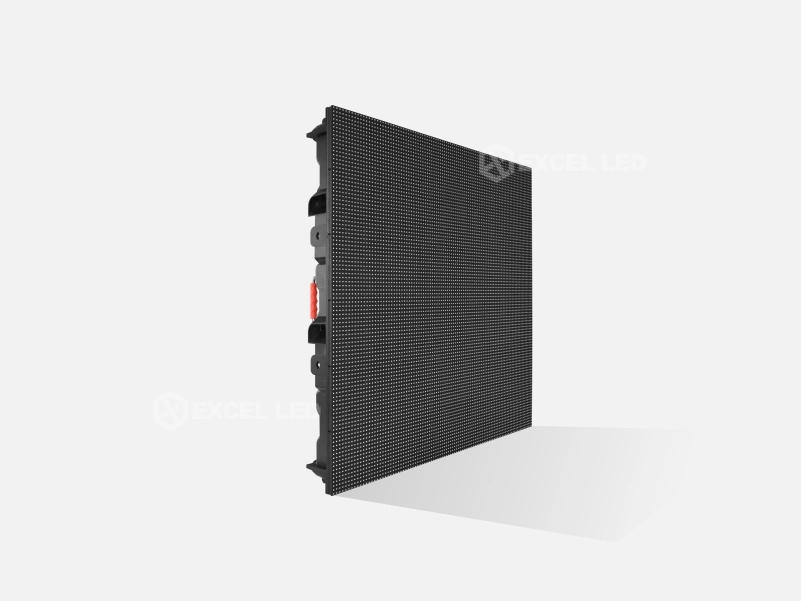

960x960mm Outdoor LED Display—B series
960x960mm outdoor LED display with universal 320x160mm modules

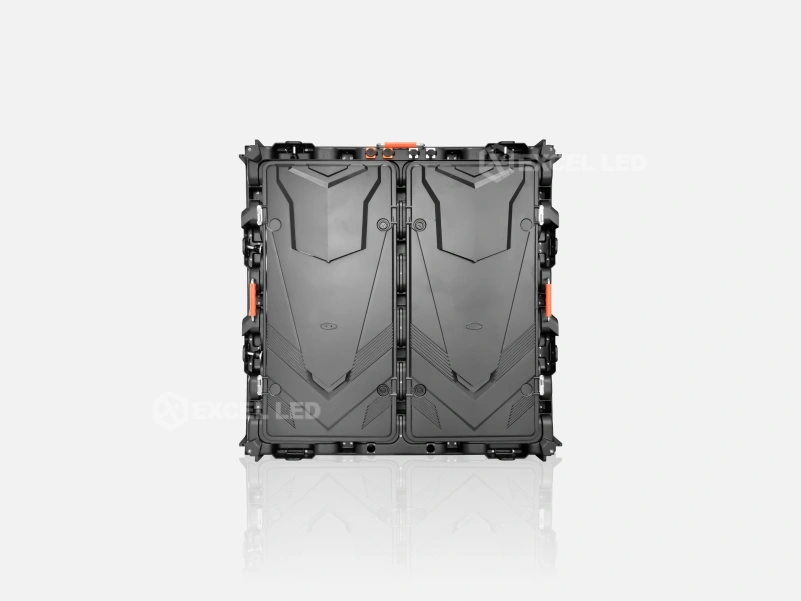

28kg magnesium alloy cabinet (20% thinner and lighter than iron)
IP65 waterproof rating with double waterproof barriers
Front and rear dual service options for versatile maintenance
Universal control system compatibility (Novastar/Linsn)
Six versatile installation methods , including pole, roof, and wall-mount
Curved and 3D billboard capabilities for creative DOOH advertising
Introduction
Heavy iron cabinets and skyrocketing steel structure costs are the biggest obstacles for outdoor advertising operators. The B Series 960x960mm outdoor LED display eliminates these pain points entirely. Engineered for the demanding Digital Out-Of-Home (DOOH) market, this premium screen utilizes an ultra-lightweight magnesium alloy cabinet, reducing installation weight by 20% compared to traditional iron panels.
Whether you are building a massive highway billboard or a 3D corner display, the B Series delivers unmatched 6000-nits brightness and all-weather durability. Say goodbye to software compatibility panics—our screens integrate seamlessly with Novastar, Linsn, and Colorlight.controllers, ensuring a zero-learning-curve setup for your AV technicians. Discover how this series empowers your advertising network within our comprehensive Outdoor LED Display Solutions
Why Upgrade to a Magnesium Alloy LED Screen?
When investing in a permanent outdoor LED billboard, the screen itself is only half the cost; the heavy steel support structure accounts for the rest. By upgrading to a magnesium alloy LED screen, you dramatically decrease the overall load-bearing requirements of your building or pillar.
Weighing only 28kg per cabinet, the B Series accelerates the installation process and slashes labor and transportation costs, guaranteeing a significantly faster return on investment (ROI) for your advertising business.
6 Core Technologies of B Series Outdoor LED Billboards

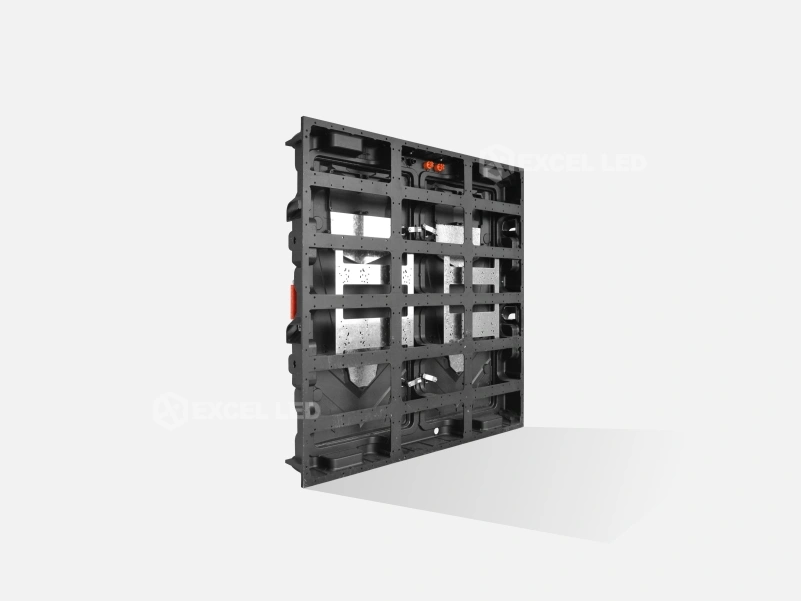

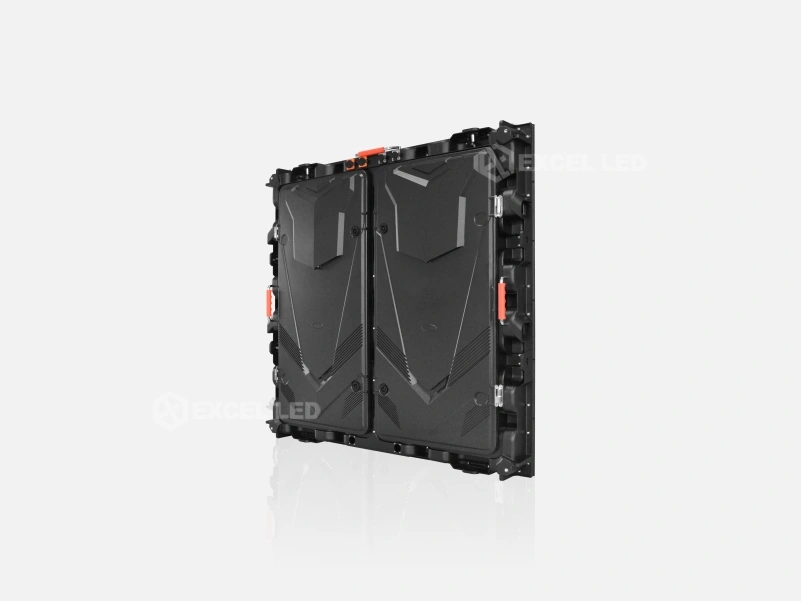

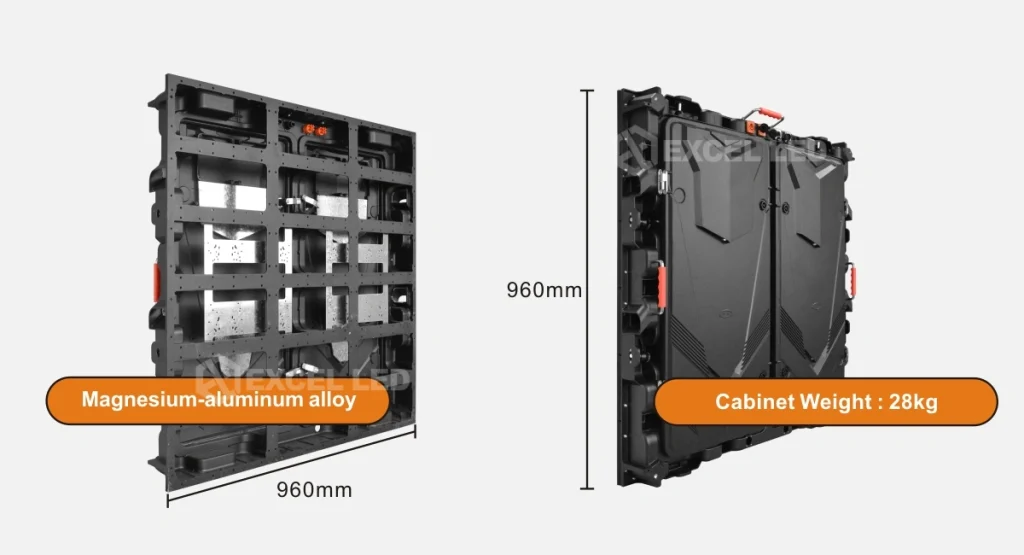

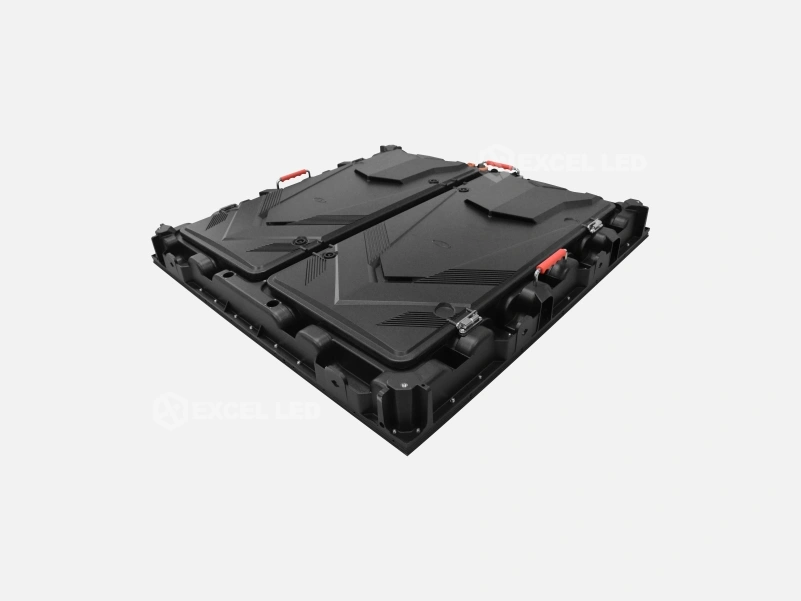

Ultra-Light Magnesium Alloy Cabinet
The Feature: Built with premium magnesium alloy, each 960x960mm cabinet weighs only 28kg.
The Benefit: Reduces structural load-bearing requirements, saving you thousands of dollars in heavy steel framework and heavy machinery rental during installation.

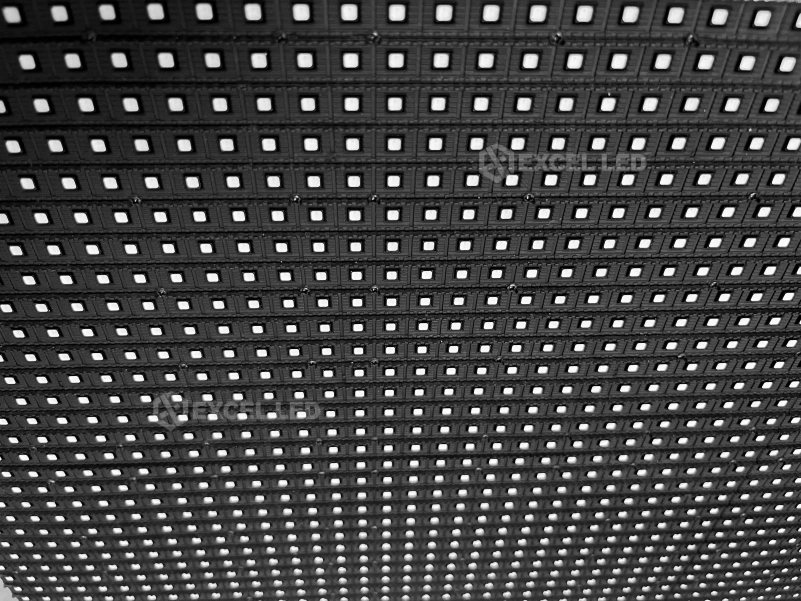

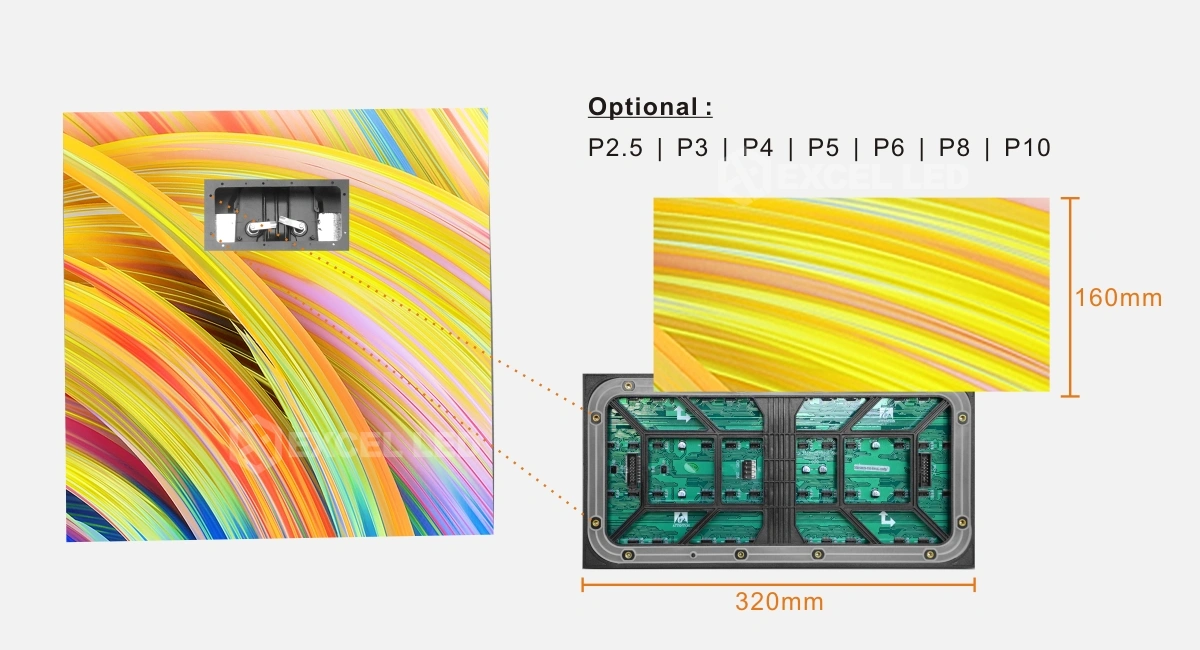

Universal 320x160mm Module Ecosystem
The Feature: From P2.5 to P10, all models utilize the global standard 320x160mm LED module size.
The Benefit: Streamlines your inventory management. You can upgrade your screen’s resolution in the future without replacing the expensive cabinet frame.

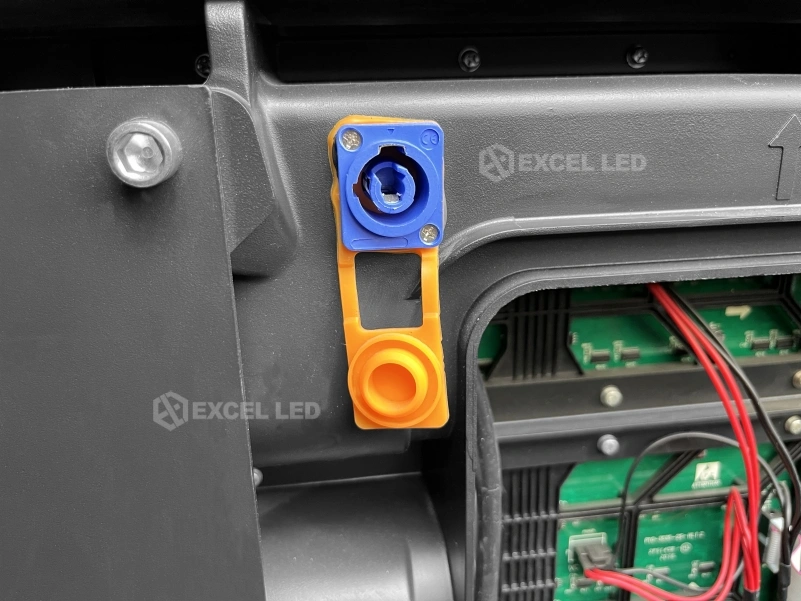

All-Weather IP65 Waterproofing
The Feature: Equipped with reinforced rubber rings and double waterproof barriers against moisture penetration.
The Benefit: Ensures 24/7 flawless operation in heavy rainstorms, maximizing the uptime of your advertising campaigns.

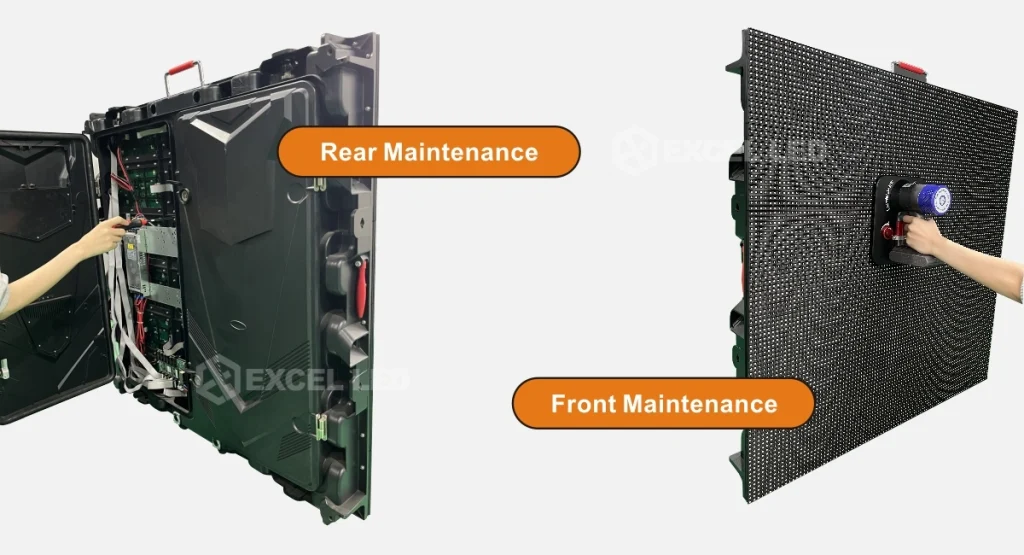

Front & Rear Dual Accessibility
The Feature: The front service outdoor LED panel design allows modules to be removed from either side.
The Benefit: Enables installation in tight spaces (like wall-mosaics) where back access is impossible, cutting maintenance time down to minutes.

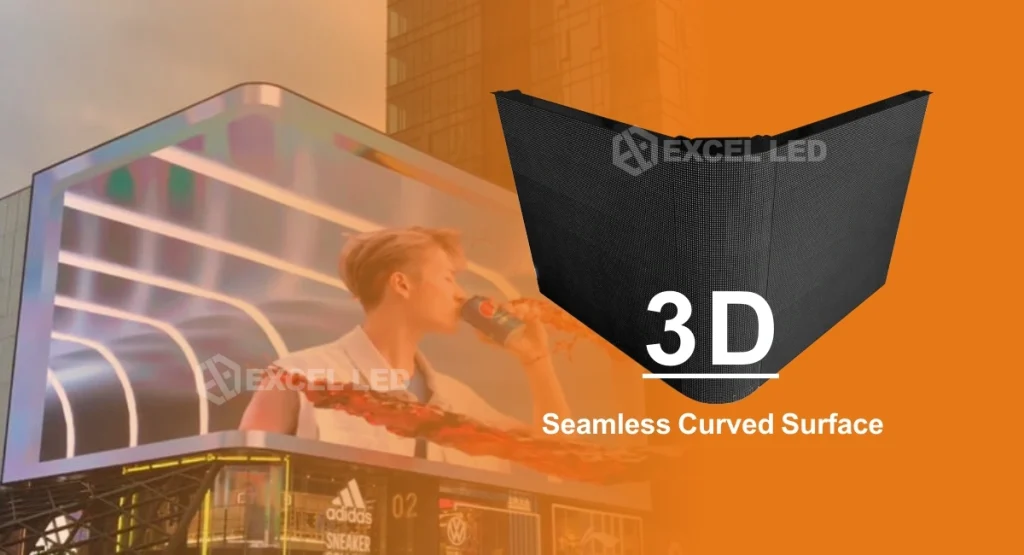

Seamless Curving & 3D Capabilities
The Feature: The cabinet framework supports high-precision customized radians for corner splicing.
The Benefit: Allows you to build immersive naked-eye 3D corner billboards, attracting significantly more foot traffic and commanding higher advertising rates.

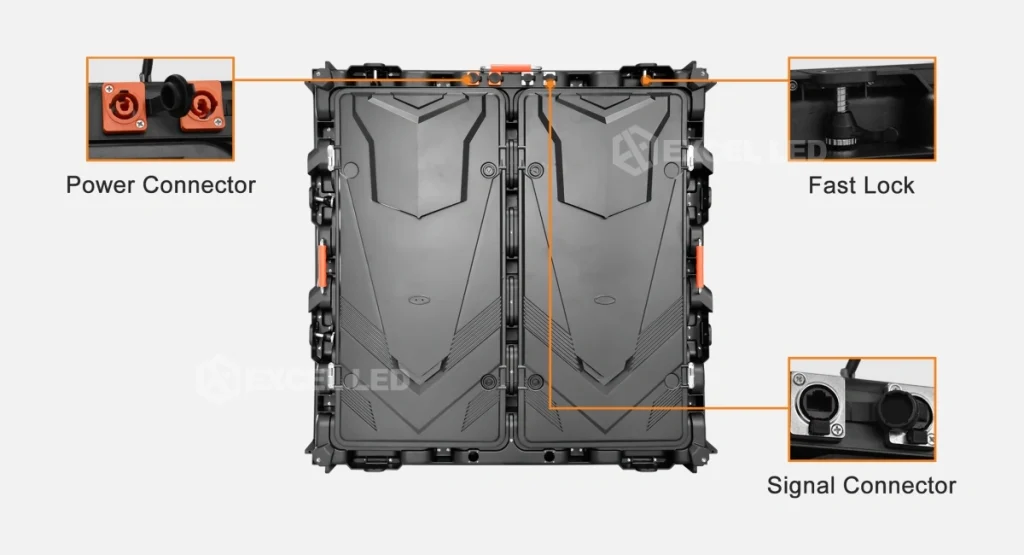

Plug & Play Signal & Power Architecture

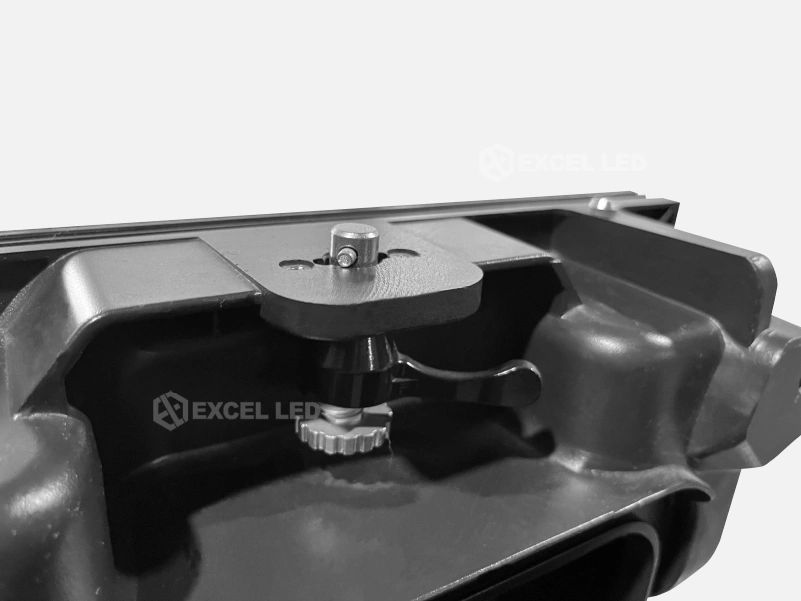

The Feature: Features aviation-grade fast locks and centralized power/data hubs compatible with major sending cards.
The Benefit: Simplifies troubleshooting and guarantees zero blackout risks during highly profitable commercial ad loops.
Ideal Use Cases for 960x960mm Outdoor Displays
Highway & Roof-Top Billboards:
The Scene: High-altitude installations facing severe wind loads and sunlight.
Product Support: The magnesium alloy design reduces wind resistance and building load, while 6000 nits brightness cuts through daylight.

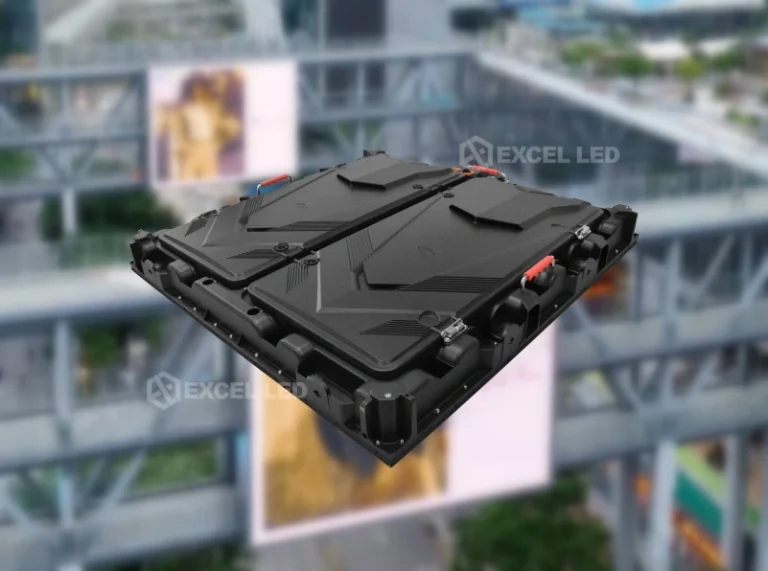

Commercial Plaza Naked-Eye 3D Screens:
The Scene: L-shaped building corners requiring seamless visuals to create 3D illusions.
Product Support: Precision manufacturing allows for seamless 90-degree corner splicing, delivering viral marketing impact.
Smart City Street Pole Displays:
The Scene: Pedestrian zones where space is limited and aesthetics matter.
Product Support: The front service capability and slim profile make it perfect for integrating into modern smart city infrastructure.
Highway & Roof-Top Billboards
Commercial Plaza Naked-Eye 3D Screens
Sports LED display screen
Video Center of B Series
Playlist
0:16
0:16
0:16
Specifications for B Series DOOH Digital Signage
| Feature | B Series P3 | B Series P4 | B Series P5 | B Series P6 | B Series P8 | B Series P10 |
| Pixel Pitch | 3mm | 4mm | 5mm | 6mm | 8mm | 10mm |
| Module Size | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm |
| Cabinet Size | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Brightness | 6000 nits | 6000 nits | 6000 nits | 6000 nits | 6000 nits | 6000 nits |
| Cabinet Weight | 28 kg | 28 kg | 28 kg | 28 kg | 28 kg | 28 kg |
| Cabinet Material | Magnesium | Magnesium | Magnesium | Magnesium | Magnesium | Magnesium |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Power (Max/Avg) | 800/300 W/m² | 800/300 W/m² | 800/300 W/m² | 800/300 W/m² | 800/300 W/m² | 800/300 W/m² |
Call to Action (CTA):
Ready to Dominate the DOOH Market?
Don’t let heavy cabinets inflate your installation budget. Upgrade to the industry’s most efficient 960x960mm Outdoor LED Display.
Compare our magnesium alloy benefits and explore our complete [Outdoor LED Display Solutions] to scale your advertising network.
Contact the experts at Excel LED (LEGIDATECH) today for a factory-direct quote!
Contact Excel LED Now!
Send your demand and get your detailed solution of project.
10 FAQs About Outdoor LED Billboards
A: Running costs depend on power consumption. Our B Series uses high-efficiency LEDs with an average consumption of 300W/m², keeping daily electricity bills significantly lower than older technologies.
A: A magnesium alloy LED screen is infinitely superior for outdoor installations. It is 20% lighter than iron, does not rust, and requires less expensive steel support structures.
A: It depends on viewing distance. For close pedestrian viewing (5-10m), P3 or P4 is ideal. For highway billboards viewed from 20m+, P8 or P10 is the most cost-effective choice.

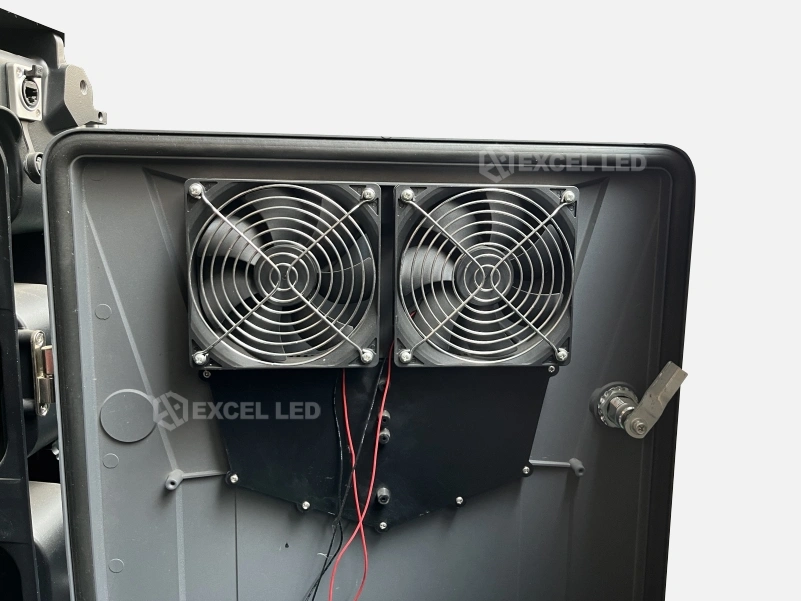

A: Not necessarily. The B Series features two large integrated extraction fans and excellent thermal conductivity from the magnesium cabinet, effectively eliminating the need for bulky AC units in most climates.
A: Maintenance is highly flexible. You can opt for a front service outdoor LED panel design for wall-mounted screens, or rear service if you have a catwalk built behind the billboard.
A: Industry-standard systems like Novastar or Linsn are highly recommended. Our B series is natively compatible with these, allowing you to manage your advertising content remotely via cloud software.
A: Yes! The B series framework is designed to support customized curved modules and seamless right-angle splicing, perfect for creating immersive Naked-Eye 3D billboards.
A: The B Series supports six main methods: single-pole, double-column, wall-mounted, roof-type, cantilever, and mosaic (embedded) installations.
A: Absolutely. Our front-service modules utilize double waterproof barriers and specialized rubber sealing rings, achieving a rigorous IP65 waterproof rating regardless of the access method.
A: With proper maintenance and our high-quality SMD lamps, the B Series DOOH digital signage is rated for a lifespan of ≥100,000 hours, ensuring years of continuous ad revenue.
