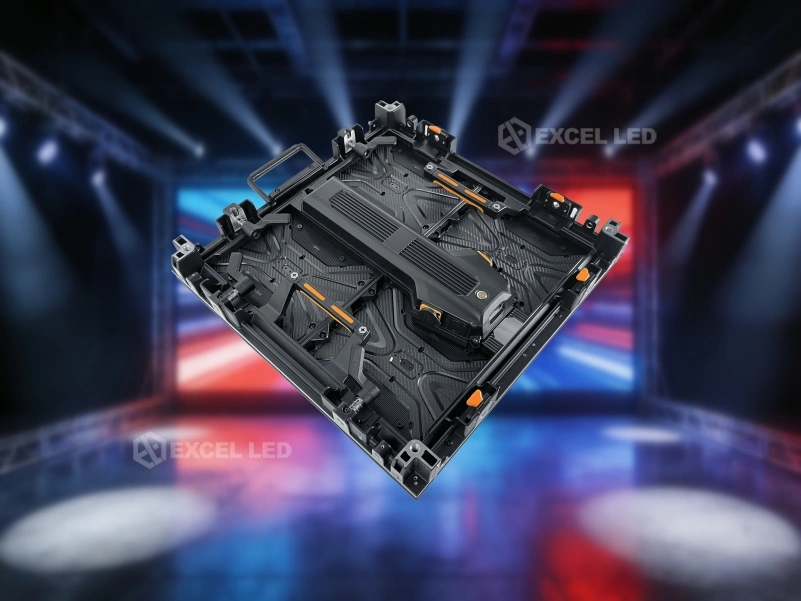

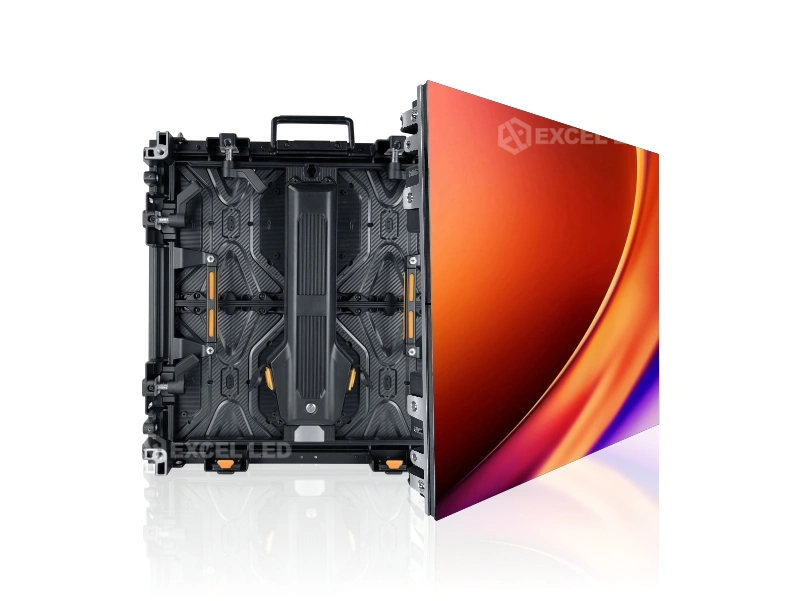

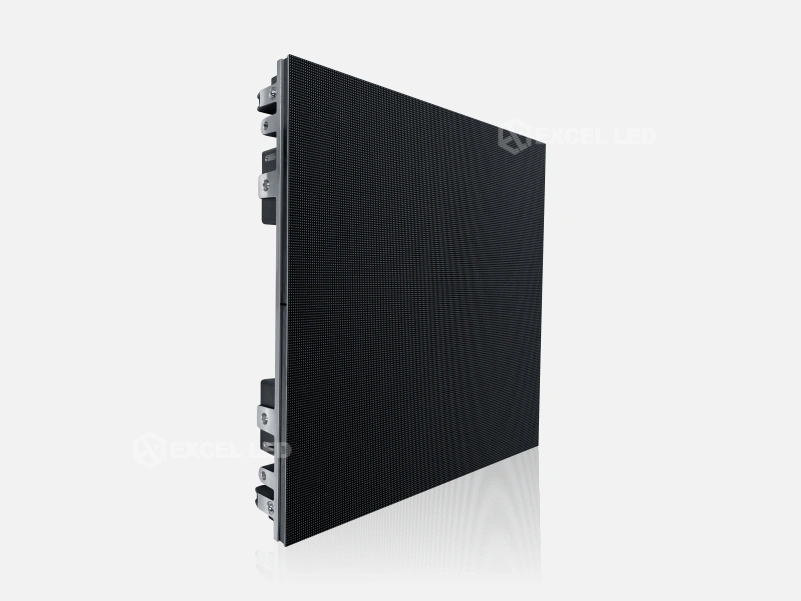

500×500mm Stage Rental LED Screen

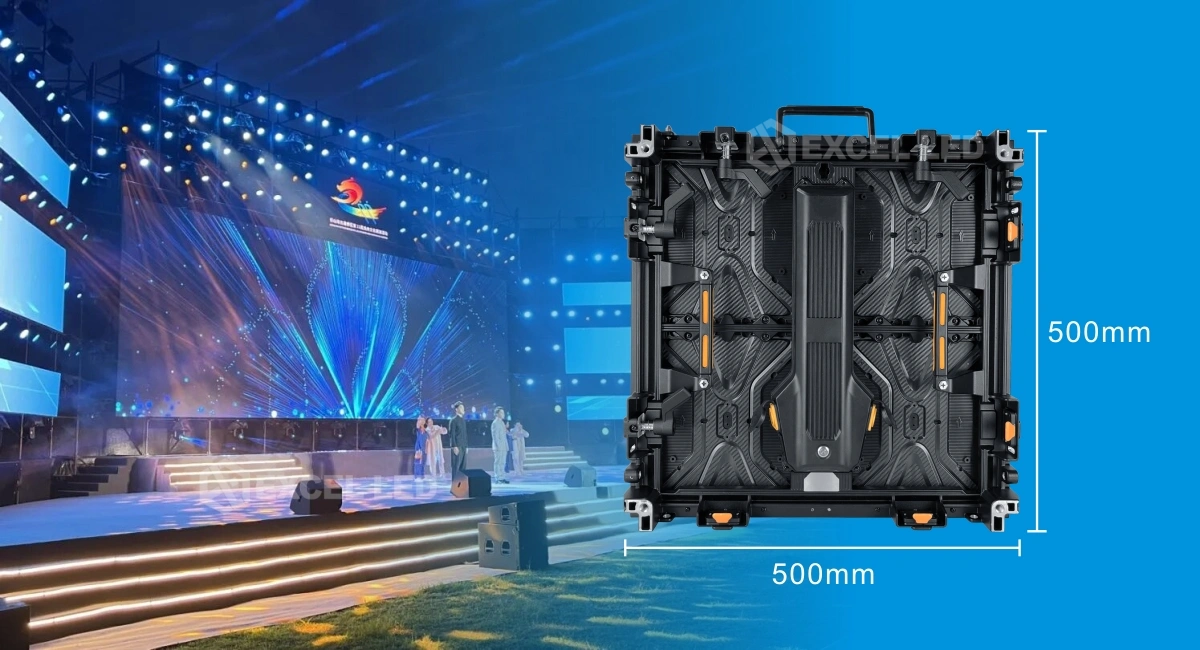

500×500mm Stage Rental LED Screen with compact die-cast cabinet
Robust central spine frame design for maximum impact resistance
Front service capability for rapid module replacement in tight spaces
High refresh rate (≥3840Hz) for flicker-free live broadcasting
IP65 waterproof rating (Outdoor models) for all-weather reliability

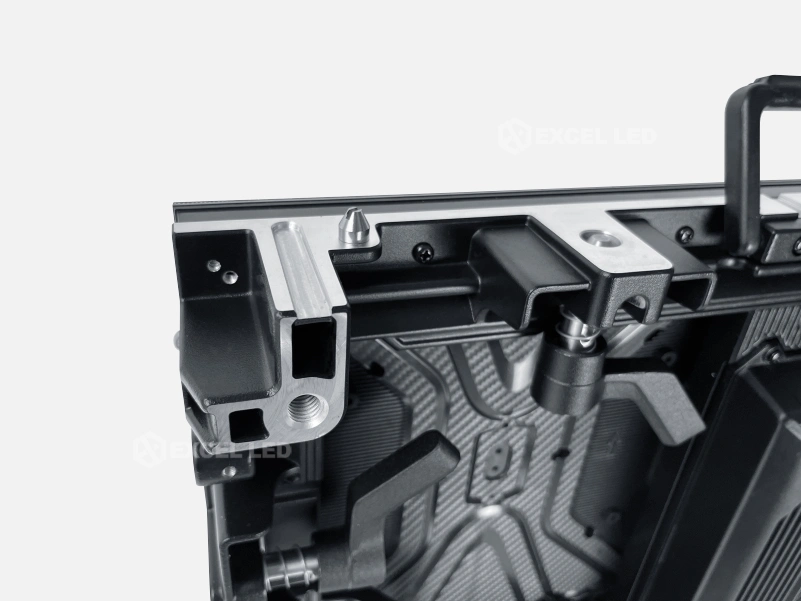

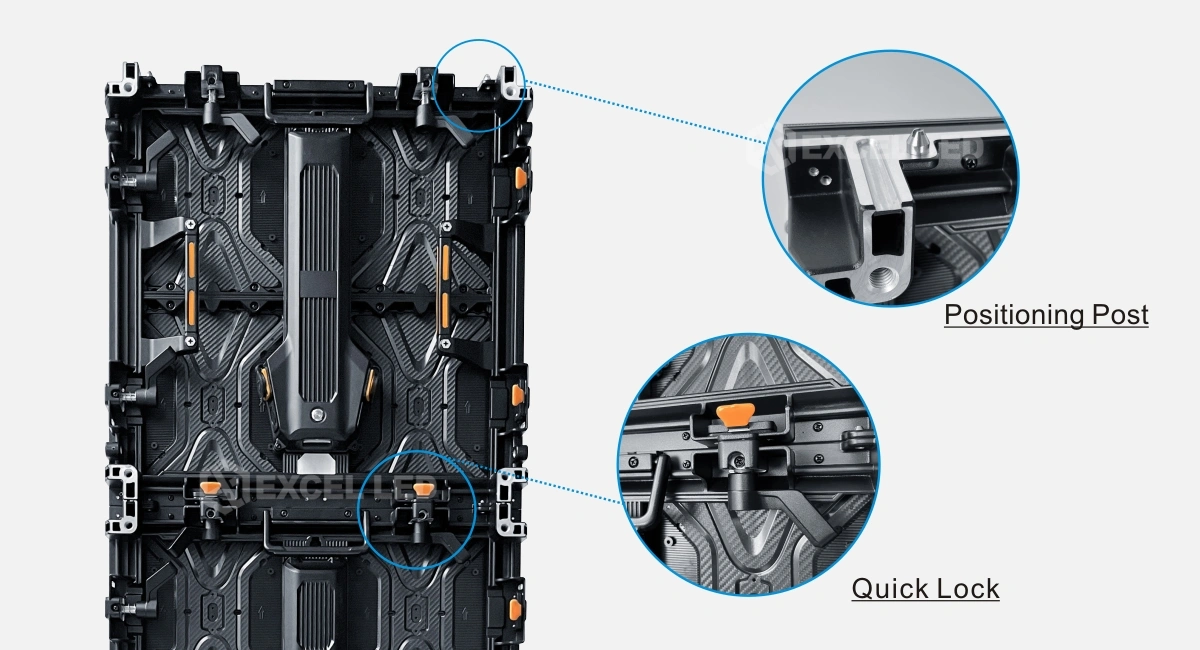

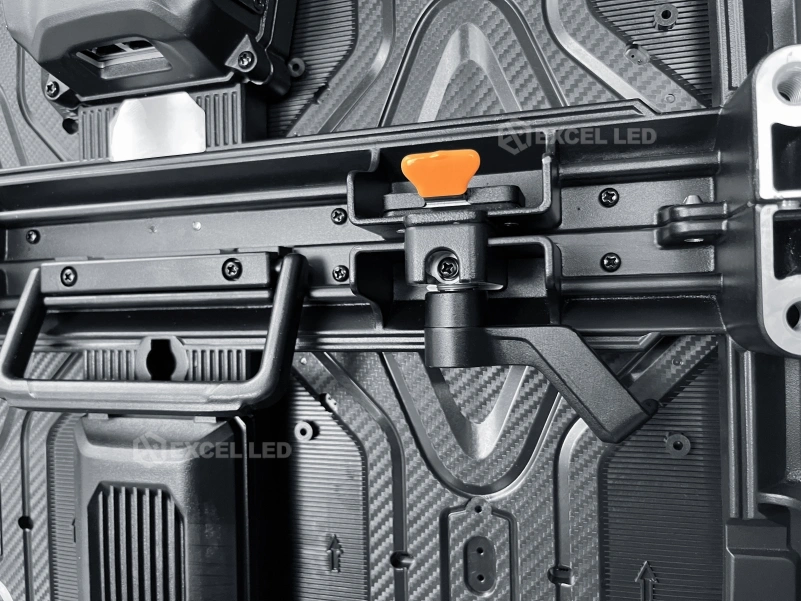

One-handed quick locks for fast one-person installation
Integrated corner protection to prevent pixel damage during transport
Create unforgettable visual experiences with the Max Series Stage Rental LED Screen, the industry standard for versatility and durability. Designed for dynamic events, this 500×500mm Stage Rental LED Screen features a reinforced “spine” structure that withstands the rigors of frequent touring.
Whether you need a high-resolution indoor backdrop or a weatherproof outdoor wall, the Max Series delivers stunning visuals with the added convenience of front maintenance, making it the smartest choice for rental companies needing quick turnaround times.

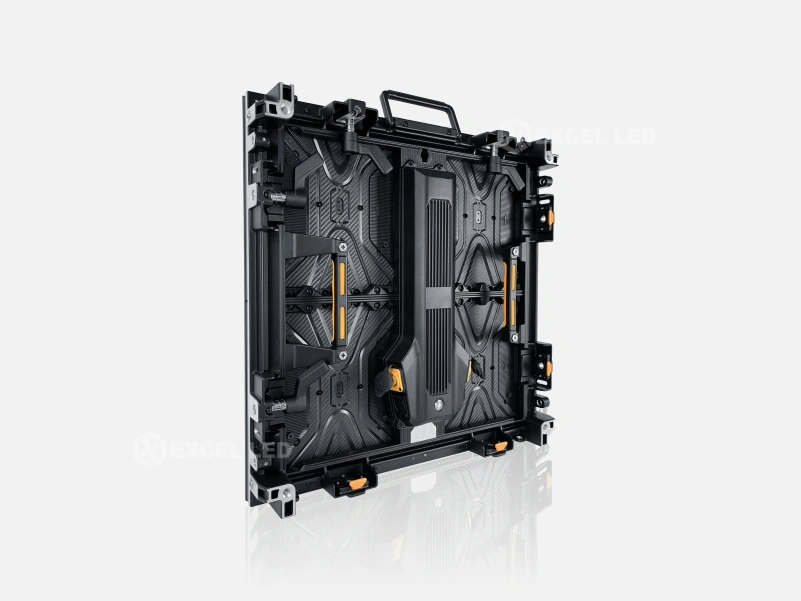

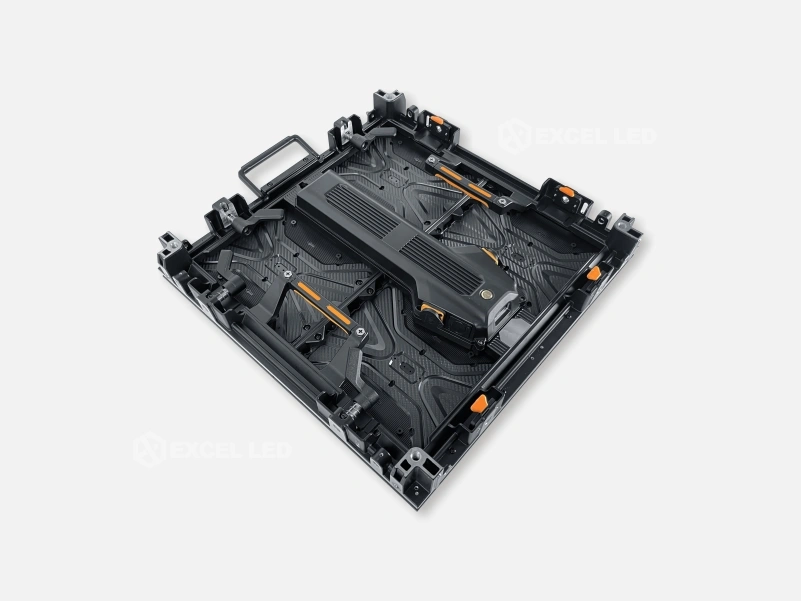

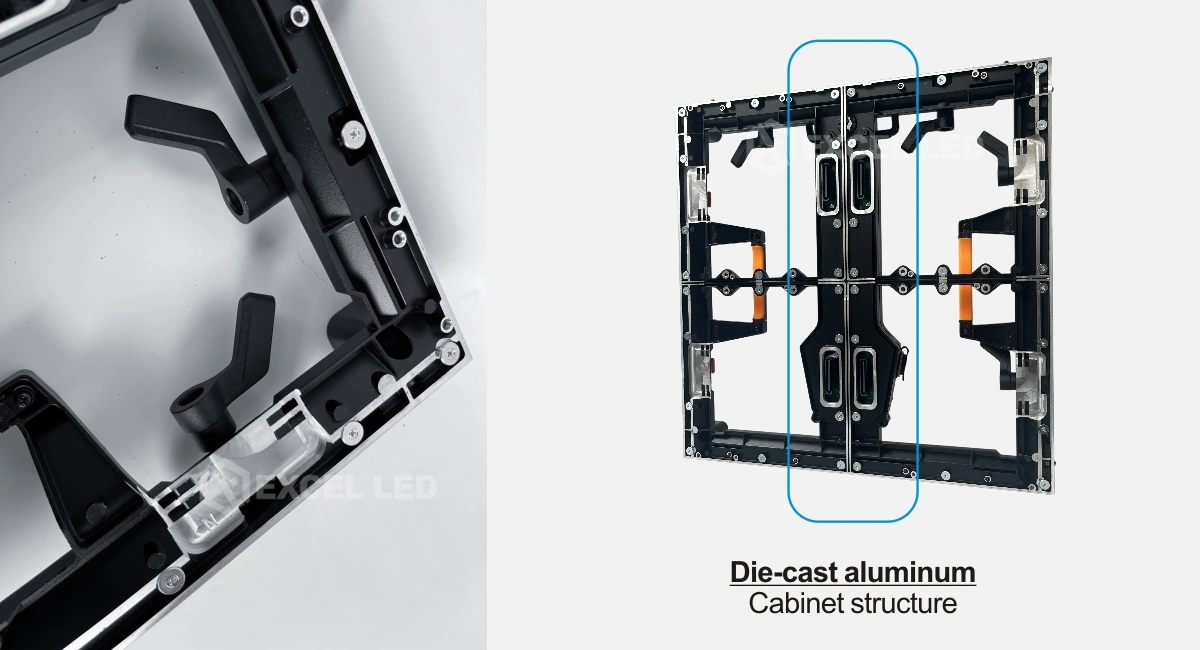

Robust Reinforced "Spine" Frame of the 500×500mm Stage Rental LED Display
The Feature: The 500×500mm cabinet is engineered with a thick, central reinforced spine structure that acts as a backbone for this stage rental LED screen.
The Benefit: Provides exceptional flatness and stability, preventing the cabinet from warping or deforming during hanging or ground stacking.
High-Precision CNC Splicing of the 500×500mm Stage Rental LED Display
The Feature: CNC-machined die-cast aluminum cabinets ensure a gap tolerance of less than 0.1mm between panels of this 500×500mm stage rental LED display.
The Benefit: Creates a seamless visual experience, ensuring images flow naturally across panels without visible black lines or gaps.

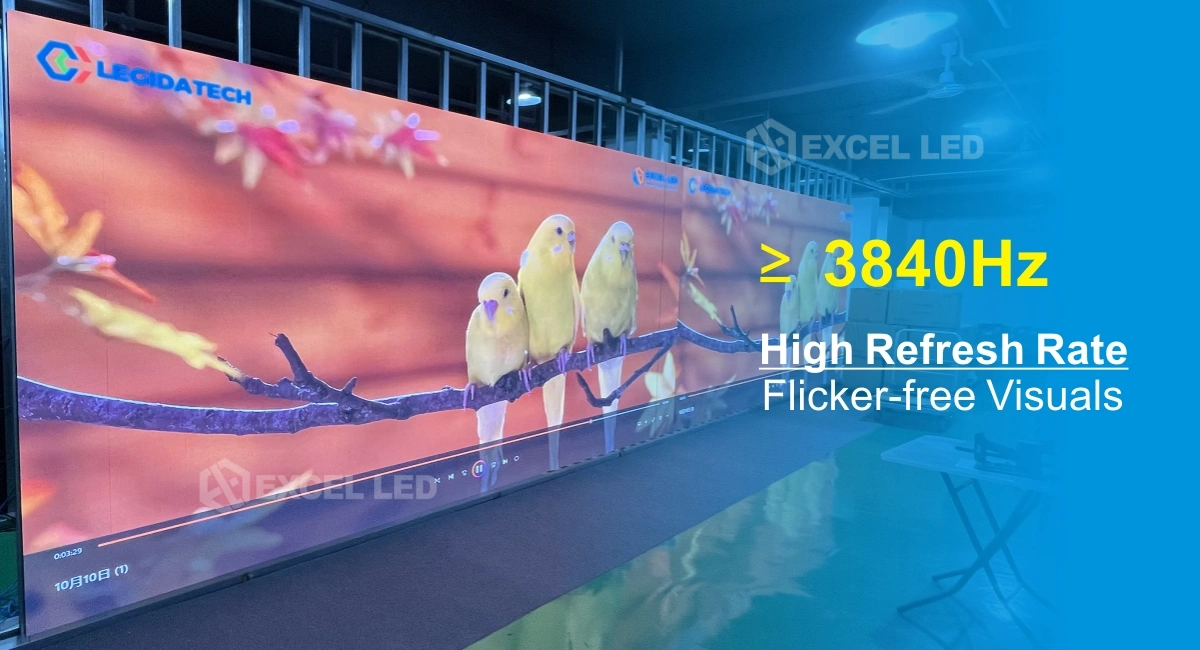

Broadcast-Grade Refresh Rate of the 500×500mm Rental LED Screen
The Feature: Equipped with high-end driver ICs delivering a ≥3840Hz refresh rate and high grayscale processing.
The Benefit: Ensures camera-ready performance with no scan lines or flickering, perfect for televised concerts and corporate livestreams on this 500×500mm stage rental LED display.
IP65 Weatherproof Protection for the Outdoor 500×500mm Rental LED Screen
The Feature: The outdoor 500×500mm rental LED screen models feature fully sealed electronics and waterproof rubber gaskets on all ports.
The Benefit: Guarantees reliable operation in rain or dust, allowing you to stage outdoor festivals with complete peace of mind.

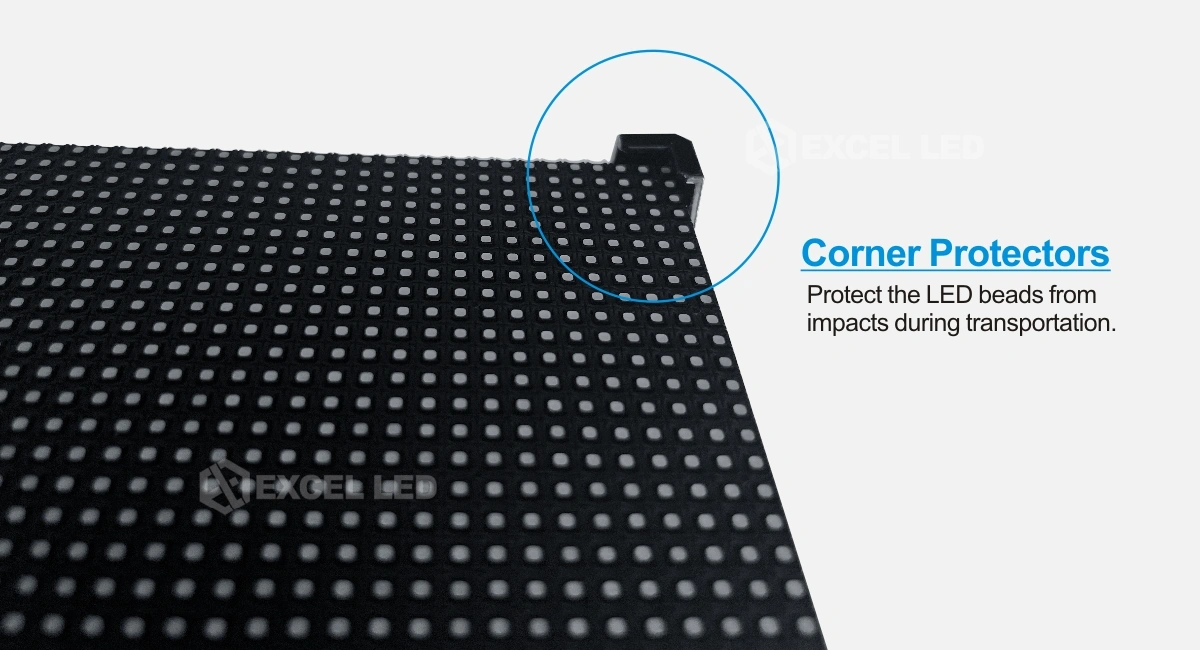

Integrated Corner Protection Mechanism of the 500×500mm Rental LED Screen
The Feature: Integrated corner guards flip out or protrude to shield the edge pixels of the 500×500mm touring LED video wall.
The Benefit: Drastically reduces dead pixels caused by collision during flight case loading and unloading, lowering your maintenance costs.

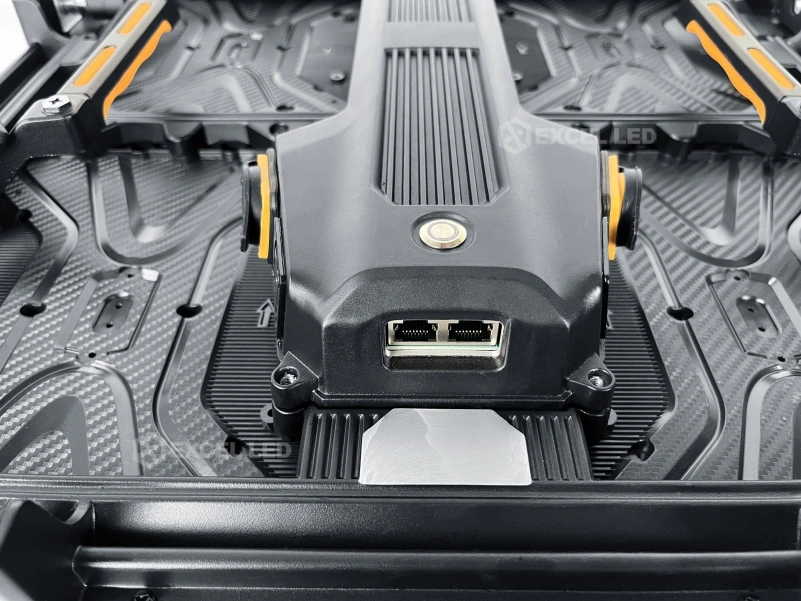

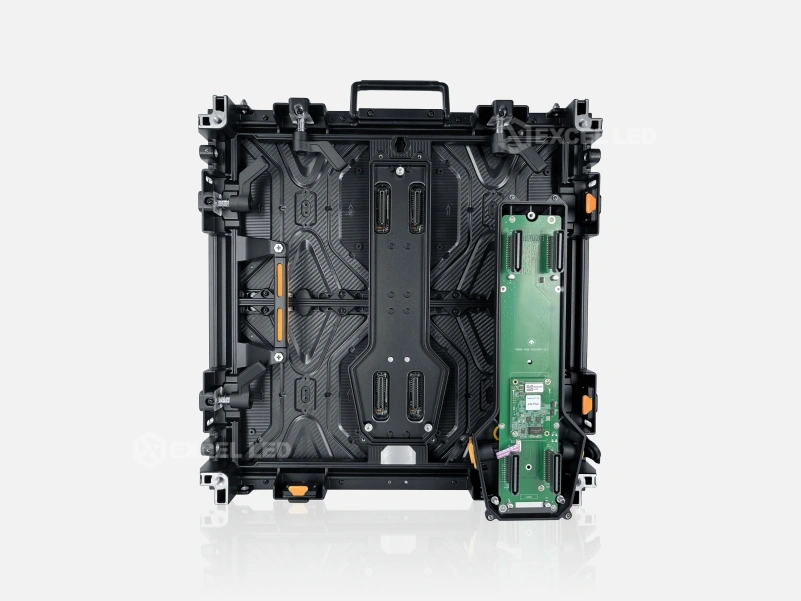

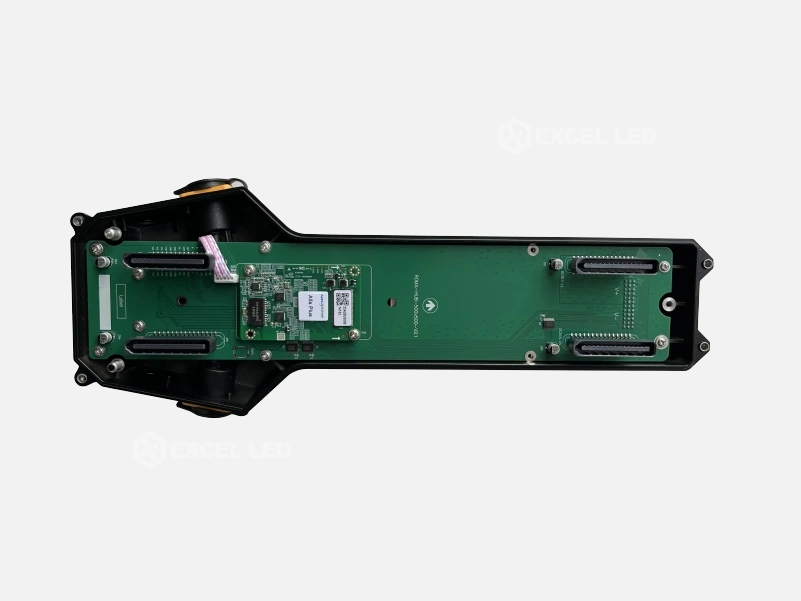

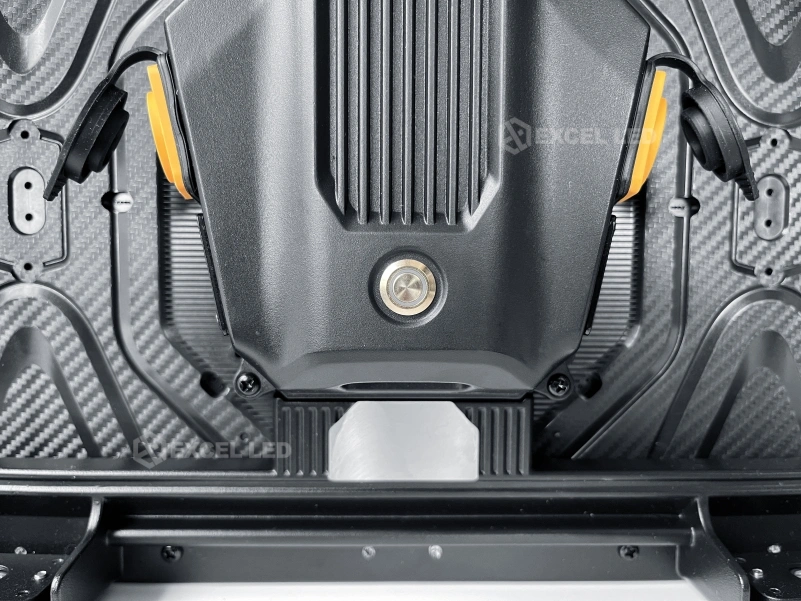

One-Stop Power & Signal Box of the 500×500mm Stage Rental LED Display
The Feature: The modular power box integrates the power supply and receiving card into a neat unit, streamlining the 500×500mm stage rental LED display structure.
The Benefit: Simplifies troubleshooting and replacement, ensuring your crew spends less time wiring and more time tuning the visuals.
Ideal Use Cases for Mobile Stage Backgrounds
Corporate Galas & Awards:
The Scene: High-end indoor events needing crystal-clear presentations.
Product Support: Front maintenance allows the 500×500mm stage rental LED display to be wall-mounted behind the stage to save space.
Touring Concerts:
The Scene: Fast-paced environments where gear gets handled roughly.
Product Support: The robust spine design withstands the wear and tear of daily load-ins and load-outs.
Outdoor Festivals:
The Scene: Large open-air stages exposed to the elements.
Product Support: IP65 waterproofing keeps the visuals running through summer storms.
Max Series Indoor & Outdoor LED Video Wall Specifications
| Category | Indoor | Outdoor | |||||
| Model (Pitch) | 1.95 | 2.604 | 2.97 | 2.604 | 2.97 | 3.91 (1/16) | 3.91 (1/8) |
| Pixel Composition (SMD) | 1515 | 1515 | 2121 | 1415 | 1415 | 1921 | 1921 |
| Pixel Pitch (mm) | 1.95 | 2.604 | 2.97 | 2.604 | 2.97 | 3.91 | 3.91 |
| Module Resolution (W×H) | 128×128 | 96×96 | 84×84 | 96×96 | 84×84 | 64×64 | 64×64 |
| Module Size (mm) | 250×250 | ||||||
| Module Weight (kg) | 0.29 | ||||||
| Modules per Cabinet (W×H) | 2×2 | ||||||
| Cabinet Resolution (W×H) | 256×512 | 192×384 | 168×336 | 192×384 | 168×336 | 128×256 | 128×256 |
| Cabinet Size (mm) | 500×500×87 | ||||||
| Cabinet Area (㎡) | 0.25 | ||||||
| Cabinet Weight (kg/unit) | 7.5 | ||||||
| Cabinet Material | Die-cast Aluminum | ||||||
| Pixel Density (dots/㎡) | 262,144 | 147,456 | 112,896 | 147,456 | 112,896 | 65,536 | 65,536 |
| IP Rating | IP20 | IP65 | |||||
| White Balance Brightness (nits) | ≥700 | ≥700 | ≥800 | ≥700 | ≥700 | ≥700 | ≥800 |
| Color Processing (bit) | 14 | 16 | 16 | 16 | |||
| Color Temperature (K) | 6500-9000 | 6500-9000 | |||||
| Viewing Angle (H/V) | 140°/120° | 140°/120° | |||||
| Center Offset of Light Spot | <3% | <3% | |||||
| Brightness Uniformity | ≥97% | ≥97% | |||||
| Chromaticity Uniformity | Within ±0.003 Cx, Cy | Within ±0.003 Cx, Cy | |||||
| Contrast Ratio | ≥5000:1 | ≥5000:1 | |||||
| Max Power Consumption (W/㎡) | 500 | 500 | 500 | 700 | 700 | 700 | 800 |
| Average Power Consumption (W/㎡) | 168 | 168 | 168 | 235 | 235 | 235 | 268 |
| Input Voltage | AC 100~240V | AC 100~240V | |||||
| Frequency (Hz) | 50 & 60 | 50 & 60 | |||||
| Drive Method (Scan) | 1/32 | 1/32 | 1/28 | 1/24 | 1/28 | 1/16 | 1/8 |
| Refresh Rate (Hz) | 3840 | 3840 | |||||
| Maintenance Method | Front & Rear | Front & Rear | |||||
| Lifespan (hours) | 100,000 | 100000 | |||||
| Operating Temp/Humidity | -40°C~80°C / 10%RH~98%RH (Non-condensing) | -40°C~80°C / 10%RH~98%RH (Non-condensing) | |||||
| Storage Temp/Humidity | -20°C~60°C / 10%RH~98%RH (Non-condensing) | -20°C~60°C / 10%RH~98%RH (Non-condensing) | |||||
Tech Support
Ready to elevate your stage production?
Get a competitive quote for the Max Series Stage Rental LED Screen.
Need faster setup for massive walls? Check our [Max Series 500x1000mm Panel].
See our full range of [Rental LED Display Solutions].
[Contact Us] today to start your project!
FAQs About Rental LED Video Wall
A: The 500×500mm size offers maximum flexibility. It allows you to build smaller screens, columns, or creative shapes that 1000mm panels cannot achieve.
A: Yes, you can seamlessly connect these mobile stage backgrounds with our MAX 500x1000mm cabinets to create custom screen dimensions.
A: Thanks to the front service design, a magnetic module can be swapped out in under 10 seconds without tools
A: Yes, with 4500+ nits brightness, the screen remains vivid and readable even under bright daylight.
A: We use a specialized corner protection mechanism on the frame to shield the LEDs from impact when the cabinet is placed on the ground.
A: The indoor models utilize the aluminum case for heat dissipation (fanless), ensuring silent operation for noise-sensitive events like conferences.
