Aeroframe AF1000 Rental LED Display: 14.5 kg 500x1000mm Cabinet for Outdoor Stages
The Aeroframe AF1000 rental LED display is Excel LED’s large-format rental cabinet — 0.5 m² of screen per panel and IP65 waterproof front and rear, so big outdoor stages go up with fewer cabinets and less rigging.
- 0.5 m² per cabinet — half the panels for the same wall
- IP65 waterproof, front & rear for wet-weather outdoor events
- Outdoor brightness 4500–5000 nits for daylight stages
- 14.5 kg die-cast aluminum cabinet — one-person travel lock
- Half-arc lock -5°~+5° for straight & curved setups
- Interlocks vertically with the 500×500mm Aeroframe AF500
Aeroframe AF1000: Quick Answers
QWhat is the Aeroframe AF1000?
A 500×1000×84 mm die-cast aluminum rental LED cabinet weighing 14.5 kg and covering 0.5 m² per panel — half the cabinets for the same wall.
QWhat pixel pitches does the AF1000 come in?
Indoor P2.976–P4.81 (IP31) and outdoor P2.604–P5.95 rated IP65 front and rear.
QIs it really waterproof enough for outdoor festivals?
The outdoor AF1000 is IP65 front and rear — dust-tight and protected against water jets from any direction.
QCan the same cabinet build both flat and curved walls?
Yes. The half-arc lock adjusts in five steps from -5° to +5°, so the same cabinet builds flat backdrops and gentle curves.
QHow many cabinets does a large wall need?
Each cabinet covers 0.5 m², so a 100 m² wall takes about 200 cabinets. Fewer panels also means roughly half as many inter-cabinet lock joints and jumper cables as a 500×500 mm build.
QCan AF1000 and AF500 cabinets be mixed in one wall?

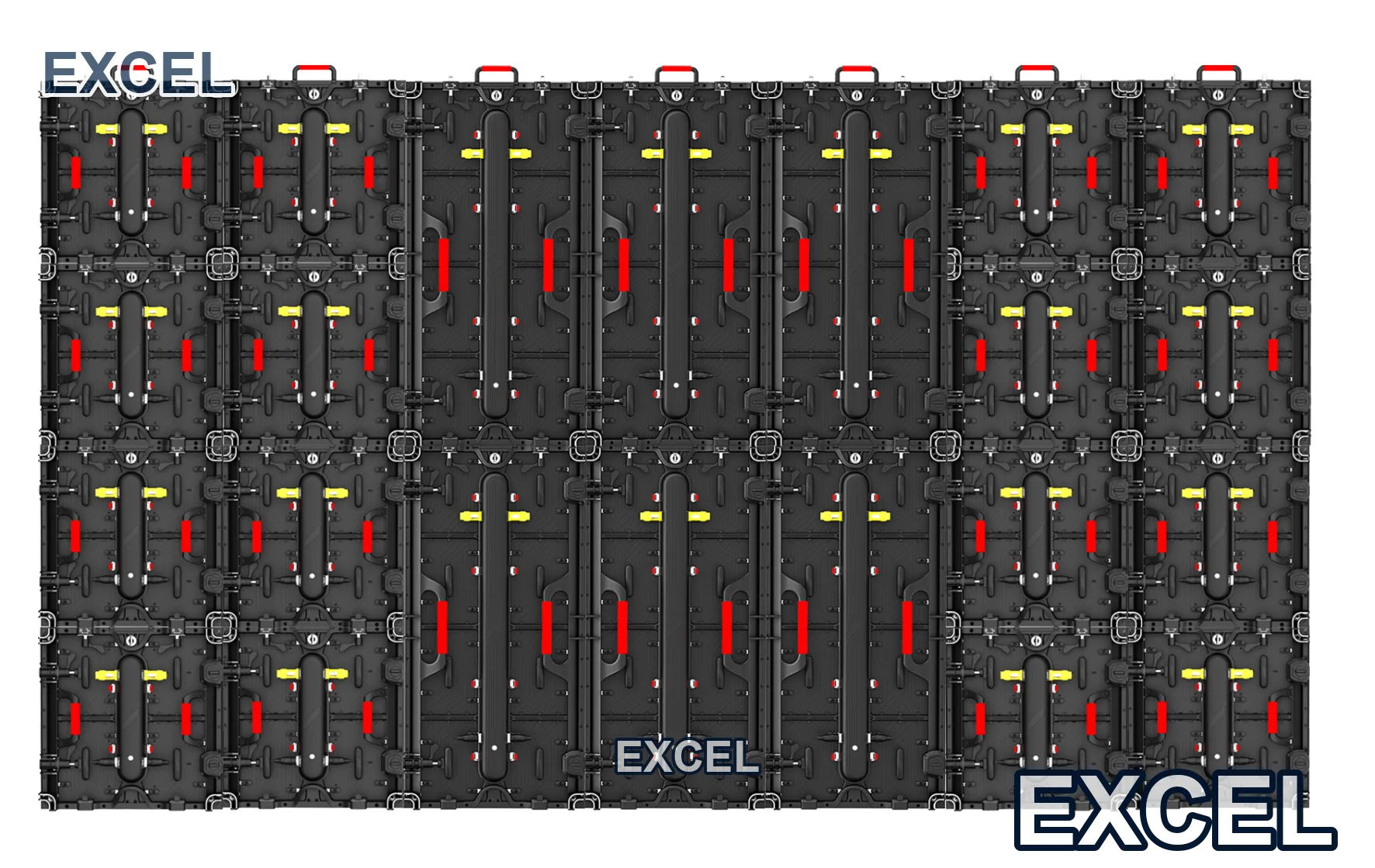

Yes — they interlock vertically, so 500×1000 mm and 500×500 mm cabinets can share one screen. Confirm the mix with our engineers before ordering.

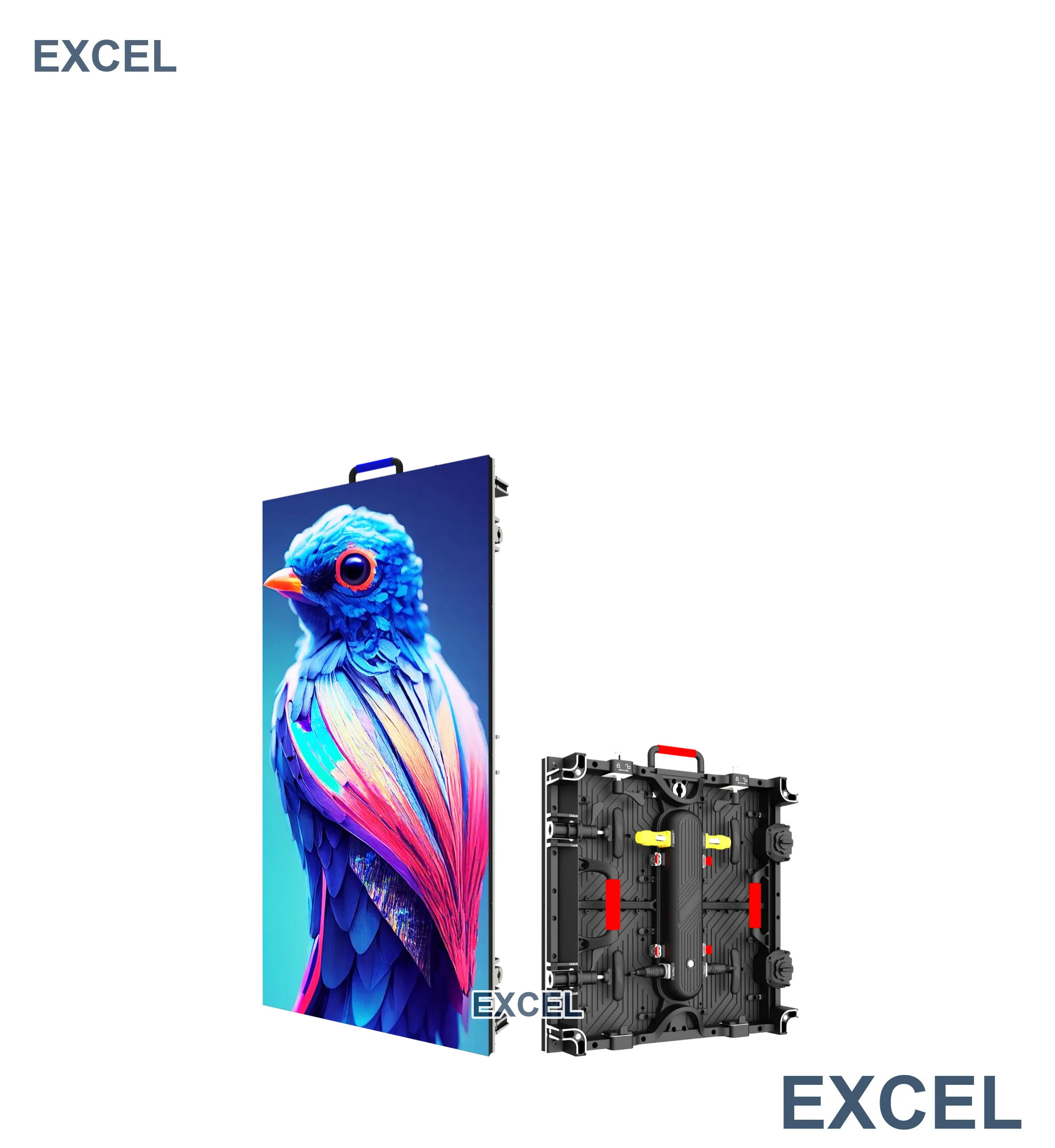

Meet the Aeroframe AF1000 Rental LED Display
The Aeroframe AF1000 rental LED display is built for the jobs where area, not pitch, decides the bid. A big festival or broadcast stage wants fewer cabinets, fewer locks and fewer cables — and outdoors it wants a screen that will not blink at rain.
At 500×1000 mm, each AF1000 cabinet covers 0.5 m², so a 12×6 m wall needs half the panels of a 500×500 mm design. The outdoor version is IP65 front and rear and delivers 4500–5000 nits for direct-sun stages.
It is the large-format half of the Aeroframe family — pair it with the 500×500mm Aeroframe AF500 to add fine-pitch panels where a wall meets a close-viewing zone. For the full 500×1000mm rental category, see our 500x1000mm rental LED display guide.
Why Choose the Aeroframe AF1000 for Large-Format & Outdoor Rental?
Large stages and outdoor festivals used to force a choice between heavy iron cabinets and fragile indoor panels. The AF1000 removes the trade-off: a die-cast aluminum enclosure at 14.5 kg that is built to be rained on, not just wheeled around a ballroom.
Covering 0.5 m² per panel, the AF1000 halves the panel count for the same wall, and fewer panels mean roughly half as many inter-cabinet lock joints and jumper cables — which is faster load-in, fewer failure points and a smaller truck. The IP65 front-and-rear rating means a sudden shower does not end the show.
Paired with the half-arc lock and fast locks, the AF1000 lets a small outdoor crew strike a large wall in a shift.
Core Technologies of the Aeroframe AF1000
Large Format: 0.5 m² per Cabinet
Each 500×1000 mm cabinet covers 0.5 m². A large stage wall needs half the cabinets, locks and cables of a 500×500 mm build — faster rigging and fewer points of failure.
IP65 Waterproof, Front & Rear
The outdoor AF1000 is IP65 rated front and rear — dust-tight and protected against water jets from any direction — for wet-weather festival and event use, not just covered stages.
High-Precision Half-Arc Lock for Straight + Curved

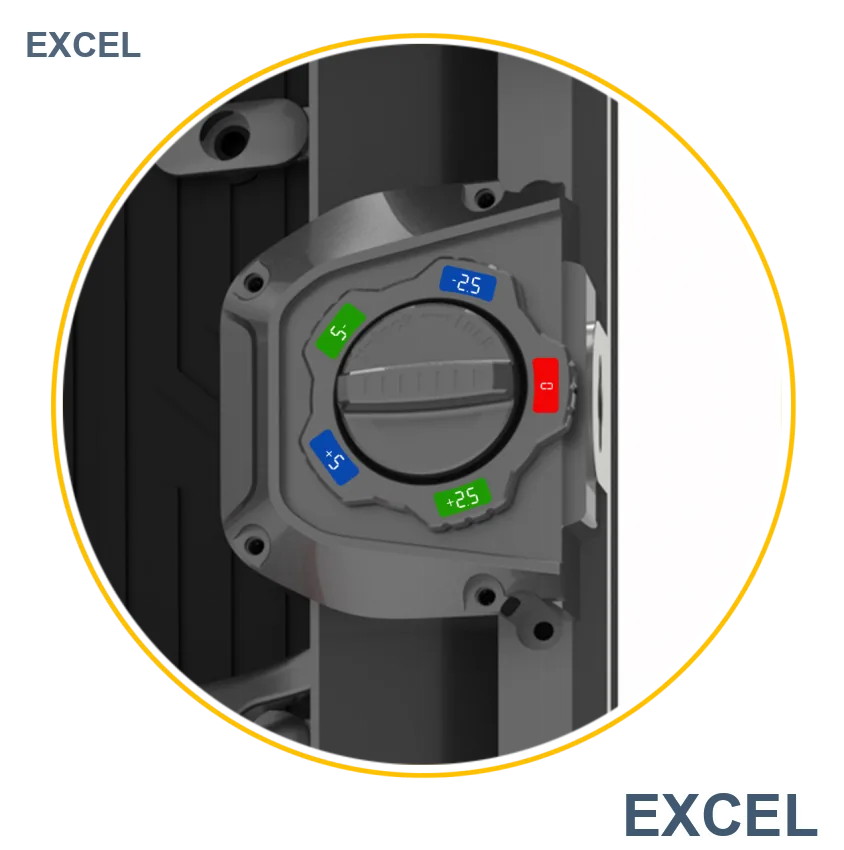

The half-arc lock is compatible with straight and arc configurations, with adjustable angles of -5° / -2.5° / 0° / +2.5° / +5°. One cabinet family covers flat backdrops and gentle curves.
Fast Lock: Fewer Lock Points per Square Metre

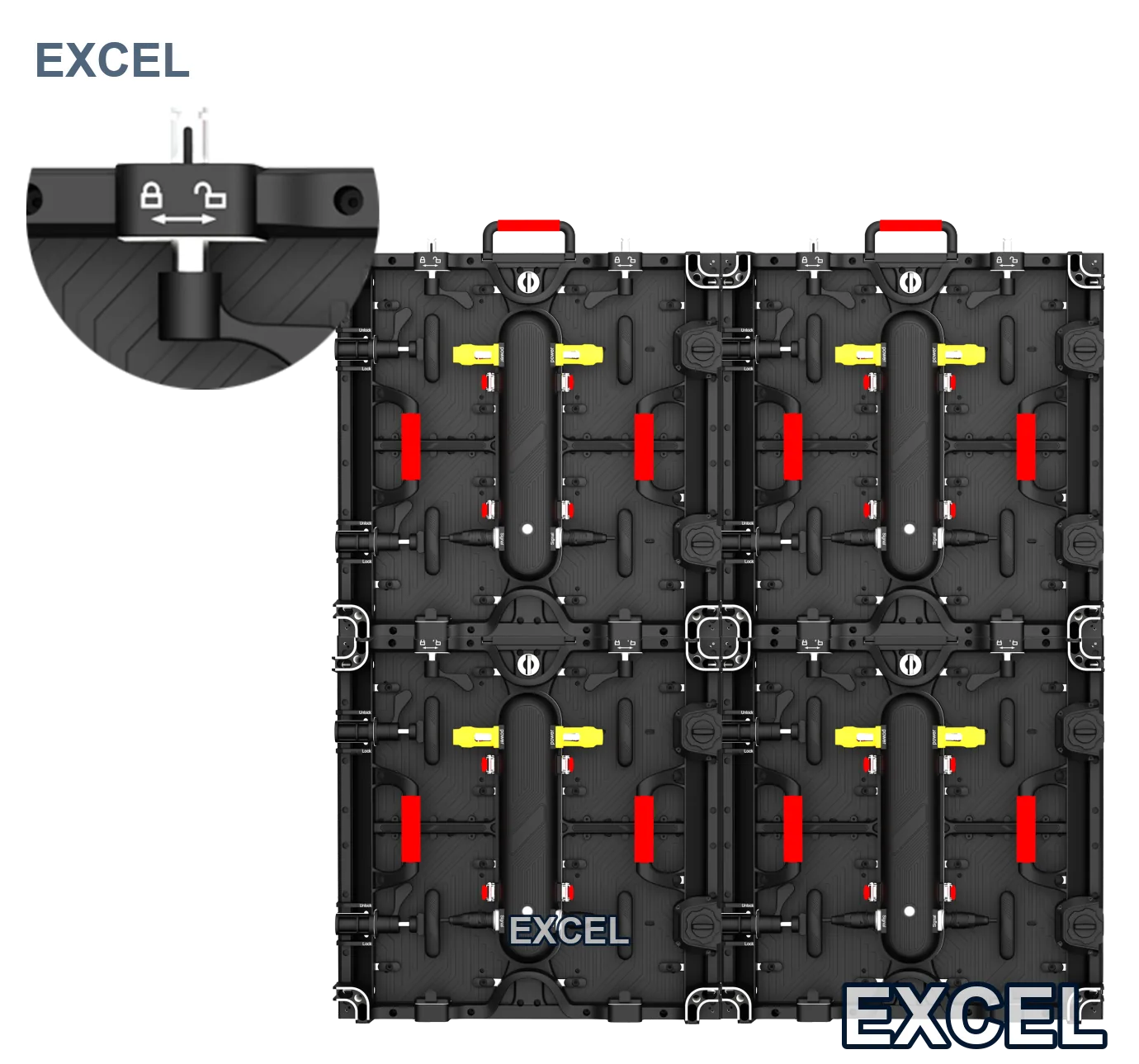

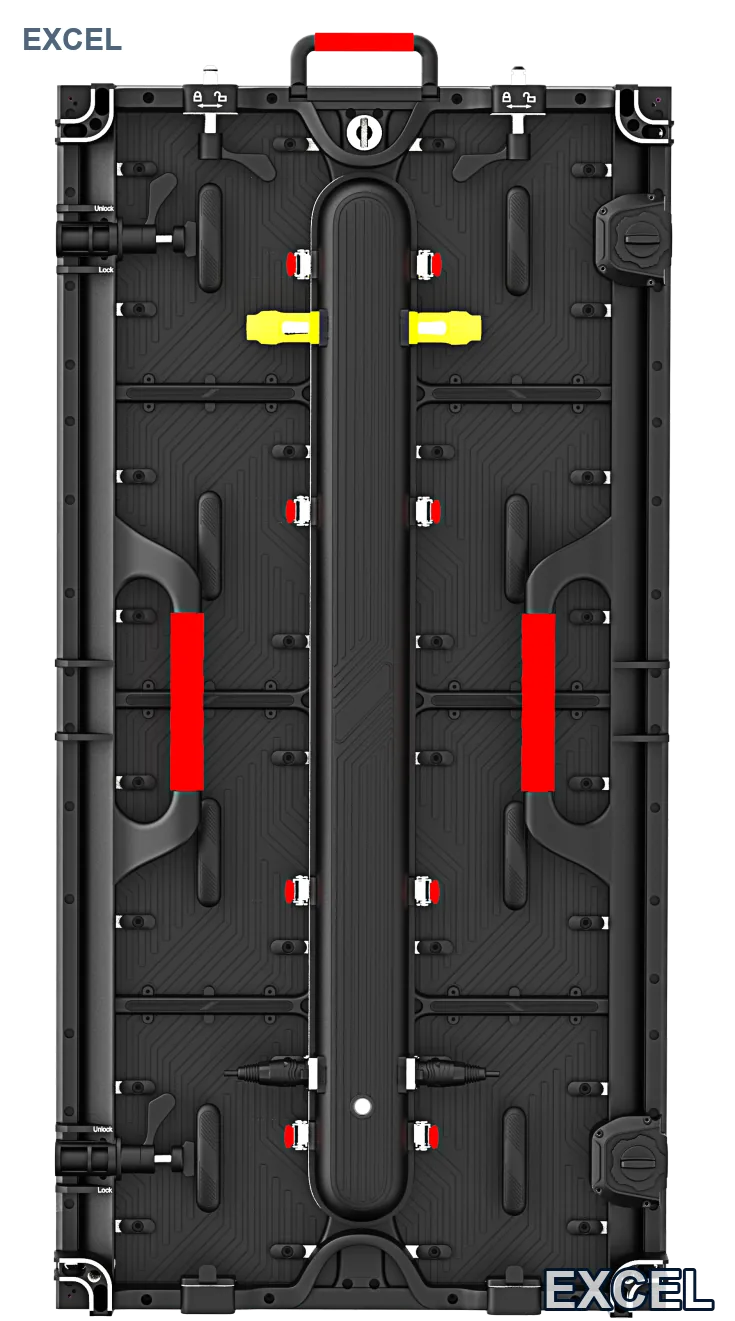

A high-performance travel lock with better load-bearing capacity and flatness. Because each 500×1000 mm panel covers 0.5 m², the same wall takes half the panels a 500×500 mm build needs, and therefore roughly half as many inter-cabinet lock joints. The lock clicks panels together without tools.
Light & Strong: Die-Cast Aluminum at 14.5 kg

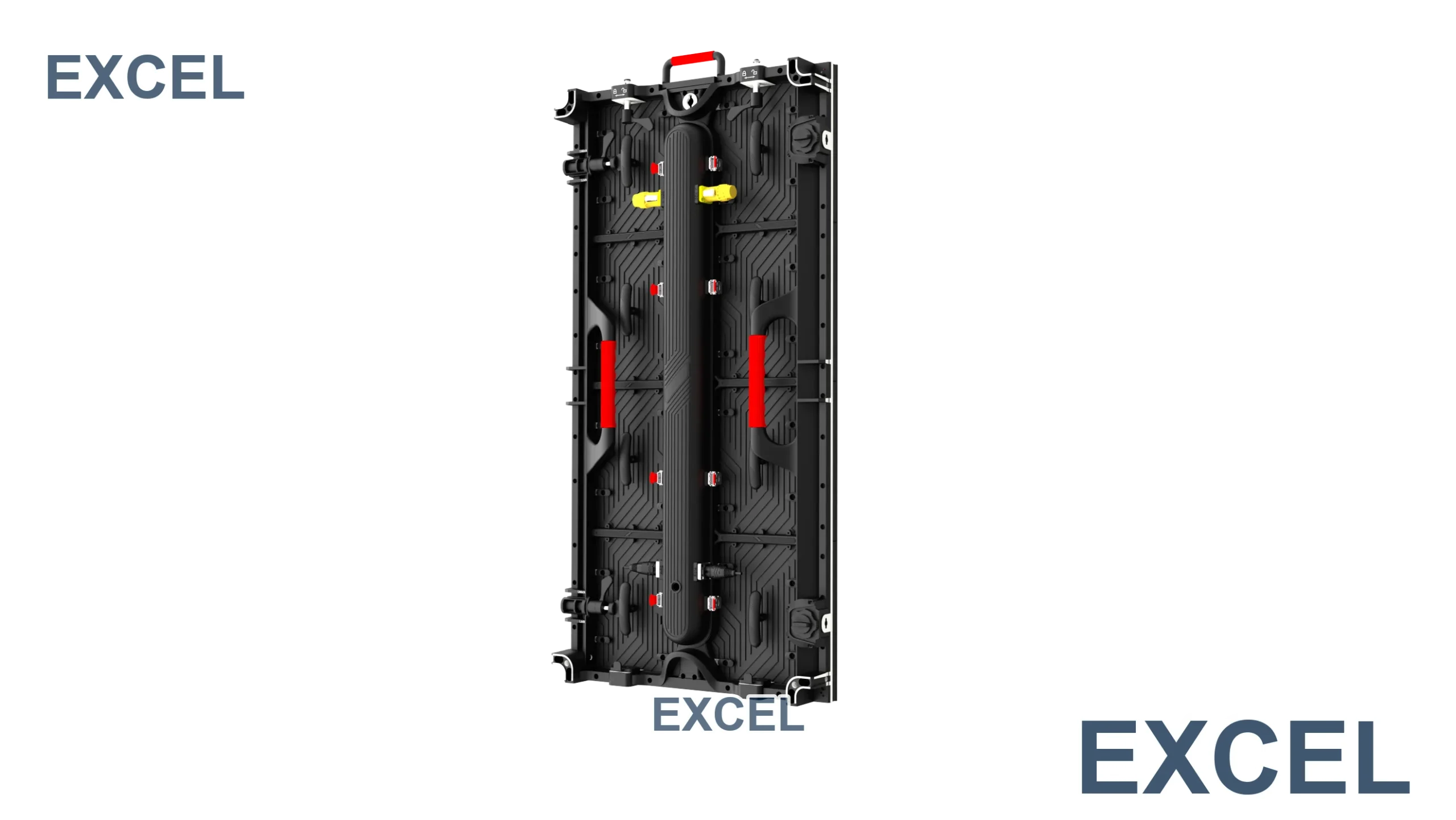

For a half-square-metre panel, 14.5 kg is light. The die-cast aluminum body holds flatness over thousands of load-ins, so seams stay straight on big walls and panels stay true.

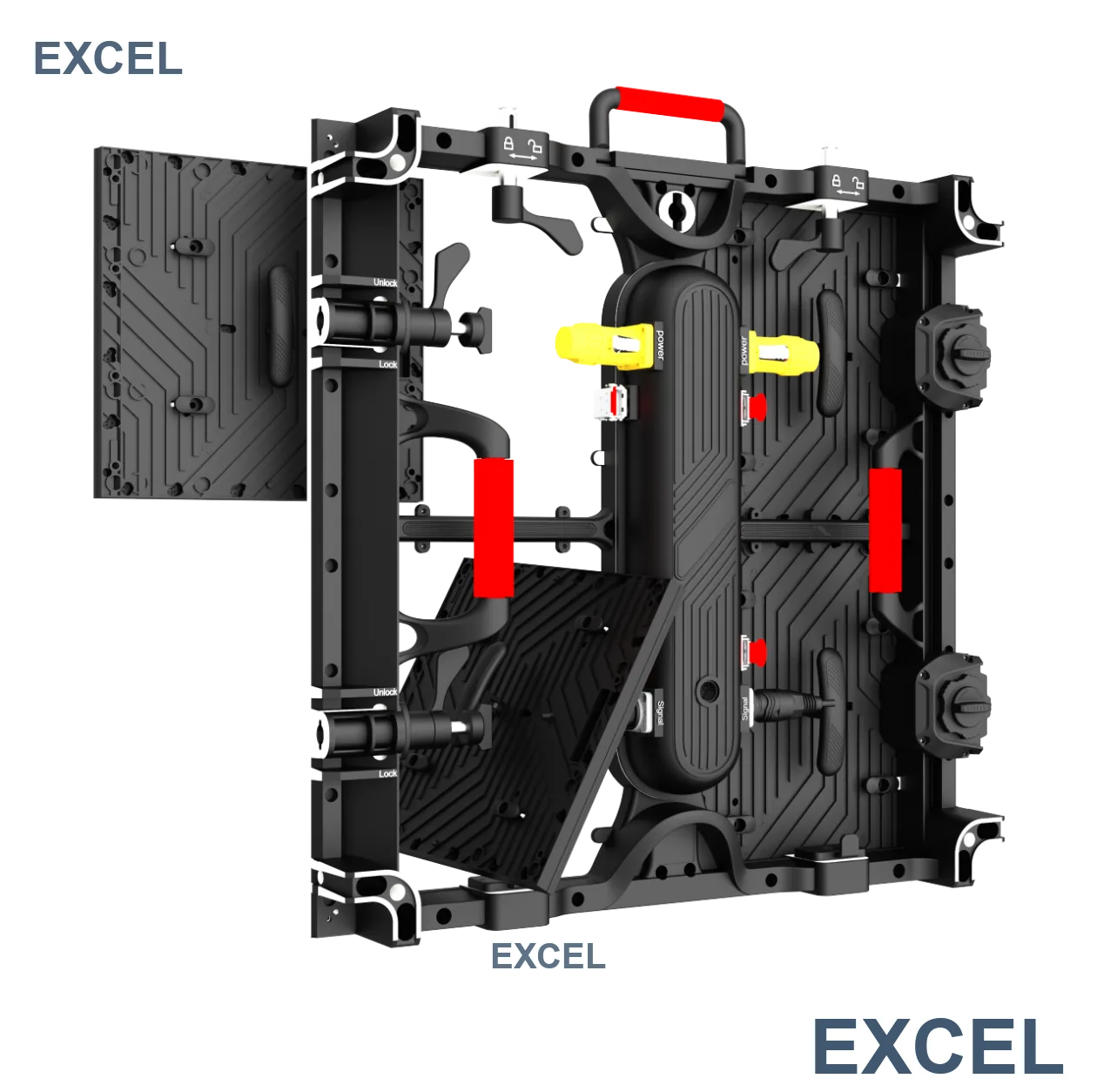

Front & Rear Dual Maintenance
Quick module replacement from the front or the rear in different installation situations — on a truss or against a wall, crews reach the failing module and are back live in seconds.
Installing the Aeroframe AF1000 Rental LED Display: Rigging, Power & Signal

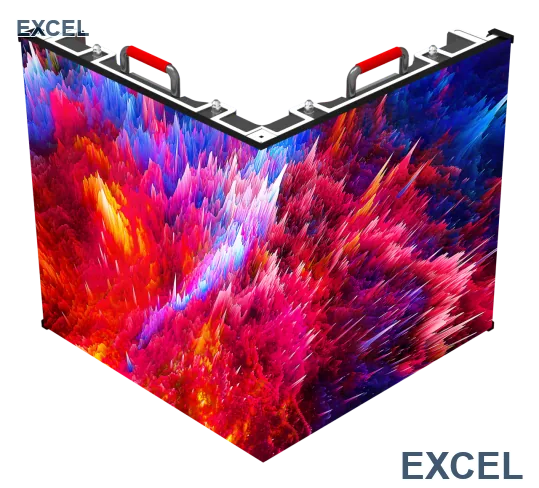

The AF1000 supports lifting, seat mounting, cylindrical, curved and right-angle configurations. Because each cabinet is 0.5 m², plan the wall in fewer, larger rows and lock panels top-down. Whether you are pricing a single Aeroframe AF1000 wall for one event or a touring fleet, that row-and-column plan is what sets the cabinet count, the freight weight and the crew hours.
- Rigging — hang the truss or ground-support frame, then lift and lock each 14.5 kg cabinet; the half-arc lock sets straight or any of the five arc angles before tightening.
- Power — the outdoor AF1000 draws a maximum of 800 W/m² and averages 200–300 W/m². Breaker and circuit sizing depends on the pitch, the chain length and the local electrical code; our engineers confirm the final distribution plan with you.
- Signal — the receiving-card model and count are confirmed against your pitch, scan mode and cabinet layout before quotation; cabinets daisy-chain and the last panel terminates. Mixing AF1000 and AF500 in one wall follows the same vertical interlock; confirm the power and signal layout of the mixed array with our engineers before ordering.
Aeroframe AF1000 Compatibility & Control
Control platform is specified per project: the Aeroframe AF1000 is configured on an industry-standard control system, so it works with the processor and sending-card stock you already run instead of requiring a proprietary system. What is confirmed and what still needs checking against your configuration is listed below.
| Category | Compatible | Notes |
|---|---|---|
| Cabinet interlock | Aeroframe AF1000 ↔ AF500 (vertical) | Interlocks vertically; mix sizes in one wall (confirm your mix with our engineers). |
| Module | 250×250 mm | Shared across the Aeroframe pitch range. |
| Control system | Industry-standard control system — brand and model confirmed per project | We confirm the exact receiving card, sending card and firmware revision against your pixel count and scan mode before quotation. |
| Cabinet sealing | Indoor IP31 / outdoor IP65 (front & rear) | IP65 is defined by IEC 60529 as dust-tight and protected against water jets. Indoor cabinets are IP31 and are not for wet use. |
| Power input | AC90-264V, 47-63Hz | Wide-range input; size distribution per pitch. |
Control-system compatibility for the AF1000 depends on pixel count, scan mode and firmware revision. Because each cabinet covers 0.5 m², a single 500×1000 mm panel carries more pixels than a 500×500 mm one at the same pitch, so we confirm the card and processor against your actual array before quotation.
Aeroframe AF1000 vs AF500: Which Rental Cabinet?
| Feature | Aeroframe AF1000 | Aeroframe AF500 |
|---|---|---|
| Cabinet Size | 500×1000×84 mm | 500×500×84 mm |
| Weight | 14.5 kg | 8 kg |
| Coverage per cabinet | 0.5 m² | 0.25 m² |
| Indoor pitch range | P2.976–P4.81 | P1.25–P4.81 (GOB on fine pitch) |
| Outdoor pitch range | P2.604–P5.95 (IP65) | P2.604–P5.95 (IP65) |
| Best for | Large outdoor spans, big event backdrops | Fine-pitch indoor, XR, curved creative |
Choose the AF1000 when area and weather-resistance decide the job — large outdoor stages, festivals and broadcast backdrops. Choose the AF500 when you need the finest indoor resolution or a curved creative wall. The two interlock, so you can mix them in a single screen.
Get Your Aeroframe AF1000 Quote & Configuration
Tell us your screen size, viewing distance, and indoor/outdoor use — we’ll reply with a configured quotation and lead time.
Ideal Use Cases for the Aeroframe AF1000
Large-Format Concert & Festival
0.5 m² per cabinet and IP65 waterproofing cover big outdoor stages with fewer panels and no weather worry.
Large Venue, Broadcast & Stage
In outdoor configurations, 4500–5000 nits holds up under daylight, and the 3840–7680Hz refresh supports broadcast and live camera work.
Outdoor Events in Wet Weather
IP65 front and rear means a sudden shower does not end the show — built for festivals that run rain or shine.

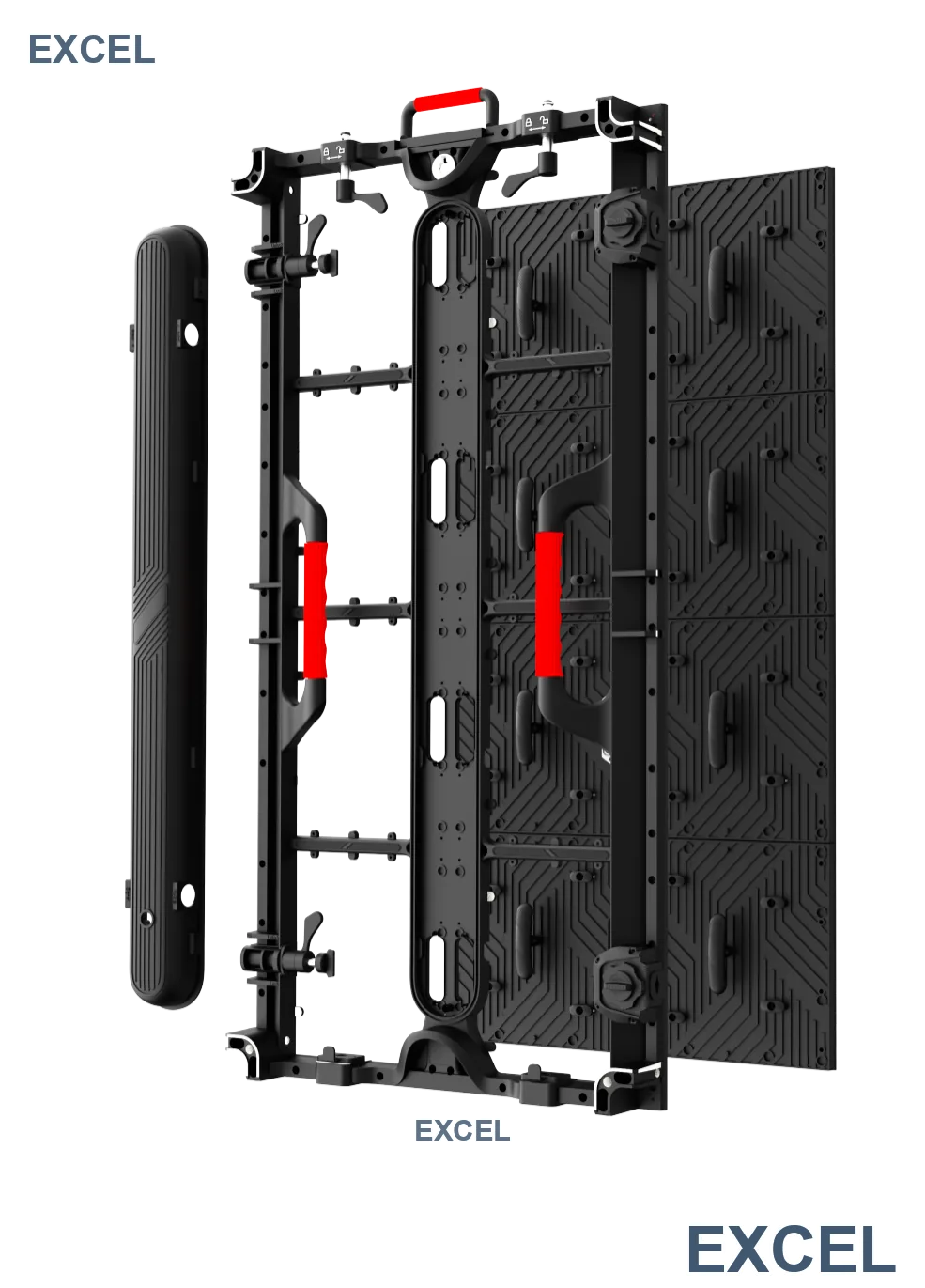

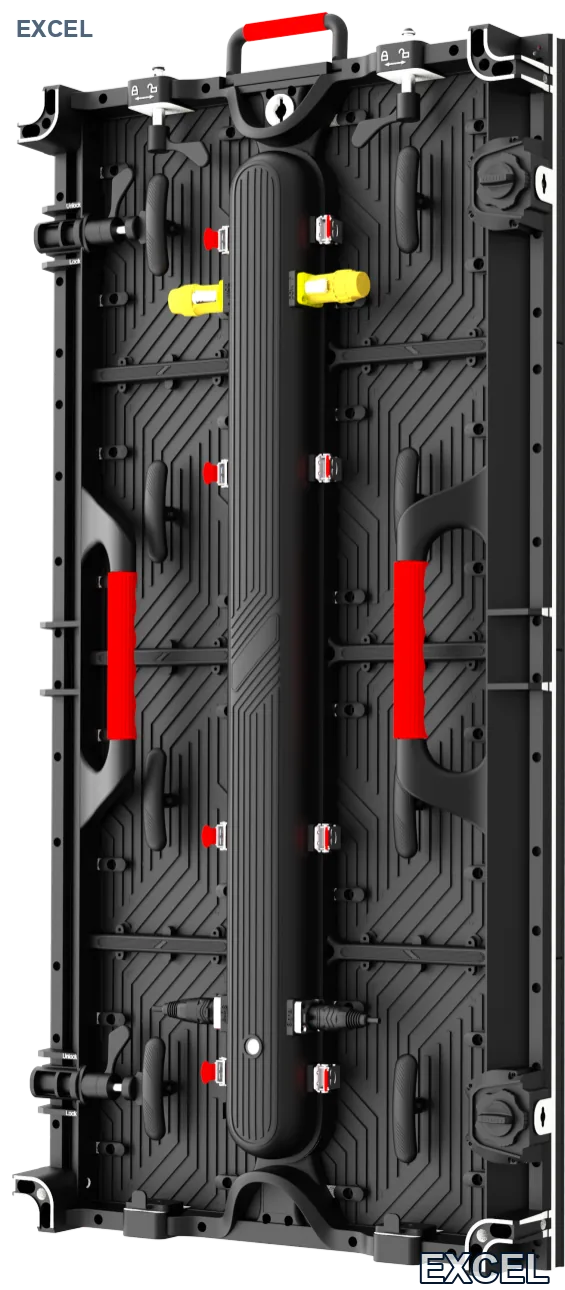

Aeroframe AF1000 Cabinet Construction
Aeroframe AF1000 Specifications: Indoor IP31 and Outdoor IP65
Both AF1000 variants share the same 500×1000×84 mm cabinet, 250×250 mm module and control platform; what changes is the LED type, brightness, scan mode and IP rating. Indoor models run IP31; outdoor models run IP65 front and rear for wet-weather use.
Indoor Specifications (IP31, P2.976–P4.81)
| Feature | P2.976 | P3.91 | P4.81 |
|---|---|---|---|
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| LED Type | SMD1515 | SMD2020 | SMD2020 |
| Module Resolution | 84×84 | 64×64 | 52×52 |
| Cabinet Resolution | 168×336 | 128×256 | 104×208 |
| Physical Density (dots/m²) | 112896 | 65536 | 43264 |
| Brightness | ≥800 nits | ≥1000 nits | ≥1000 nits |
| Viewing Distance | 6–200 m | 4–100 m | 4–100 m |
| Scan Mode | 1/28 | 1/16 | 1/13 |
| Module Size | 250×250 mm | ||
| Module Quantity | 2×4 per cabinet | ||
| Cabinet Size | 500×1000×84 mm | ||
| Cabinet Weight | 14.5 kg | ||
| Cabinet Material | Die-cast Aluminum | ||
| Viewing Angle (H/V) | 160° / 160° | ||
| Contrast Ratio | 15000 : 1 | ||
| Frame Frequency | 50/60 Hz | ||
| Grey Scale | 12–16 bit (optional) | ||
| Refresh Rate | 3840–7680 Hz | ||
| Color Temperature | 5000–12000 K (optional) | ||
| IP Rating | IP31 | ||
| Power (Max/Avg) | 600 / 200–300 W/m² | ||
| Power Input | AC90–264V, 47–63Hz | ||
| Working Temp / Humidity | -20–60 °C / 10%–85% RH | ||
| Storage Temp / Humidity | -20–60 °C / 10%–85% RH | ||
| Maintenance | Front / Rear | ||
| Standard | CCC / CE / RoHS / FCC / CB / TUV / IEC | ||
Source: Excel LED R3 series product specification sheet (internal document). Parameters are for preliminary reference and may be updated due to continuous product iteration.
Outdoor Specifications (IP65, P2.604–P5.95)
| Feature | P2.604 | P2.976 | P3.91 | P4.81 | P5.95 |
|---|---|---|---|---|---|
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm | 5.95mm |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
| Module Resolution | 96×96 | 84×84 | 64×64 | 52×52 | 42×42 |
| Cabinet Resolution | 192×384 | 168×336 | 128×256 | 104×208 | 84×168 |
| Physical Density (dots/m²) | 147456 | 112896 | 65536 | 43264 | 28224 |
| Brightness | ≥4500 nits | ≥4500 nits | ≥5000 nits | ≥5000 nits | ≥5000 nits |
| Viewing Distance | 3–50 m | 3–100 m | 4–150 m | 4–150 m | 6–200 m |
| Scan Mode | 1/32 | 1/28 | 1/16 | 1/13 | 1/7 |
| Module Size | 250×250 mm | ||||
| Module Quantity | 2×4 per cabinet | ||||
| Cabinet Size | 500×1000×84 mm | ||||
| Cabinet Weight | 14.5 kg | ||||
| Cabinet Material | Die-cast Aluminum | ||||
| Viewing Angle (H/V) | 160° / 160° | ||||
| Contrast Ratio | 15000 : 1 | ||||
| Frame Frequency | 50/60 Hz | ||||
| Grey Scale | 12–16 bit (optional) | ||||
| Refresh Rate | 3840–7680 Hz | ||||
| Color Temperature | 5000–12000 K (optional) | ||||
| IP Rating | IP65 (front & rear) | ||||
| Power (Max/Avg) | 800 / 200–300 W/m² | ||||
| Power Input | AC90–264V, 47–63Hz | ||||
| Working Temp / Humidity | -20–60 °C / 10%–85% RH | ||||
| Storage Temp / Humidity | -20–60 °C / 10%–85% RH | ||||
| Maintenance | Front / Rear | ||||
| Standard | CCC / CE / RoHS / FCC / CB / TUV / IEC | ||||
Outdoor AF1000 is IP65 front and rear — dust-tight and protected against water jets from any direction — for wet-weather festival and event use. Source: Excel LED R3 series product specification sheet (internal document).
