Why the MB400S Replaces a Sending Controller Plus a Separate Video Source

An irregular LED screen needs two things a plain sending controller does not provide: a content source that understands non-rectangular canvases, and a drive stage that partitions them efficiently. The MB400S is Mooncell’s way of delivering both without the usual two-box stack — an 8-core processor running Android 7.1 with H.265 hardware decoding sits in the same 193×139×33 mm box as the sending stage, so a sphere or ring wall plays its loop with no computer, no external player and no second power point.

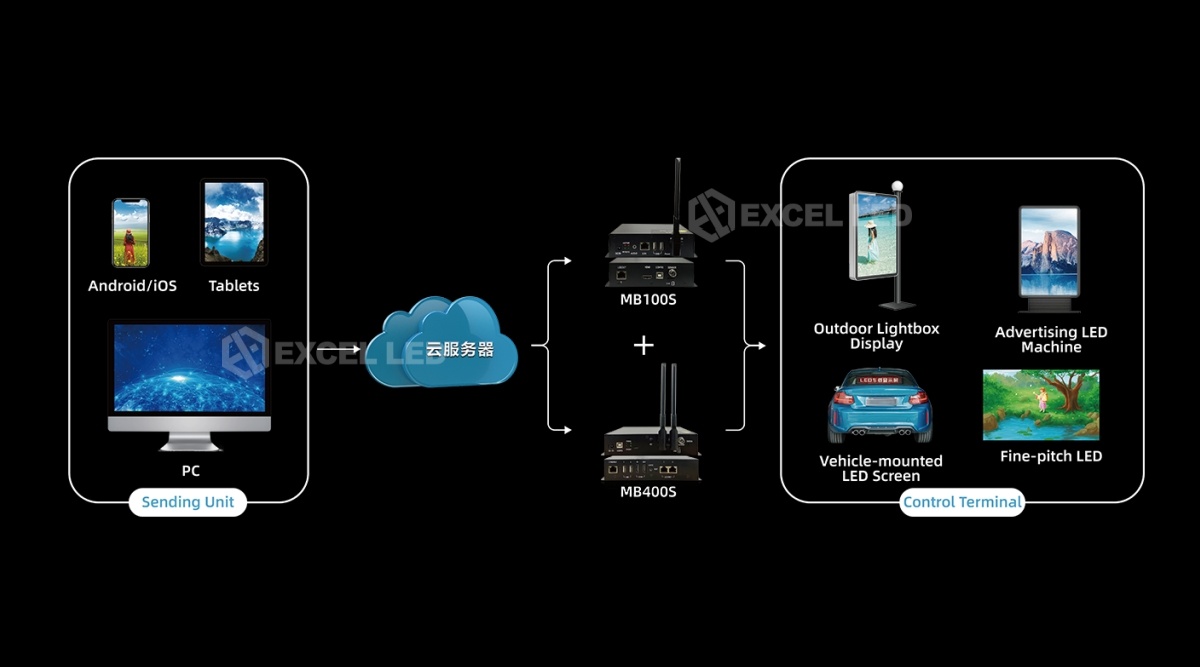

That fusion changes the project math. Content updates travel as files — over the cloud platform, the LAN, or a USB stick plugged in on site — instead of a technician rebuilding a PC source. The HDMI input with loop-out keeps a synchronous path available: switch the unit to synchronous mode and it behaves as a conventional sending stage fed by a switcher or media server, passing the signal through to the next device.

What the MB400S Plays: 4K H.265 Content, Partitions and True-Color Overlay

Creative screens live on layered content — a video across the sphere, a caption crawling over the top, a logo in the corner. The MB400S engine partitions the canvas as you wish: windows can be sized and positioned freely, overlaid on each other, with video, image and TXT playing together and superposed on the video in transparent, semi-transparent or opaque modes via true-color OSD. Playback covers common video, audio and image formats, plus single-line, static and multi-line TXT; RTC keeps clock and date content honest.

Automatic Brightness and Environmental Sensing on the MB400S

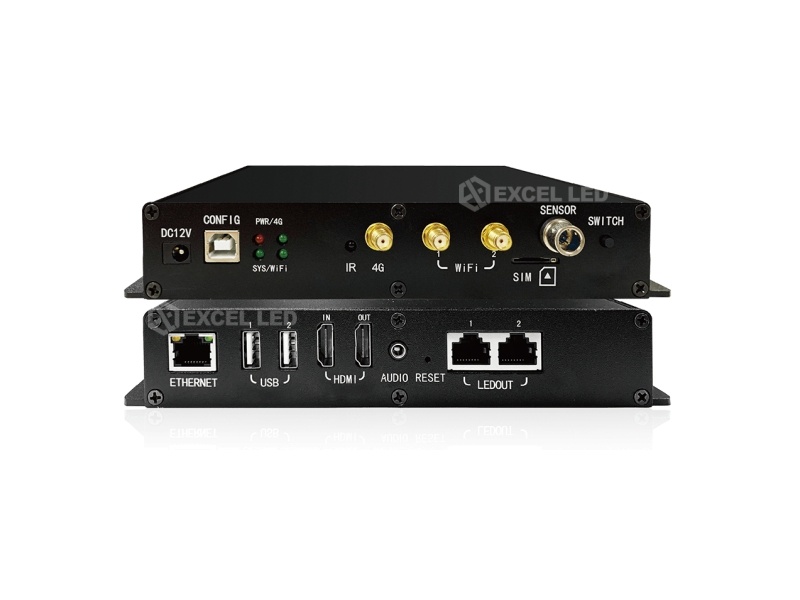

Retail spheres run from opening to closing, and their brightness must follow the day without staff touching a screen. The MB400S adjusts screen brightness automatically based on time or ambient light — the front-panel light-sensing probe interface connects the probe, and the RS485 sensor interface monitors environmental parameters such as temperature, humidity and brightness for walls whose surroundings matter to the venue’s systems.

Schedule discipline is built into the same controller: timed playback and timing power on/off match the wall to trading hours, NTP precise timing keeps the schedule honest, and the RTC clock covers power-on moments before the network settles. All of it runs on 15 W rated power across a −20 to 60 °C working range — the low-power, wide-temperature profile that lets the compact box live inside the sphere structure rather than in a conditioned rack room.

Program Scheduling and Offline Playback Management for the MB400S

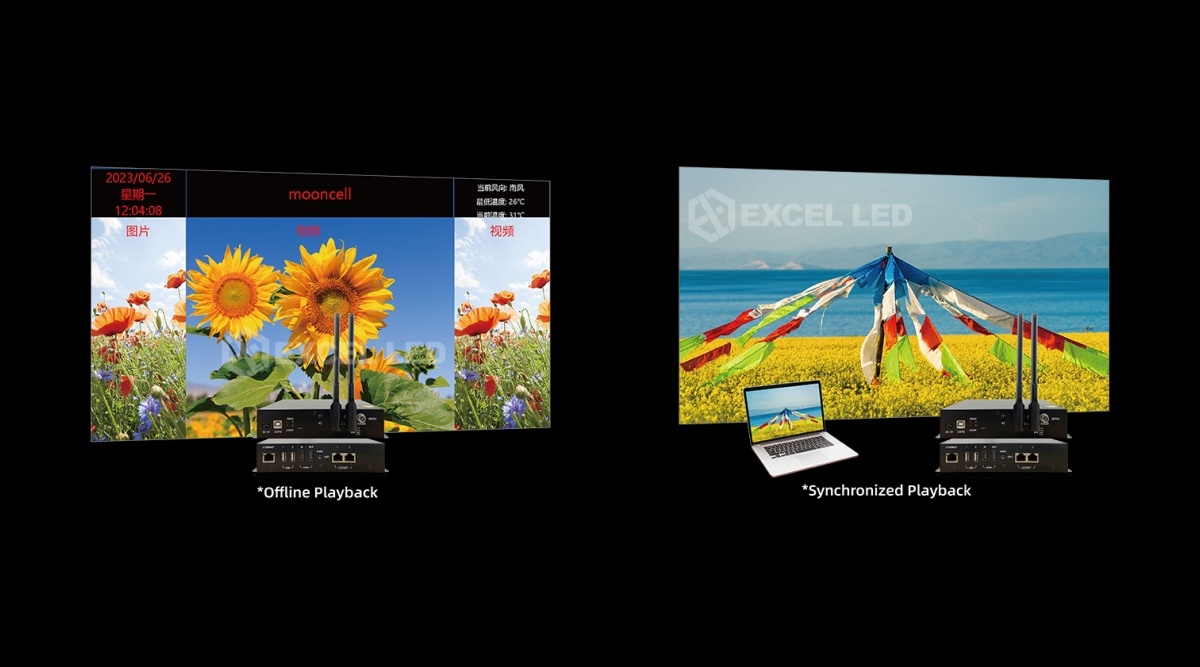

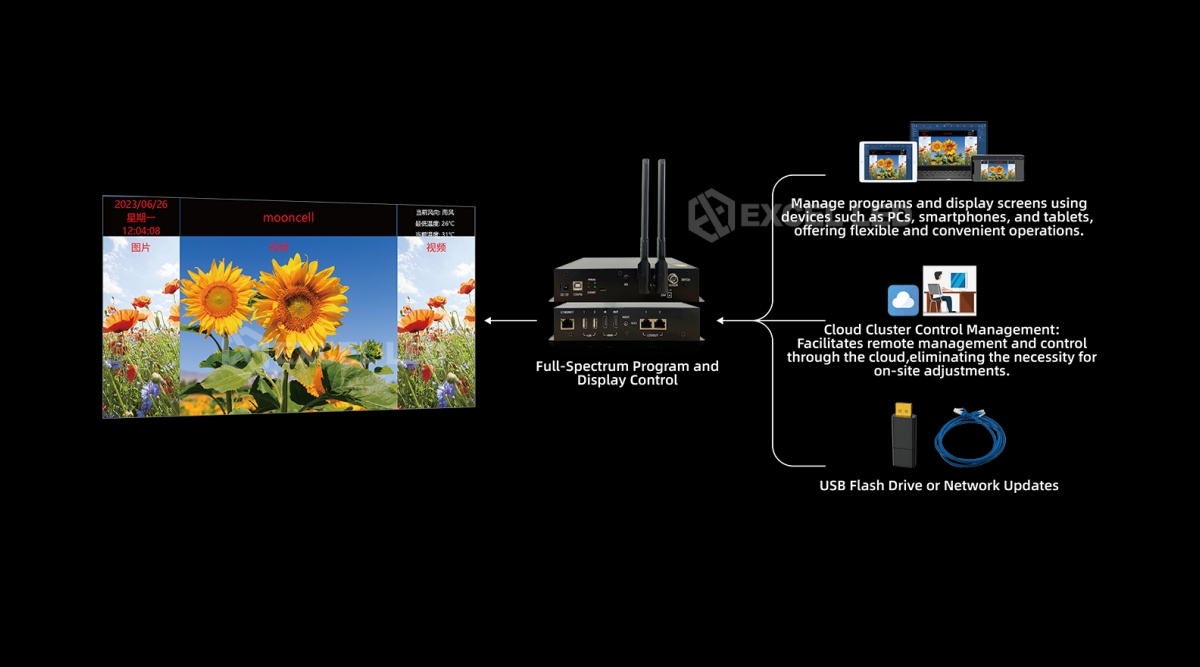

Day-to-day operations live in the management software: build the program, schedule it, push it. The management software interface covers program scheduling, playback control and synchronized playback across the fleet — and when a site has no network at all, the USB flash drive path updates programs plug-and-play style: carry the content to the wall, plug it in, and the unit takes the update.

MB400S vs B1200S: Integrated Player vs Pure Sphere Sending Controller

The two irregular-display controllers in Mooncell’s line solve different halves of the problem. Specs follow the published sheets; the buying decision is about content source, not just pixels.

Related pages: B1200S sphere LED controller · MTB400E sending controller · MVB4S Pro 2-in-1 processor. Unsure which box a wall needs? Send the canvas size and content plan and we’ll recommend the configuration.

MB400S Buying Guide: 5 Checks Before You Choose a Player-Controller

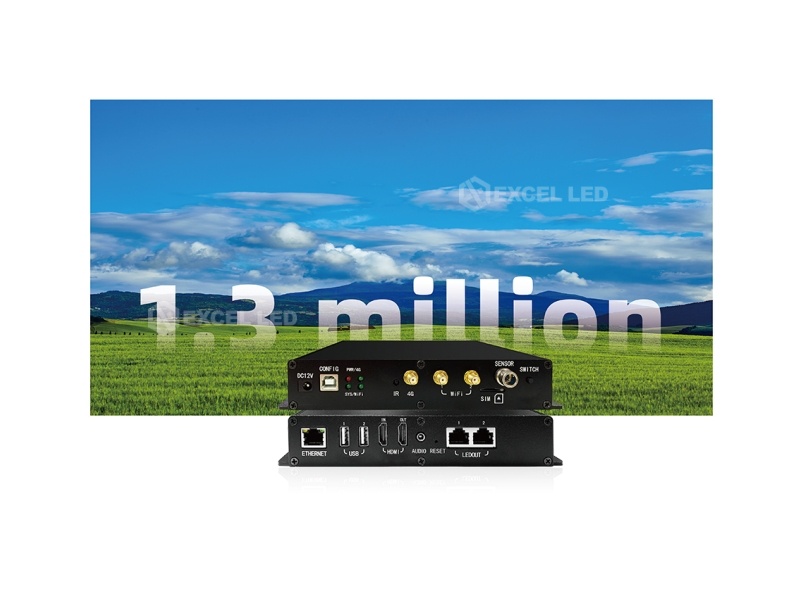

1. Size the load against the canvas. Total pixels must sit under 1.3M, with the screen’s widest row under 3,840 and tallest column under 2,160. Unfolded sphere drawings over that belong on the B1200S — don’t stretch one box past its drive.
2. Decide who feeds content. Pure loop = asynchronous playback, files over cloud/LAN/USB. Live events = synchronous mode needs the HDMI IN feed and loop-out path. If live switching between several sources is the core job, a video processor belongs upstream.
3. Choose the network plan per site. LAN where it exists, Wi-Fi station where it doesn’t, hotspot for commissioning, and the optional 4G module where no venue network will ever reach the wall — match the connectivity to the site before quoting.
4. Specify the fleet workflow. Multi-location buyers should confirm the cloud cluster platform and app accounts cover their region and content-review flow — the controller is only as fast as the deployment workflow around it.
5. Verify receiving cards and 3D/sync ambitions. The unit drives Mooncell receiving cards; if the project later wants active 3D or Genlock on the same irregular wall, that belongs to the B1200S-class controller — spec the sending stage for the future, not just the launch content.

Price and Cost Factors

MB400S pricing depends on quantity, the optional 4G module kit, and the fleet management seats that go with multi-wall projects. The honest comparison for budget is the two-box alternative — a sending controller plus an industrial player, two power supplies, two mounts — against this single unit plus its power adapter; on slim irregular walls the all-in-one usually wins on hardware and install labor before the cloud savings.
