Concert LED Screen — Types, Specifications & Rental Guide from China Manufacturer
A concert LED screen transforms live performances into unforgettable visual experiences. Whether producing a 500-person club show, a 10,000-seat arena concert LED display, or a multi-stage outdoor festival LED screen, the right stage LED panel system delivers brightness, resolution, and reliability that traditional projection cannot match. As a factory-direct LED screen manufacturer with projects across the USA, UK, Germany, UAE, and Australia, this comprehensive concert LED screen guide covers everything from pixel pitch selection and indoor/outdoor stage LED display specs to rental vs. purchase ROI — backed by real factory data and global project experience. The same direct-view advantage is now reshaping cinemas — read how Onyx LED cinema screens compare to IMAX projection.
What is a Concert LED Screen?
A concert LED screen is a large-format modular stage LED display system purpose-built for live music events, touring productions, and festival stages. Unlike fixed commercial digital signage, concert LED video walls are engineered for rapid assembly, touring durability, and camera-friendly visual performance — critical for IMAG (Image Magnification) and live broadcast.

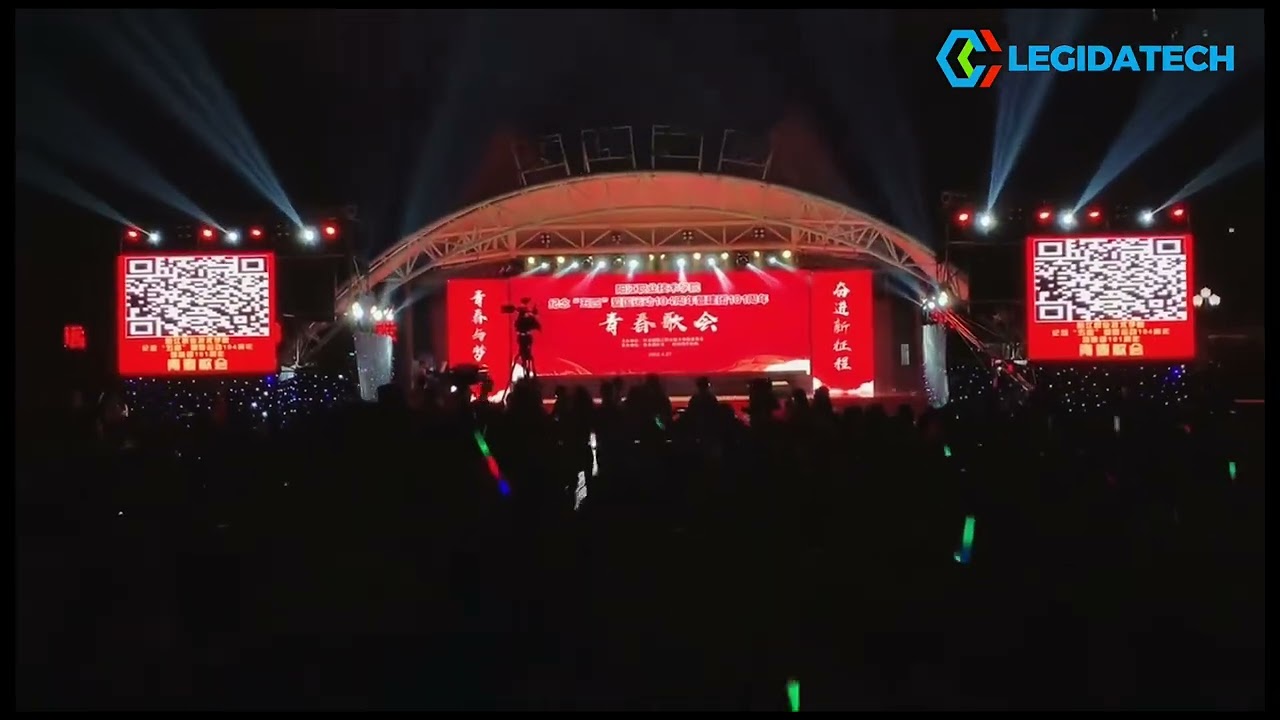

A professional concert LED display setup integrates three stage LED screen types:
| Screen Type | Position | Function |
|---|---|---|
| Main Stage Backdrop | Behind performers, center stage | Displays programmed visuals, motion graphics, live camera feeds |
| IMAG Side Screens | Stage left/right flanks | Magnifies performer close-ups for distant audience (IMAG = Image Magnification) |
| LED Floor Panels | Stage floor surface | Interactive visuals with motion-triggered effects; anti-slip, load-rated for performers |
The core advantage of a concert LED video wall over traditional projection: superior brightness that overpowers stage lighting, modular scalability from 10 m² to 500+ m², and seamless bezel-free拼接. Whether you need an indoor rental LED display for a theater concert or an outdoor rental LED display for a summer festival, modular stage LED panels deliver consistent performance across any venue scale.
Types of Concert LED Screens
Modern concert productions blend multiple LED screen types to create depth and visual impact. Understanding each type helps production companies and LED display suppliers specify the right concert LED wall configuration for any venue.
1. Main Stage Backdrop LED Screen
The visual centerpiece spanning 10-30m behind performers. Uses lightweight 500×500mm or 500×1000mm rental LED display cabinets. P2.6-P3.9 pitch for indoor arenas, P3.9-P4.8 for outdoor concert LED screen stages. Supports curved configurations for creative stage designs. Explore concert LED display solutions with full customization from our China factory.
2. IMAG Side Screen (Image Magnification)
Positioned stage-left and stage-right for live camera feeds. Essential for arenas and stadiums where 70%+ of the audience cannot see performers directly. Typically P2.9-P4.8, 3×4m to 6×8m per side. The concert LED screen’s IMAG function is critical for audience engagement in large venues.
3. LED Floor Panel
Interactive stage LED panel surface with motion-reactive visuals. Load capacity ≥1500 kg/m² with anti-slip coating. Common P3.91-P6.25 pitch. Must withstand performer foot traffic and equipment loads during concert LED display performances.
4. Curved LED Screen
Concave, convex, or 360° wrap-around stage LED screens creating immersive environments. Achieved through angle-adjustable cabinet connectors (±15° per pair). Panoramic visuals for headline acts — a growing trend in concert LED video wall design.
5. Transparent LED Screen
50-80% transparency mesh LED panels layering visuals in front of lighting rigs. Creates floating hologram-like effects. Popular for award shows and high-budget concert LED display productions.
6. Outdoor Festival LED Screen
High-brightness ≥4,500 nits, IP65-rated outdoor concert LED screens for music festivals. Must withstand rain, dust, and direct sunlight. Typically P3.91-P6.25 on ground-support or scaffold with wind-load engineering. Our outdoor LED display supplier solutions include IP65 dual-use panels for year-round rental fleets.
7. Mobile LED Trailer Screen
Self-contained concert LED screen on a trailer for touring. Deploys in under 30 minutes. Common: 4×2.5m to 7×4m. Ideal for small outdoor concerts, community events, and one-day festivals.
8. Church Concert LED Screen
Fixed-installation LED displays for worship venues hosting contemporary concert-style services. P1.9-P2.9 indoor with front-service access. Integrated with broadcast cameras for live-streaming — a growing application for indoor concert LED walls.
Key Specifications for Concert LED Screens
Six technical parameters determine the performance of any concert LED screen. Understanding pixel pitch, brightness nits, refresh rate, and IP rating ensures your stage LED display investment delivers professional results.
Pixel Pitch (P1.9 ~ P6.6) — The Sharpness Control
| Pixel Pitch | Min Viewing Distance | Best For |
|---|---|---|
| P1.9-P2.6 | 2-5m | Premium indoor concerts, VIP viewing, broadcast close-ups |
| P2.6-P3.9 | 4-8m | Indoor arenas, IMAG side screens, standard concert backdrops |
| P3.9-P4.8 | 6-12m | Outdoor festivals, large stadium backdrops, distant IMAG |
| P4.8-P6.6 | 8-20m | Very large outdoor venues, billboard-distance stages |
Rule of thumb: minimum comfortable viewing distance (m) ≈ pixel pitch (mm) × 1.5. The industry-standard P3.91 rental LED display delivers sharp visuals from ~6m, covering ~90% of concert LED screen applications. For indoor concert LED walls with front-row at 3m, move to P2.6 or tighter.
Brightness (Nits) — Indoor vs Outdoor
| Environment | Required Brightness | Typical Panel |
|---|---|---|
| Indoor concert (dark venue) | 800-1,200 nits | P2.6/P2.9 at 1,000 nits |
| Indoor concert (bright venue) | 1,200-1,500 nits | P2.9/P3.9 at 1,200 nits |
| Outdoor evening concert | 2,000-4,500 nits | P3.9 at 4,500 nits |
| Outdoor daytime festival | 4,500-6,500 nits | P4.8 at 6,000 nits |
Indoor concert LED displays operate in controlled lighting — stage lights are directional, so 1,000-1,500 nits suffices. Outdoor concert LED screens demand 4,500+ nits for daylight legibility. Premium dual-use panels offer automatic brightness adjustment for day-to-night festival transitions.
Refresh Rate — Camera-Friendly Visuals
| Refresh Rate | Application |
|---|---|
| 1,920Hz | Entry-level — visible flicker on camera, NOT recommended for concerts |
| 3,840Hz | Professional standard — clean on broadcast/DSLR cameras |
| 7,680Hz | Premium — flicker-free for high-speed/slow-motion cameras, XR production |
Minimum for any concert LED screen: 3,840Hz. This is the single most critical spec for IMAG and live broadcast. At 1,920Hz, cameras capture visible scan lines. Concert LED display rental panels (P2.6-P4.8) must support 3,840Hz as standard, controlled by NovaStar receiving cards with PWM driver IC.
IP Rating, Cabinet Weight & Viewing Angle
| Parameter | Indoor Concert | Outdoor Festival |
|---|---|---|
| IP Rating | IP30-IP40 | IP65 front + IP54 rear (min) |
| Cabinet Weight | 6-8 kg (500×500mm) | 7-9 kg (reinforced) |
| Viewing Angle | ≥140° H / ≥120° V | ≥140° H / ≥120° V |
| Contrast Ratio | ≥5,000:1 | ≥5,000:1 |

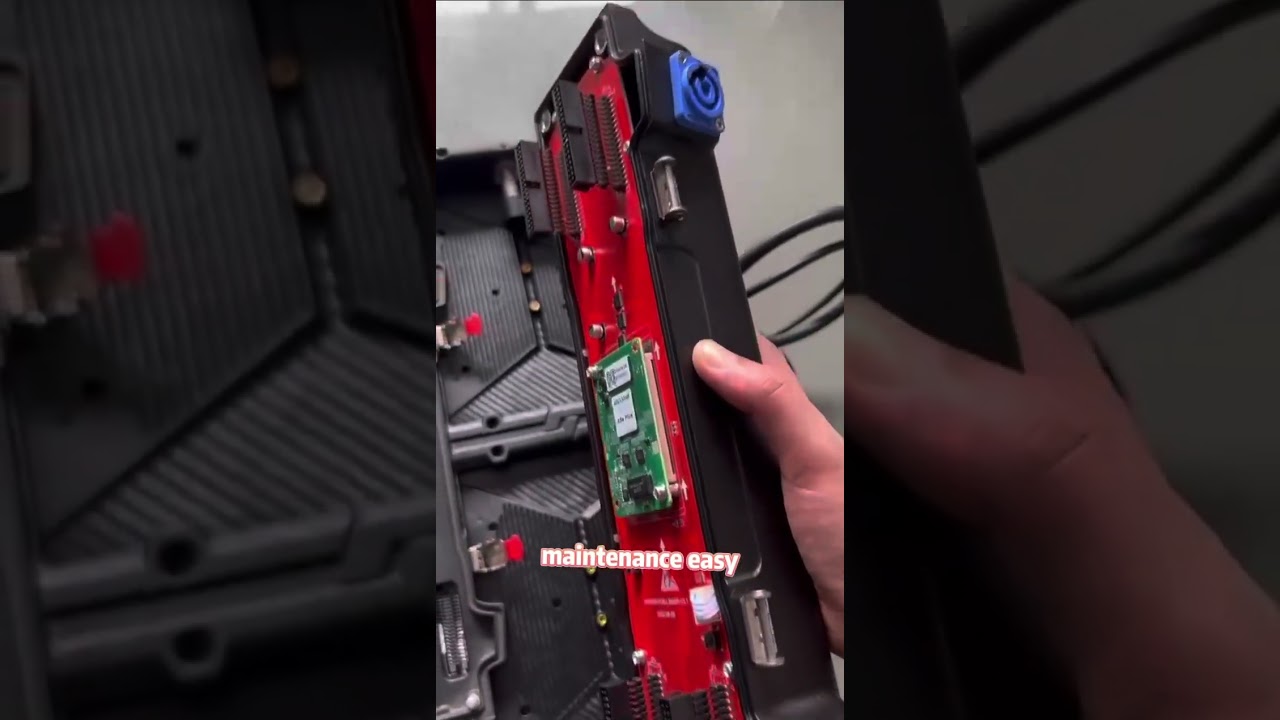

Die-cast aluminum rental LED cabinets with quick-lock mechanisms enable ~30-second per-panel assembly. Front+rear service access is non-negotiable for concert LED screen setups — technicians need to swap modules mid-show if needed.
Indoor vs Outdoor Concert LED Screen — Complete Comparison
| Dimension | Indoor Concert LED Screen | Outdoor Festival LED Display |
|---|---|---|
| Brightness | 1,000-1,500 nits | 4,500-6,500 nits |
| IP Rating | IP30-IP40 | IP65 front + IP54 rear |
| Recommended Pitch | P1.9-P3.9 | P3.9-P6.6 |
| Cabinet Weight | 6-8 kg | 7-9 kg (reinforced) |
| Setup Structure | Truss or ground stack | Scaffold + wind bracing |
| Power | Standard venue | Generator, weatherproof distribution |
| Concert LED Screen Cost (buy/sqm) | $400-$900 | $500-$1,000 |
| Stage LED Wall Price (rent/sqm/day) | $30-$60 | $50-$100 |
Concert LED screen vs projection — the key advantage: LED delivers 5-10× higher brightness with no washout from stage lighting. Dual-use IP65 panels (5,000+ nits, adjustable brightness) let rental companies serve both indoor and outdoor gigs from one inventory, optimizing concert LED display cost efficiency.
Concert LED Screen Size & Configuration Guide — Three Reference Setups
Every concert LED screen project is unique. Below are three battle-tested stage LED display configurations based on audience scale — a resource no competitor provides, built from our global project experience across USA, Germany, UAE, and Philippines venues.
Small Concert (500-2,000 attendees) — Club, Theater, Church
| Component | Recommendation | Concert LED Screen Cost |
|---|---|---|
| Main Backdrop | 6×3m (18 m²), P2.9 indoor | $45-90/day rental |
| IMAG Side ×2 | 2×3m (6 m²)×2, P2.9 | $15-30/day each |
| LED Floor (optional) | 3×2m (6 m²), P3.91 | $30-60/day |
| Control System | NovaStar VX4S | Included |
Medium Concert (2,000-10,000) — Arena, Festival, Touring
| Component | Recommendation | Stage LED Wall Price |
|---|---|---|
| Main Backdrop | 14×7m (98 m²), P3.9 indoor/outdoor | $80-140/m²/day |
| IMAG Side ×2 | 5×4m (20 m²)×2, P3.9 | Included |
| LED Floor | 8×4m (32 m²), P3.91 | $50-90/m²/day |
| Control | NovaStar MCTRL4K + VX1000 | Included |
For medium-scale concert LED screen productions, our LED screen for events solutions balance impact and budget. See our rental LED display selection guide.
Large Concert (10,000+) — Stadium, Major Festival
| Component | Recommendation | Est. Concert LED Screen Cost |
|---|---|---|
| Main Backdrop | 24×12m (288 m²), P4.8 hybrid | Custom quote |
| IMAG Side ×2 | 8×6m (48 m²)×2, P4.8 | Custom quote |
| LED Floor | 16×8m (128 m²), P4.8+P6.25 | Custom quote |
| Additional | Delay towers, FOH, backstage monitors | Variable |
| Control System | Full NovaStar 4K + backup | Included |
Concert LED Screen Rental vs Purchase — ROI Decision Guide
| Factor | Rent Concert LED Screen | Buy Concert LED Display |
|---|---|---|
| Best for | One-off events, irregular schedule | 40+ touring days/year, permanent venue |
| Upfront Cost | $30-$140/m²/day | $400-$1,200/m² |
| Break-even | — | ~10-15 rental days |
| Maintenance | Included | ~5-8%/year self-managed |
| Tech Refresh | Access newest panels | Upgrade every 3-5 years |
Rule of thumb: <10 events/year = rent. 40+ days/year or permanent install = buy. Check our LED display rental price guide for regional concert LED display rental price comparisons.
How to Choose the Right Concert LED Screen — 4-Step Selection Method
Step 1: Determine Venue & Audience Size → Screen Area
Screen height = 1/6 to 1/10 of distance to furthest audience member. For a concert LED screen serving 5,000 attendees with furthest seat at 50m, minimum screen height = 5m. This fundamental stage LED display sizing rule prevents undersized screens that disappoint audiences.
Step 2: Indoor vs Outdoor → IP Rating & Brightness
Indoor concert LED wall: IP30-40, 1,000-1,500 nits. Outdoor concert LED display: IP65, 4,500+ nits. Dual-use IP65 panels cover both scenarios — the preferred LED display supplier strategy for rental fleets.
Step 3: Viewing Distance → Pixel Pitch
Minimum viewing distance (m) ≈ pixel pitch (mm) × 1.5. Front row at 4m? Choose P2.6 or tighter for your concert LED video wall. This is where P2.6 vs P3.9 concert screen decision matters: tighter pitch costs more but delivers clarity for close audiences.
Step 4: Usage Frequency → Rent vs Buy
Less than 10 shows/year = rent a concert LED screen. Touring 40+ days/year or permanent install = buy. Break-even analysis in our rental LED display guide.
Concert LED Screen Cost & Price Guide — Factory-Direct Data
Purchase Price (China Factory Direct, USD/sqm)
| Pixel Pitch | Indoor Concert LED Screen | Outdoor Concert LED Display |
|---|---|---|
| P1.9 | $800-$1,200 | — |
| P2.6 | $500-$800 | — |
| P2.9 | $400-$700 | $700-$1,000 |
| P3.9 | $350-$550 | $550-$850 |
| P4.8 | $300-$450 | $450-$700 |
| P6.6 | — | $300-$500 |
Stage LED Wall Rental Price (USD/sqm/day, excl. transport & crew)
| Pixel Pitch | Indoor Concert | Outdoor Festival |
|---|---|---|
| P1.9-P2.6 | $50-$90 | — |
| P2.9-P3.9 | $35-$70 | $50-$100 |
| P4.8+ | — | $40-$80 |
Concert LED Display Cost Breakdown by Component
| Component | % of Cost | Key Insight |
|---|---|---|
| LED Lamp (Nationstar/Kinglight/Nichia) | 30-40% | #1 cost & quality driver |
| PCB Board | 10-15% | Multi-layer, high-precision |
| Driver IC (PWM, refresh rate) | 8-12% | Determines 3840Hz+ capability |
| Power Supply (Mean Well) | 5-8% | Efficiency impacts operating cost |
| Cabinet (Die-cast Aluminum) | 10-15% | Tooling amortized across production |
| Control System (NovaStar) | 5-10% | Receiving card + hub board |
| Labor & QC | 10-15% | 72h aging + calibration |
Key insight: LED lamp brand is the #1 cost and quality differentiator for any concert LED screen. Nationstar (mid-range, best value for touring) vs Nichia (premium, 2-3× cost, cinema-grade color) explains most quote variation. As a professional LED screen manufacturer, we provide transparent BOM-level pricing — ask any LED display supplier for this breakdown and compare.
Concert LED Screen Installation & Setup — 6-Step Professional Process

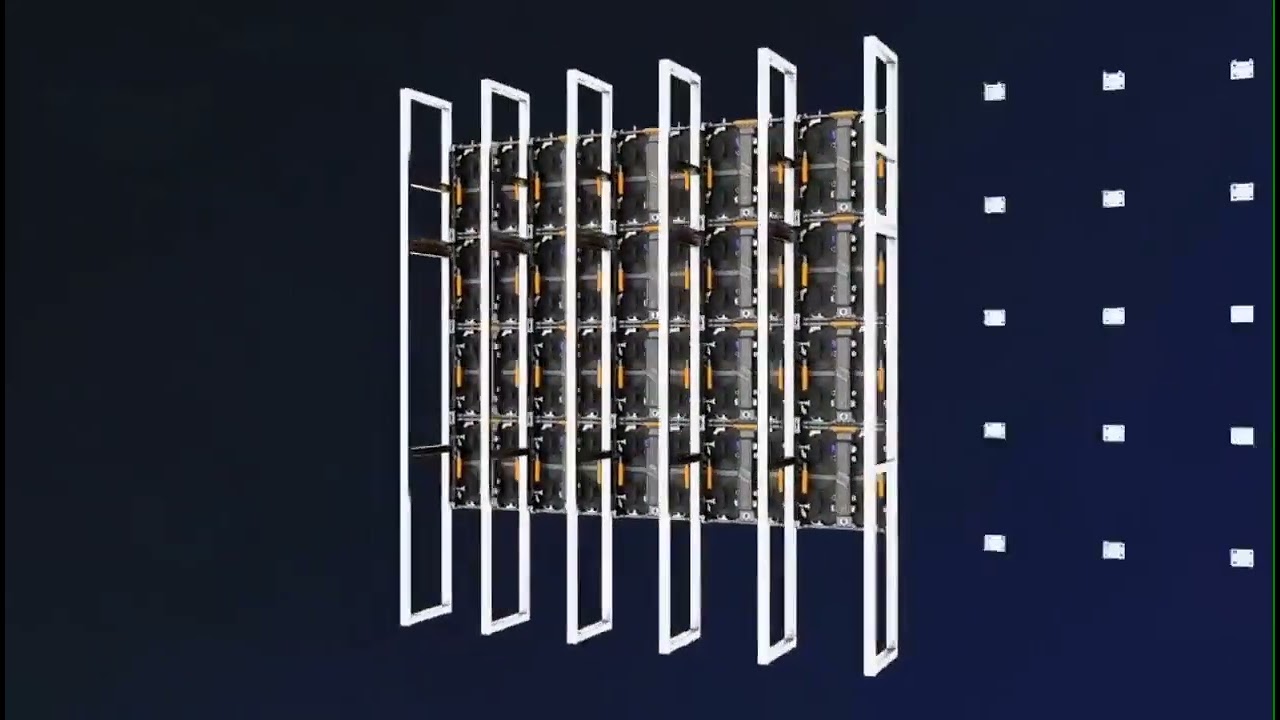

Step 1: Structural Foundation (2-4h) — Erect truss/ground-support with engineer-certified load calculations. Outdoor concert LED screen installations require wind-load engineering and ballast.
Step 2: Cabinet Assembly (3-6h) — Mount stage LED panels row by row. Quick-lock mechanisms: ~30s per cabinet. Alignment pins ensure pixel-perfect seams. See our rental LED display installation guide.
Step 3: Power & Data Cabling (1-2h) — One power supply per 4-6 LED cabinets. Ethernet daisy-chain, one cable per 10-15 cabinets. Redundant power loops for critical concert LED display shows.
Step 4: NovaStar Control Configuration (30-60min) — Configure sending box, map receiving cards to positions, load calibration data from our rental LED calibration guide. Set brightness and color temperature for the venue.
Step 5: Content Mapping & Testing (1-2h) — Map video to full canvas, test all inputs (camera feeds, media servers, backup), verify color consistency, run test patterns.
Step 6: Show Readiness (30min) — Verify locks, redundant paths, backup power/UPS, IMAG feed with stage lighting, crew emergency procedure review.
Concert LED Screen Transportation & Touring Protection
Touring stage LED displays endure punishing transport cycles. Proper protection is the difference between 10-year panel lifespan and damage on the second tour.
- Flight Cases: 9-12mm plywood, aluminum trim, steel ball corners. 4-6 cabinets (500×500mm) per case. Custom-cut high-density foam inserts.
- Truck (regional tours): Hours-2 days, $0.50-$2/km. Dedicated truck-pack design, stackable 3-4 high.
- Air Freight (international tours): 1-5 days, $2-$5/kg. Add moisture-barrier bags + desiccant.
- Sea Freight (advance planning): 20-45 days, $200-$500/m³. Vacuum-sealed packaging with humidity indicators.
- Spare Kit: 3-5% spare modules + 2-3 spare power supplies + 2-3 spare receiving cards + 5+ spare data cables. Pre-configured backup NovaStar sending box.
Concert LED Screen Emergency Troubleshooting — 5 Live-Show Scenarios
| Problem | Likely Cause | Fast Fix for Concert LED Display |
|---|---|---|
| Complete blackout | Power failure / sending box crash | Check main breaker → verify sending box LED → swap to backup sending box (pre-configured hot-spare) |
| Partial blackout | Single cabinet power loss / data cable | Identify first dark cabinet in chain → check power/data cable → swap module if single module dark |
| Flickering/flashing | Refresh rate mismatch / ground loop | Verify 3,840Hz setting matches panel → check grounds → isolate video source by source |
| Color mismatch | Calibration lost / panel replaced | Reload calibration file → if new panel, apply batch calibration from factory |
| Rain exposure (outdoor) | Unexpected weather | Cover exposed LED cabinets → reduce brightness to minimum → check IP65 seals → dehumidifier overnight |
Concert LED Screen Project Case Studies — Global Installations
Manila Arena Concert Tour — 8,000 Attendees (Philippines)
Concert LED screen configuration: 18×6m P3.9 main backdrop (108 m²) + 4×3m P2.9 IMAG ×2 (24 m²) + 6×4m P3.91 LED floor (24 m²). Challenge: 2-day setup between tour stops. Solution: Pre-rigged truss with cabinets pre-mounted, flown as single units — setup time reduced 40%.
Dubai Outdoor Music Festival — 15,000 Attendees (UAE)
Outdoor concert LED screen configuration: 24×8m P4.8 backdrop (192 m²) + 6×4m P3.9 IMAG ×2 (48 m²). Challenge: 45°C ambient, direct sun, sand dust. Solution: 6,500-nit IP65 front+rear panels, active ventilation, pre-event connector dust-sealing.
Texas Church Concert Series — 2,000 Weekly (USA)
Indoor concert LED wall configuration: 10×4m P2.6 backdrop (40 m²) + 3×2.5m P2.6 IMAG ×2 (15 m²). Challenge: Broadcast-quality livestream IMAG. Solution: 3,840Hz refresh, genlocked broadcast cameras, Rec.709 color calibration.
Berlin Electronic Music Festival — 5,000 Attendees (Germany)
Stage LED display: 12×5m P3.9 curved backdrop (60 m², 150° concave arc) + transparent P3.9-7.8 mesh over DJ booth (60% transparency). Solution: Angle-adjustable cabinets (±10° per pair) with layered depth effect.
Factory Quality Control — Concert LED Screen Manufacturing Standards
- Incoming LED Lamp Testing: Brightness uniformity ±5%, color binning ≤2-step MacAdam, dead-pixel ≤5 PPM per batch
- SMT Assembly: High-speed placement + 3D SPI + AOI on every PCB
- 72-Hour Module Aging: Full white, 50% brightness, 25°C. Failure rate must be ≤0.1% per batch
- Cabinet Calibration: ±3% brightness uniformity target, D65 white point. Every cabinet photographed under test patterns
- IP65 Waterproof Verification: 12.5mm nozzle, 12.5 L/min, 3-minute spray from 3m at all angles
- 24-Hour Final System Test: Continuous video playback with automated pixel monitoring. Zero failures at shipment
Certifications: CE (EMC + LVD) · FCC Part 15 · RoHS 2.0 · ISO 9001:2015 · EN 60950-1
Frequently Asked Questions — Concert LED Screen
Q1: What pixel pitch do I need for a concert LED screen?
For indoor concert LED screens with front-row viewing at 3-5m, P2.6-P2.9 is standard. For outdoor festival LED displays at 6-12m, P3.9-P4.8 works well. Use the 1.5× rule: minimum viewing distance (m) ≈ pixel pitch (mm) × 1.5. A P3.9 stage LED panel looks sharp from ~6m. Front row at 3m? Move to P2.6 or tighter.
Q2: How much does a concert LED screen cost?
Concert LED screen cost ranges $300-$1,200/sqm purchase, depending on pixel pitch, indoor/outdoor rating, and LED brand (Nationstar vs Nichia). Stage LED wall rental price: $30-$140/sqm/day. A mid-size P3.9 backdrop (50-100 m²) costs $17,500-$55,000 to purchase or $1,750-$7,000/day to rent. Get factory-direct concert LED display quotes for transparent pricing with full BOM disclosure.
Q3: What brightness for outdoor concert LED screen?
Minimum 4,500 nits for evening outdoor concert LED displays. Daytime festivals with direct sun: 5,500-6,500 nits. Verify sustained brightness, not peak — many panels advertise 5,000 nits but sustain only 3,500 nits after thermal throttling. Premium LED screen manufacturer panels with Mean Well power supplies maintain rated brightness longer.
Q4: What refresh rate prevents camera flicker on concert LED screens?
3,840Hz minimum for professional concert LED video wall IMAG and broadcast. At 1,920Hz, DSLR and broadcast cameras capture scan lines. For slow-motion cameras, 7,680Hz is recommended. This is the most overlooked spec when comparing LED display suppliers — always verify the PWM driver IC supports 3,840Hz+ at all brightness levels.
Q5: Rent or buy concert LED screens?
Rent a concert LED screen for <10 events/year or varying specs per show. Buy if touring 40+ days/year or permanent venue install. Break-even on a $50,000 stage LED display investment: ~12-15 rental days. Consider rent vs buy concert LED total cost including maintenance (~5-8%/year), storage, transport, and technology refresh cycles.
Q6: How long to set up a concert LED screen?
Mid-size concert LED display backdrop (50-100 m²): 4-6 hours, 4-6 crew. Large stadium stage LED screen (200+ m²): 1-2 days, 10+ crew. Pre-rigging cabinets onto truss sections before load-in reduces on-site concert LED screen installation time 30-40%.
Q7: What control system for concert LED screen?
NovaStar is the industry standard — MCTRL4K sending box + A5s/A8s receiving cards cover 90% of concert LED video wall configs. Multi-screen with input switching: add VX1000 or VX4S video processor. Always budget a backup sending box as hot-spare. Verify NovaStar concert control compatibility with your AV switcher (Blackmagic ATEM, Barco, etc.).
Q8: How to transport concert LED screens safely?
Use dedicated flight cases with custom-cut foam — never bare cabinets. 4-6 LED panels (500×500mm) per case. Air freight: moisture-barrier bags + desiccant. Sea freight: vacuum-sealed + humidity indicators. Spare kit: 3-5% modules, 2-3 power supplies, 2-3 receiving cards, 5+ data cables, backup NovaStar sending box. Proper touring LED transport extends panel life from 3 years to 10+.
Ready to Power Your Next Concert with Professional LED Screens?
From a 500-person club to a 15,000-seat stadium tour, we engineer concert LED screens that perform flawlessly under stage lights, broadcast cameras, and demanding tour schedules. Factory-direct LED screen manufacturer — USA, UK, Germany, UAE, Australia, Philippines projects delivered. Transparent concert LED display cost breakdown with full BOM disclosure. Custom configuration and pricing within 24 hours.
